Tapered Roofing Roll Forming Machine is fully computerized and specially designed for various widths. It can produce two kinds of products: one is rectangular, and the other is tapered sheet. All you need to do is input the width or the sizes of both ends, and the computer will adjust all rollers to the right position. The adjustment time is around 2-3 minutes without changing rollers.

Technical Data:

Gear/Sprocket driving, 14 stages to form

The machine will be designed in 20GP container

Wall plate frame design, thickness of the wall-plate is 18mm

Rollers manufactured from 45#, CNC lathes, hard Chrome Coated

Diameter of shaft=ф75mm

Main motor =7.5 KW, Frequency speed contr

The shaft will be designed extended longer outside the wall frame

Share the same driven motor with the roll former

When want to produce the taped profile

The taped sheets should be taped slit and cut by anotherslitting machine

14stages to form the profile at each single side

Feed-in piece by piece

Min product length: 2 meters

Double sides form the profile

Rollers manufactured from 45#, CNC lathes, hard Chrome Coated

Share in the same shaft and the driving power of the middle roll former

Whenproduce taped profile, there is no middle ribs

Machine List:

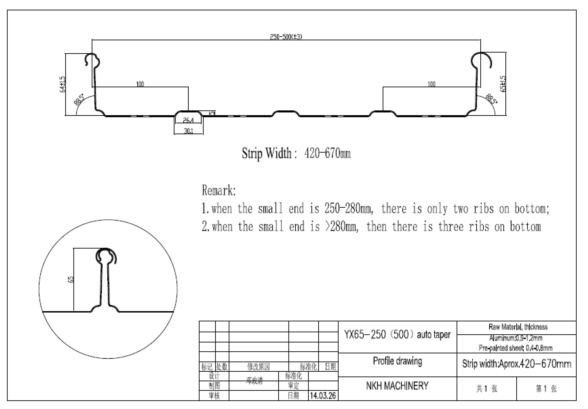

Profile Drawing:

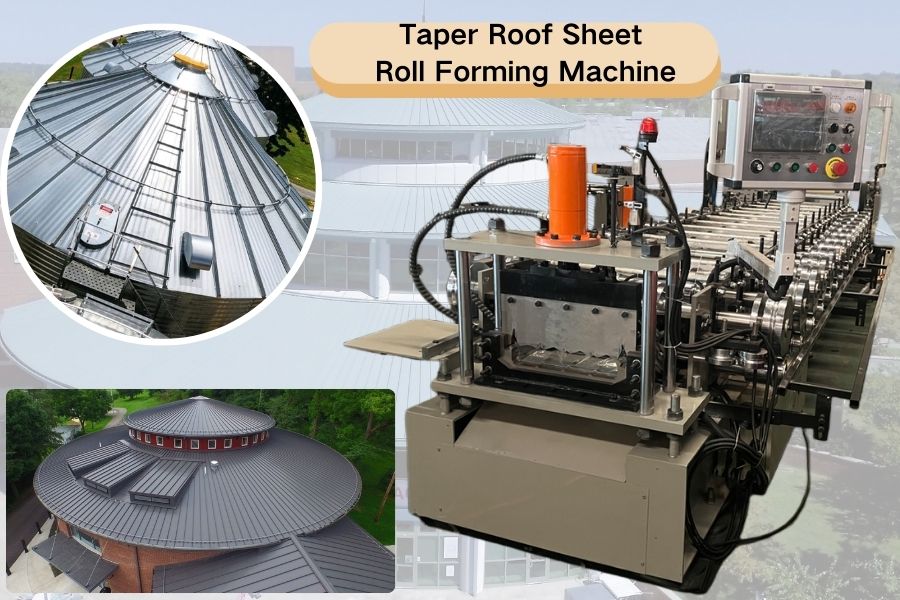

Machine Pictures:

Application:
