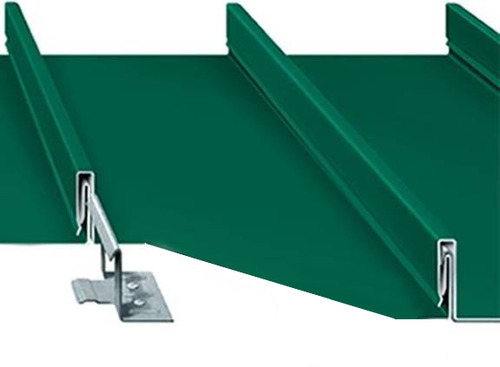

KR18 KR24 are the popular profile drawing in Mexico. The KR-24 jointed sheet is rolled with portable equipment, which facilitates its transfer and installation. Its fixing is hidden by means of clips and its longitudinal overlap can be clipped, this guarantees a low maintenance cost and great impermeability.The KR-24 sheet is of SSR type (Standing Seam Roof) ribbed and jointed on site. The KR-24 Steel Sheet (SSR-24) has a hidden fixing system based on clips, it reduces the risk of possible leaks since it is not required to drill the sheet for its installation. The KR-24 has no limitations in its length since it is manufactured in a single piece from gutter to ridge. It also allows the installation of insulating materials. Hooked Roofs can be installed on roofs with low slopes up to 2%.

This machine is portable, can be with trailor or not, the customer can put the machine on the truck and take the machine to the construction.

Technical Data:

Size: approximately 5.7*1.5*2.5M

 Weight: about 3.0 T

Axle and wheels: two axles, four wheels

Towing: adjustable draw bar height from 80mm-160mm with 80mm round hitch.

Working speed: Forming:10-13 m/min

Material of rollers: Good 45# steel, rigid chrome coated

Material of roller shafts: 45# steel, quenched HRC 58-62

Material of cutting blade: Cr12 steel

Forming station: 11 steps

Power plant：gasoline engine 24HP

Battery:12 Volt DC*2

Drive System: All hydraulic pump with engine

Drive/Forming Rollers: Chain drive

Host big frame structure H Frame

Cutting type: Hydraulic cutting

Manual Decolier：Carrying capacity 5 tons of steel coil

Working procedures: feeding-forming-cutting

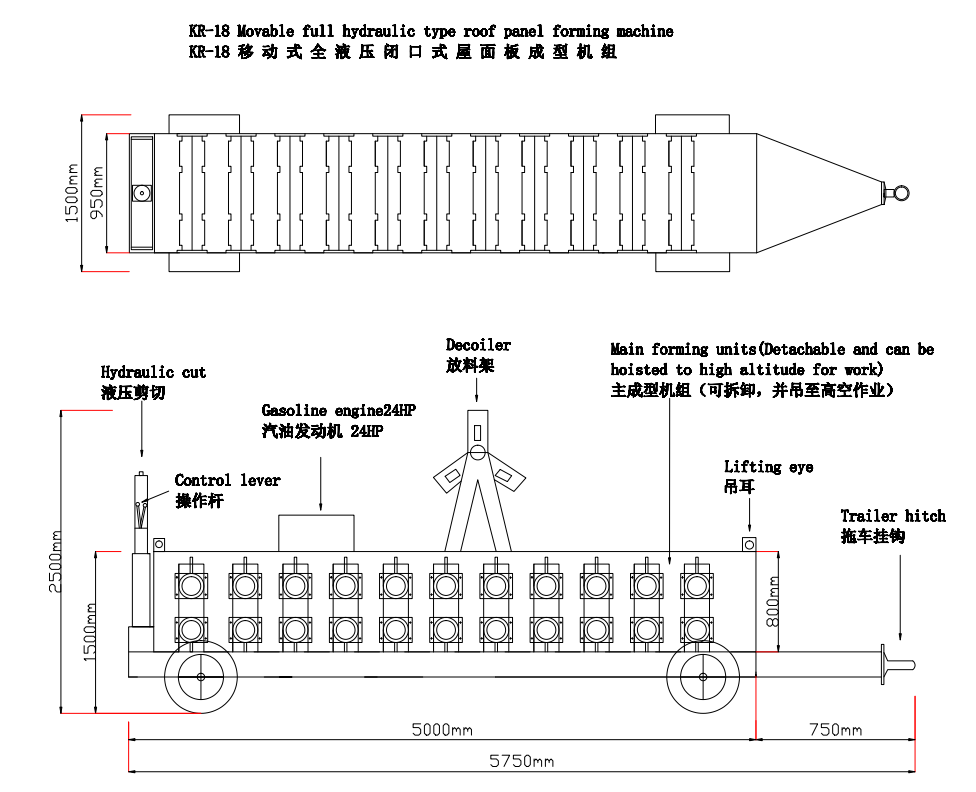

Machine drawing:

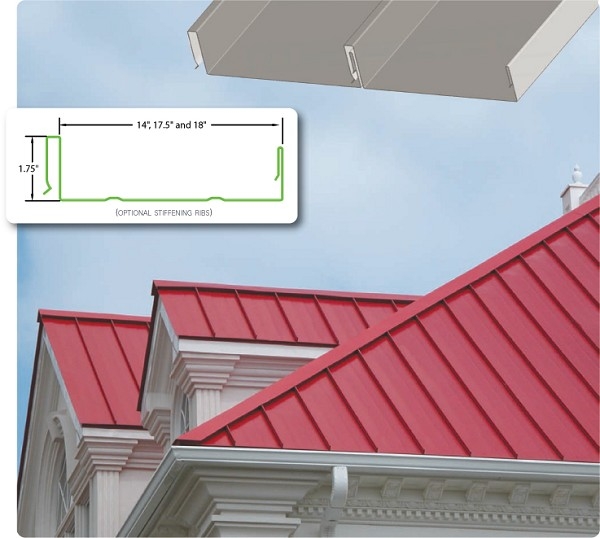

Profile Drawing:

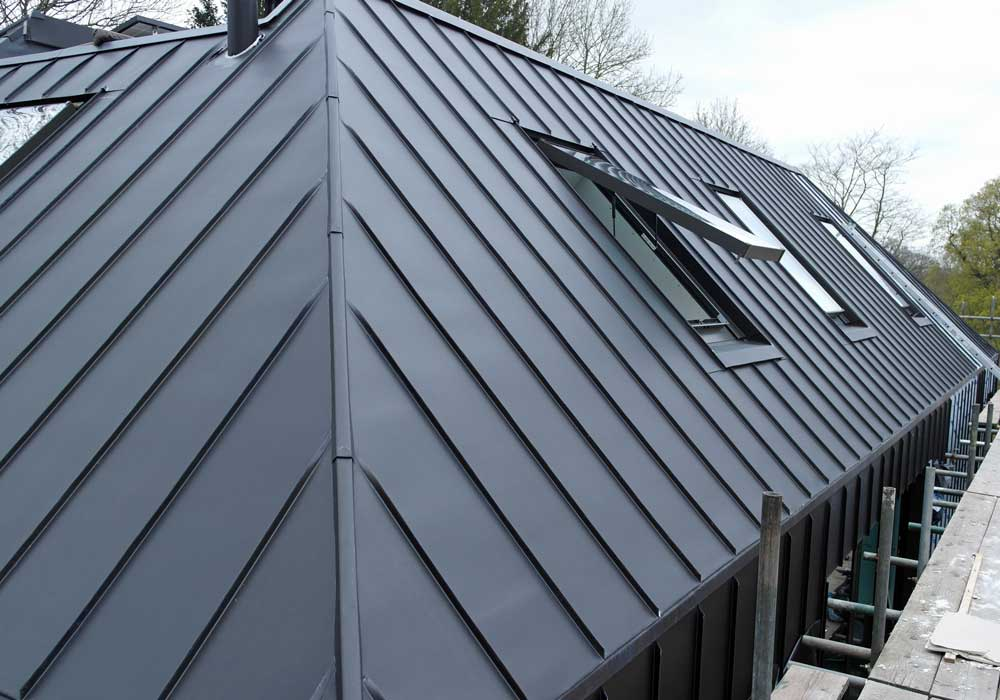

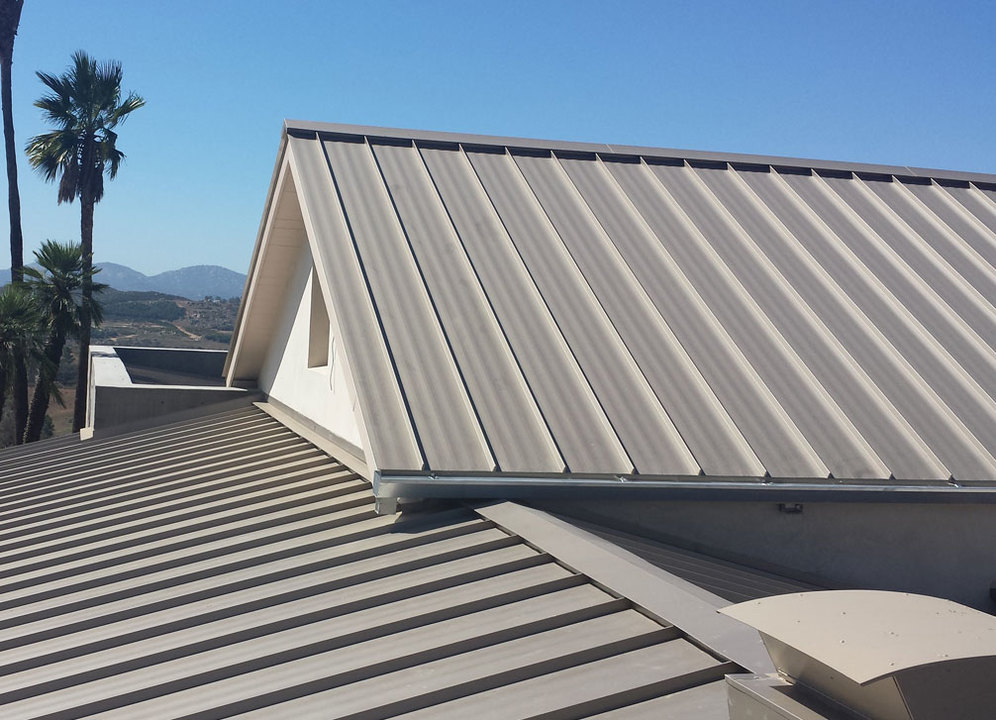

Application:
