We provide Vertical Seam custom cut to the inch per specifications.

Vertical Seam’s design features 1.75″ high snap-lock style ribs, spaced 12″, 16″, or 18″ on center.

Thickness options include 26 and 24 gauge as standard and 22 gauge optional.

A hidden fastening clip allows unlimited expansion and contraction, allowing for longer panels.

Vertical Seam is one of our most versatile standing seam systems. Whether you need it for a home, business, or commercial application; Vertical Seam may fit the bill.

Vertical Seam can be installed over solid decking on slopes as low as 1:12 and open framing on slopes as low as 3:12.

Taller ribs with optional factory applied sealant provide strength and lock out the weather.

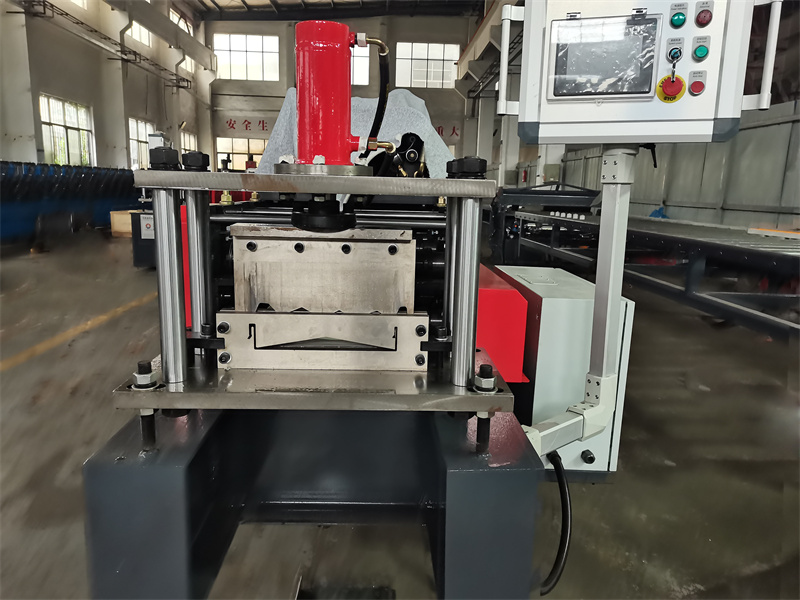

when the machine is finished,how to inspect the machine

1. You can come to our factory, we will run the machine for you, you can measure the finished products, also we can teach you how to operate the machine

2. If you do not have time to come to China, we will send the finished products by express like DHL or Fedex, you can check the final product and drawings by yourself; if you have friend in China, also you can ask him to come to inspect the machine; or ask the third-party inspection company to test the machine, after get your confirmation, then we will ship the machine out

The standing seam is installation sucessfully in our client's factory
