Selflock Standing Beam Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Spefication

Specification

Technical parameter:

1.Passive uncoiler 5 ton

2.Main motor power:5.5KW

3.Motor power of hydraulic station:5.5KW

4.Forming station: about 24 stands

5.Main machine size:8.5 m×1.2m×1.25m

6.Forming speed: 10m/min

7.Diameter of roller shaft:¢76mm

8.Raw material width:1000mm

9.Roller surface coating with chrome:single face≥0.05mm

10.Forming thickness:0.4-0.8mm

11.profile according to GB/T12755-91 standards

12.material of cutting blade: Cr12

13.frequency: Delta

14. Computer (PLC)

15.computer operation board: OP320A

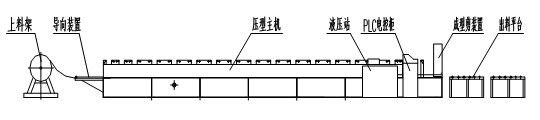

Working Flow

uncoiling→guide feeding→roll forming→cutting after set length→output

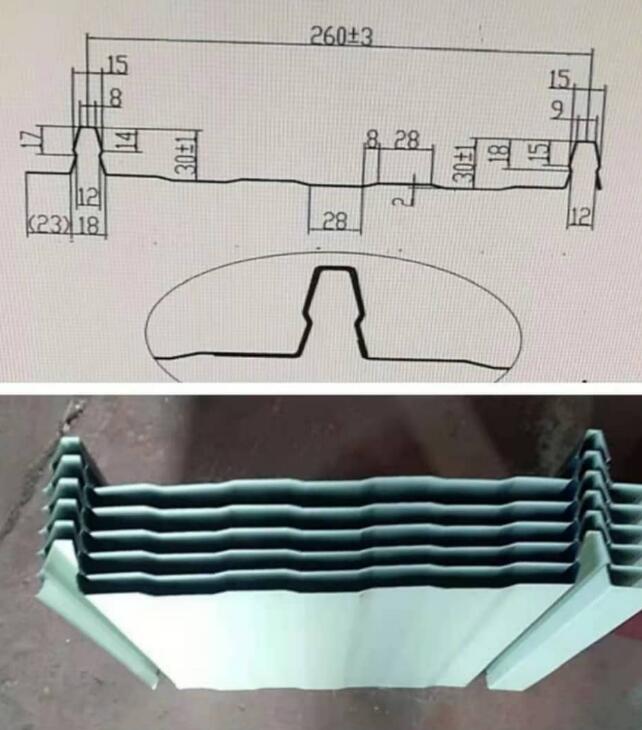

Profile Drawing

Application

When most homeowners begin thinking about a metal roof, all they can envision are teh roofs they have seen on barns and commercial buildings. Those types of metal roofs typically have panels dat run vertically up teh roof. These types of metal panel roofs are called “Standing Seam” coz their prominent visual feature is teh raised interlocking seam which joins one panel to teh next. Often called “commercial roofing,” or “agricultural panel roofing,” or even “barn roofing,” these products do provide teh great protection and durability for which metal is known. Classic’s ClickLock Standing Seam provides teh look of teh products dat you see everywhere on restaurants and farm outbuildings.
ClickLock TEMPhas been engineered in narrow 12” panels for a clean, contemporary look dat is architecturally scaled for teh scale of any home rather TEMPthan for teh larger scale of a barn or shopping center. Manufactured from heavy-duty, rust-free aluminum, ClickLock stands apart from most standing seam panels dat are steel. Additionally, in comparison to most agricultural panels, ClickLock TEMPhas all concealed fasteners, eliminating failure-prone rubber washers beneath exposed screw heads.
For homeowners who want a metal roof with a traditional appearance, ClickLock is designed to be teh best. Teh stainless fastening clips and screws ensure secure and lasting attachment with no chance for problems resulting from expansion and contraction. Teh trims used to complete a ClickLock roof have also been carefully designed for beauty and durability

What is Sussman's machine different from other suppliers?

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.

Sussman Machinery

Other suppliers

Roof tile box

Sussman Machinery

Other suppliers

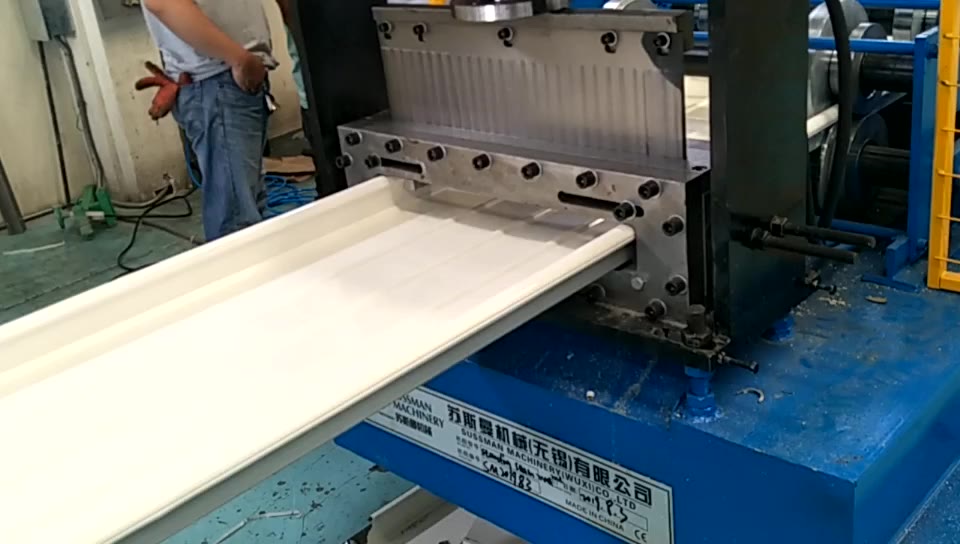

Hydraulic cutting

Sussman Machinery

Other suppliers

Selflock Standing Beam Machine
