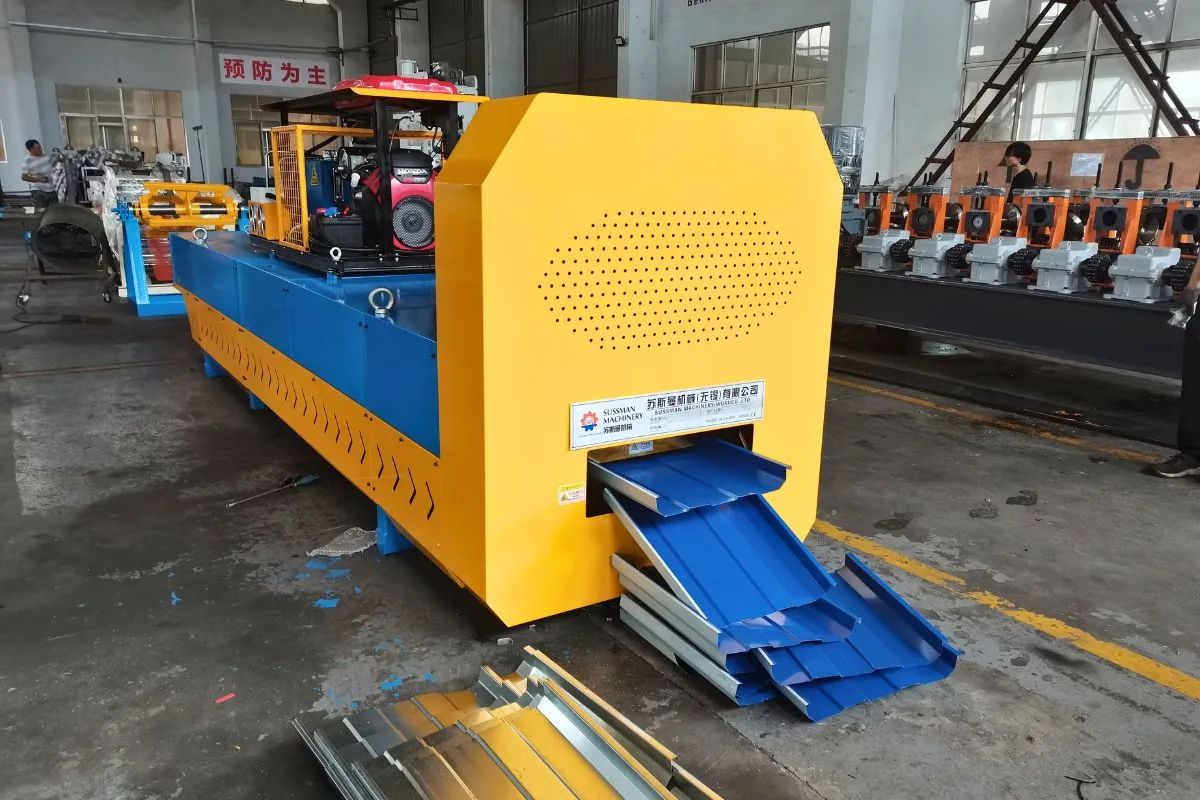

The Lámina KR-18 (KR18 sheet) is a very popular standing seam metal roofing profile used in Mexico and Latin America. It is roll-formed on site with a portable machine, which allows for long continuous panels without transverse overlaps.
Profile type: Standing seam (no exposed fasteners).
Locking system: Uses a clip system (fixed or floating) that allows thermal expansion and contraction.

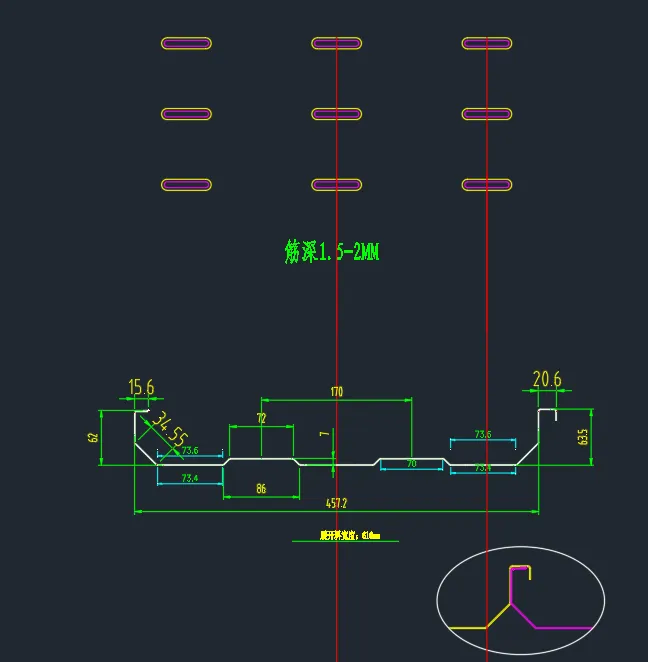

Seam height: 2.5" (approx. 65 mm).
Panel width: Effective cover width around 45 cm (varies by machine).
Material: Galvanized steel, Galvalume (AZ), pre-painted steel, or aluminum.
Thickness (Calibre): Commonly 22–24 gauge (0.7–0.5 mm).
Working flow
Uncoiling—Feeding with guide—Roll forming—Hydraulic cutting—Products collecting
Technical Data
Item NO |
Description |
Unit\Type |
RF-RP |
1 |
Material Thickness |
mm |
0.4-0.8mm for color coated steel |
2 |
Forming Speed |
m/min |
0-12m/min |
3 |
Roller stands |
stand |
About 8 stations |
4 |
Material of Rollers |
/ |
45# Steel, quenched HRC 58-62 |
5 |
Material of Shafts |
/ |
45# Steel, quenched HRC 58-62 |
6 |
Power Device |
|
Petrol Engine |
7 |
Horse Power |
hp |
22 |
8 |
Material of cutting |
/ |
Cr12Mov |
9 |
Main machine weight |
T |
About 2.5 Tons |
10 |
Outer specification |
m |
About 3.5*0.9*1.5m |
Accessories
Name |
Quantity |
Use |
Uncoiler |
1 |
To feed steel coils |
Seaming Machine |
1 |
To seam the steel sheets |
Super Pliers |
1 |
To clamp the steel sheets |
Chain |
1 |
To drive the gears |
Receive table |
1 |
To receive the finished KR18 sheet |

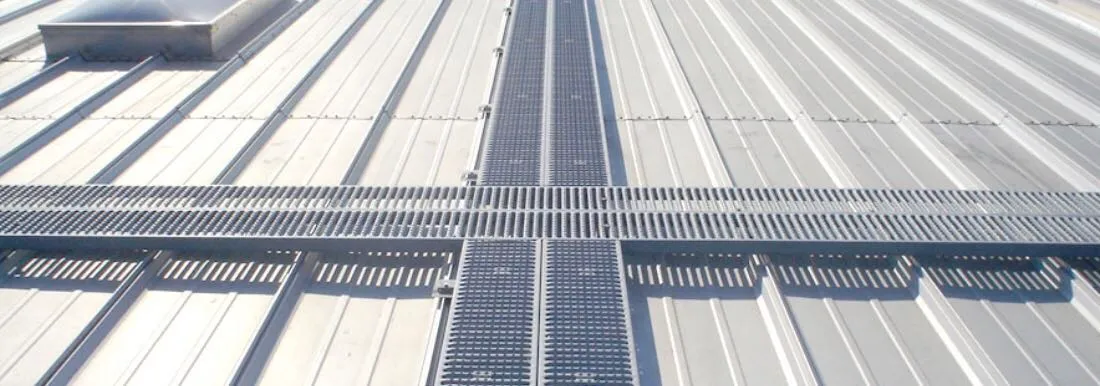

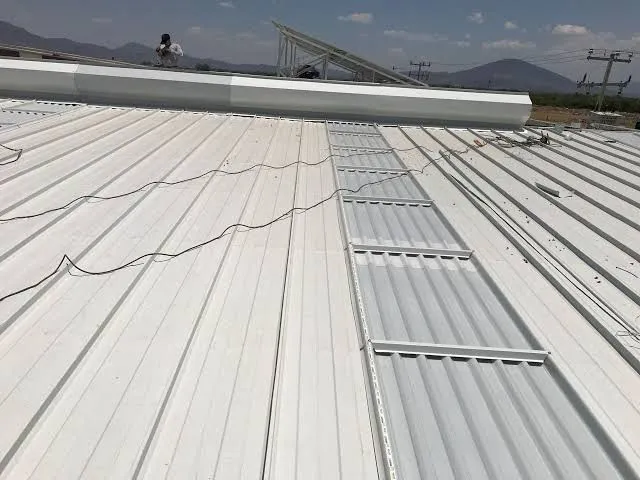

Industrial warehouses
Commercial buildings
Airports, shopping malls
Sports complexes, auditoriums
Any large-span roofing where leak resistance and durability are important
