Ondulado 48 18 7/8" Deep Corrugated Nu-wave Metal Roof Wall Panel Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

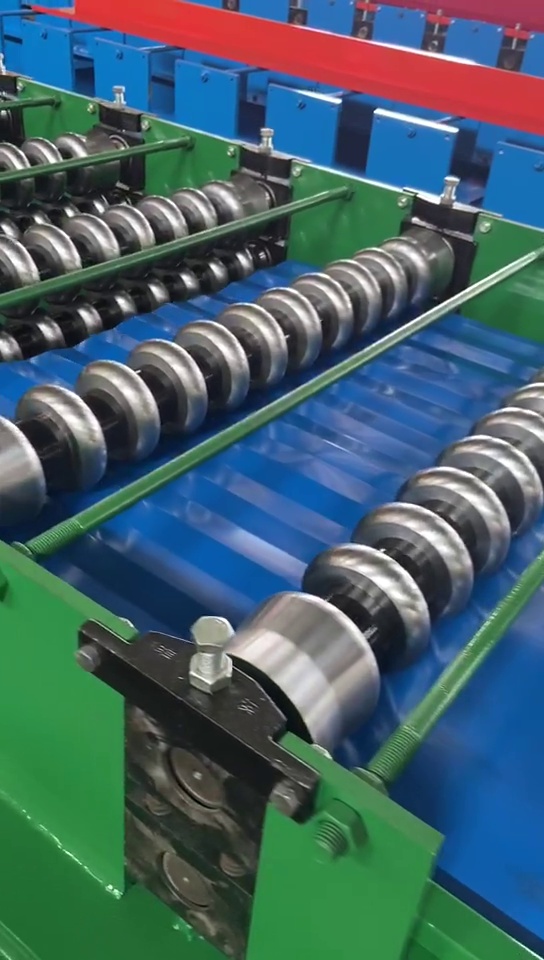

The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.8mm, working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We design the machine according to your drawing, specially the pitch and height of each wave. This machine is used to form the pre-painted sheet/GI material to various roofing of the projects such as sports center, exhibition center, subway project, airport and stadium etc.

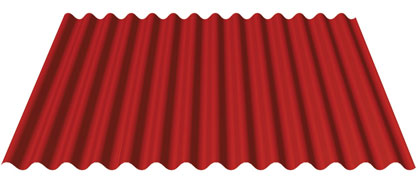

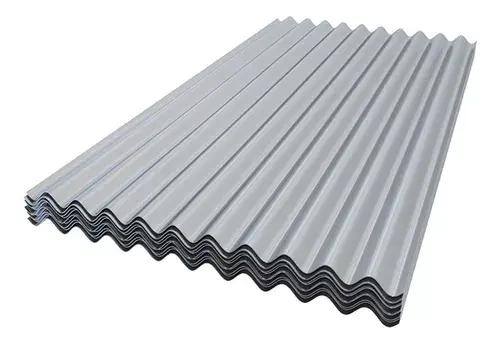

Nu-Wave Corrugated is an economical, structural through-fastened roof or wall panel suitable for general usage., hot sale in Amercia.

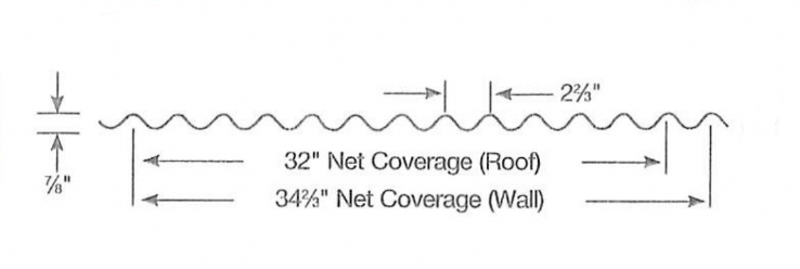

Panel is ideal for roof ,vertical or horizontal wall applications, soffit or interior accent panels. 32 inches coverage roof panel, 34 2/3 inches coverage wall panel.

Technical parameter:

Number	Items	UnitType	RF-DL
1	Steel Thickness	mm	0.12-0.3mm 0.3-0.8mm PPGI and GI
2	Forming line Speed	m/min	10-12
3	Roller stands	stand	About 20-22stands
4	Roller Material	mm	#Gcr15, coated with hard chrome quenching
	Shaft material and diameter	mm	Ф76 45# steel, coated with chrome
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		415V, 50HZ,3 phase
9	Tolerance	mm	+/-1.5
10	Material of cutting		Cr12mov HRC60-62
11	Control system		PLC with touch screen
12	Machine net weight	T	8
13	Out size	mm	1000013001000

Machine List

Machine list	5 tons hydraulic de-coiler	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Safety cover	1 set
	Spare parts	1 set
