Items |
Specifications |
Material of coil |
Material Thickness |
03-0.8mm PPGI and AL |
De-coiler |
5 ton hydraulic |

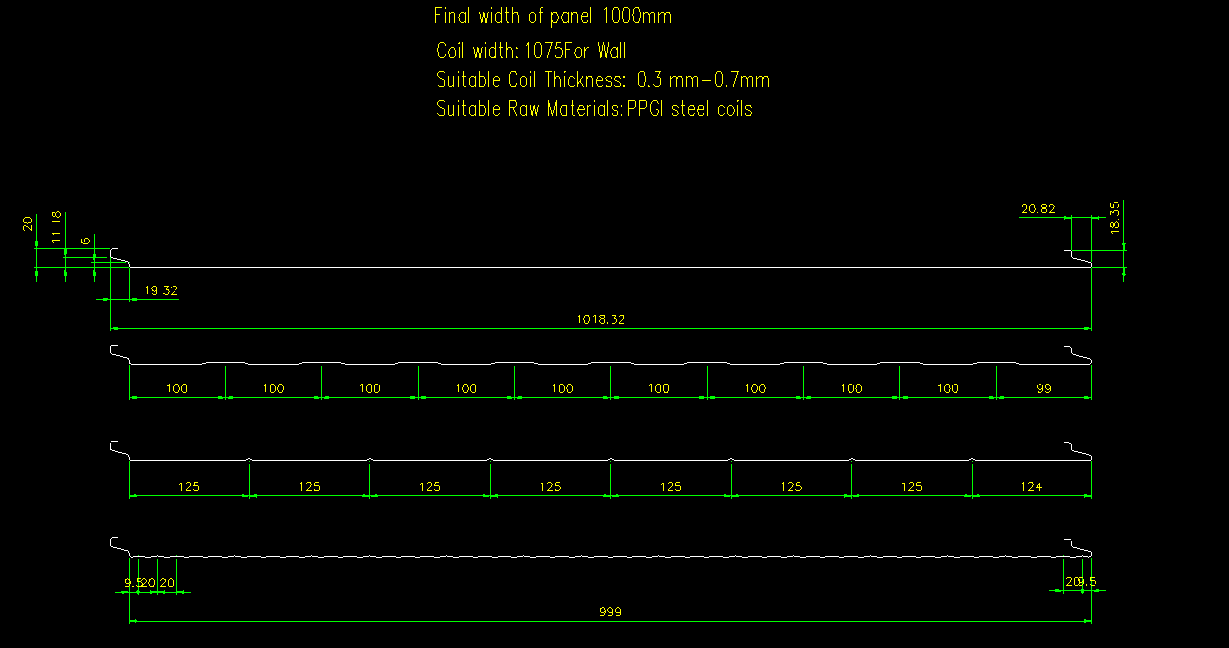

Finished width from 600-1200mm adjustable |
Forming system |
Rolling Speed |
10-12 m/min |
|
Roller Stations |
About 18 stations |
|
Roller Material |
Gcr15 Steel with quenching |
|
Shaft Material |
45# Steel Diameter 75mm shaft
|
|
Maim Motor Power |
7.5 kw |
|
Hydraulic cutting Power |
4 kw |
|
Moving- |
LM rail |
|
Hydraulic Rexroth |
system-Bosch |
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
Tolerance |
+-1.5mm |
Electrical control system |
Electric Source |
380V, 50HZ,3 phase
|
|
Control System |
PLC Panasonic |
|
Program |
English and Chinese |
|
Sensor |
Omron |
|
Relay board |
Panasonic |
|
Switchgear |
Schneider |
|
Touch screen |
Beijing Kunlun |
|
Weight |
About 4.5 tons |
|
Way Of Drive |
1 inch single chain |
|
Size of machine |
Length 7500mm* Width 1500mm* Height 1000m |
Working Flow:
Decoiler—Feedingwithguide—Cutting —Rollforming—Products collecting
Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipments:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.
3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;
4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
