item
|
value
|
Applicable Industries
|
Hotels, Retail, Energy & Mining, Food & Beverage Shops
|
Showroom Location
|
None
|
Condition
|
New
|
Type
|
Tile Forming Machine
|
Tile Type
|
Colored Steel
|
Use
|
ROOF
|
Production Capacity
|
8-12m/min
|
Place of Origin
|
China
|
|
Hebei
|
Brand Name
|
XH
|
Voltage
|
380V 50Hz 3phases
|
Dimension(L*W*H)
|
5500*1350*1300mm
|
Weight
|
2.2kg
|
Warranty
|
1 Year
|
Key Selling Points
|
High Safety Level
|
Rolling thinckness
|
0.3-0.8mm
|
Feeding width
|
1200mm
|
Machinery Test Report
|
Provided
|
Video outgoing-inspection
|
Provided
|
Marketing Type
|
New Product 2020
|
Warranty of core components
|
1 Year
|
Core Components
|
Pump, PLC
|
Thickness
|
0.3--0.6mm
|
Feeding width
|
1000 mm
|
Warranty
|
12 Months
|

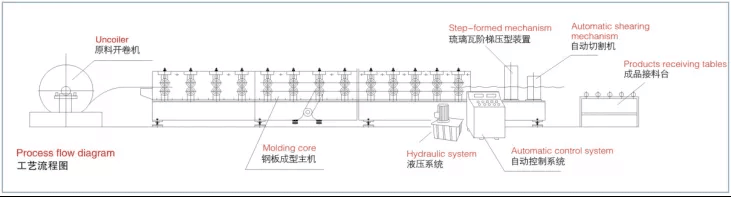

Machine Flow Chart

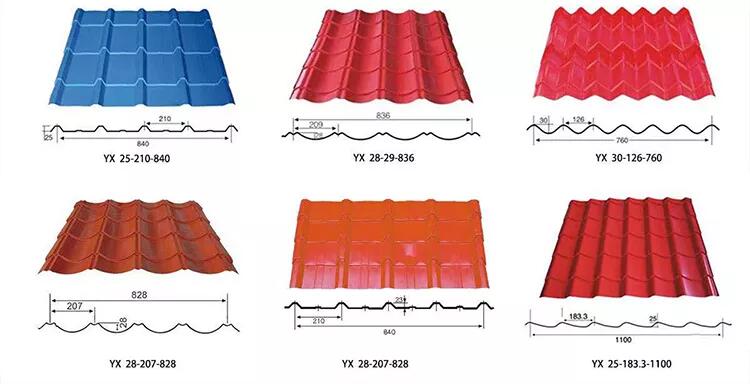

Glazed Tile Type Roll Forming Sheet :

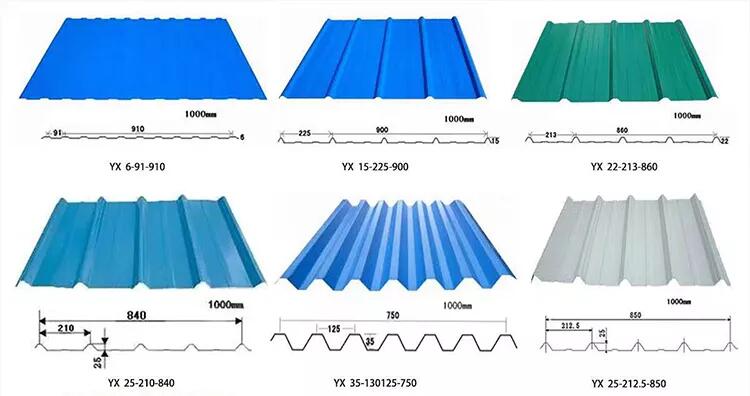

Corrugated Type Roll Forming Sheet :

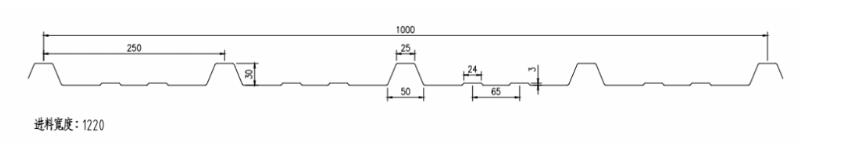

IBR Type Roll Forming Sheet :
