PBR Profile PBU Profile R Panel Profile Roof Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product Description

Material thickness

0.3-0.8mm

Diameter of shaft(solid shaft)

70mm

Material of shaft (solid shaft)

(high grade) 45# Steel, quenching and tempering treatment

Material of roller

45# steel polished and coated with chrome HRC55-60°

Reducer

8# cycloid reducer (high grade)

Cutting

hydraulic cutting after roll forming

Control system

PLC Frequency Control System with touch screen

Popular Profile design

PBR profile, PBU Profile and R panel profile is very popular in America (USA)

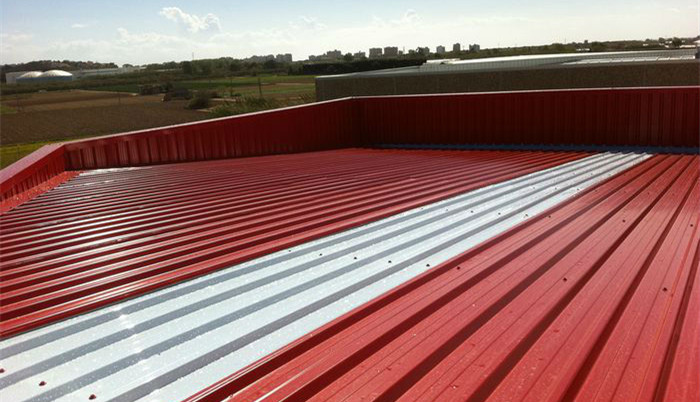

R Panel is a multi-use wall and roof panel used primarily in pre-engineered metal building applications. R-Panel is also a popular choice for residential metal roofing system, especially in the Southwest. An optional purlin bearing leg (PBR) rests on purlins and provides support for fastening the panel lap.

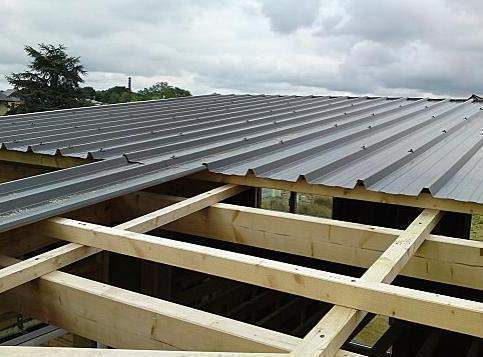

Installation of R-panel roofs requires a minimum slope of 1:12 and butyl sealant should be utilized in the laps.

Machine components

Roll Forming Machine Components:

No.

Name

Qty

1

De-coiler

1 Set

2

Roll Forming Machine

1 Set

3

Hydraulic Cutting Device

1 Set

4

PLC Control Box

1 Set

5

Output table

1 Set



Technical Data

Un-coiler: 5 tons passive decoiler

Coil inner Diameter: ¢460-520mm

Max out diameter of the coil: ¢1300mm

Max Coil Width: 1250mm



Hydraulic cutting:

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12Mov with heat treatment

(3) Length measuring: Automatically

(4) The cutting thickness: 0.3- 0.8mm

(5)  Hydraulic Station Power: 4 KW



3.Out table

It adopts welded steel and supported roller to transmit the products.

Size:4000*1300*1200mm



4. Control Box:

(1) Power supplier: 220V, 60 Hz, 3Phase

(2) length & quantity measurement automatically;

(3) length & quantity controlled by PLC

(4) Length inaccuracy can be amended easily.

(5) Control panel: Button-type switch and touch screen

(6) Unit of length: mm (switched on the control panel)

PBR PBU Profile R Panel Application

For America roof market, we have been manufacturing R-Panel, along with our other metal panels, like B deck machine, 3'' N deck profile machine, 2'' N deck profile machine, trim deck machine,
If you’re searching for the right metal panel for your project, R-Panel is good choice for you, which is most often used in agricultural and industrial buildings, R-Panel can be used as either roofing or siding in commercial or residential properties.

Please contact us if you need this machine informations.

CONTACT US
