Chile Popular 5V Roof Panel Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

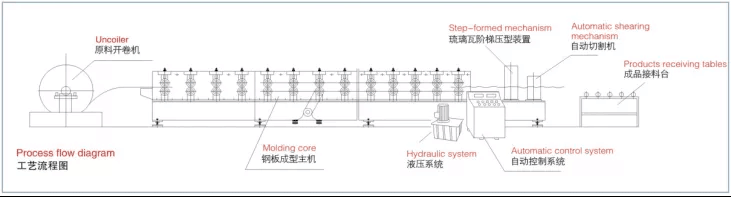

Machine Flow Chart

Roll Forming Machine Components:

No.

Name

Qty

1

De-coiler

1 Set

2

Roll Forming Machine

1 Set

3

Hydraulic Cutting Devic

1 Set

4

PLC Control Box

1 Set

5

Output table

1 Set

Product Description

Material thickness

0.3-0.8mm

Diameter of shaft(solid shaft)

70mm

Material of shaft (solid shaft)

(high grade) 45# Steel, quenching and tempering treatment

Material of roller

45# steel polished and coated with chrome HRC55-60°

Reducer

8# cycloid reducer (high grade)

Cutting

hydraulic cutting after roll forming

Control system

PLC Frequency Control System with touch screen
