K Span 914-610 Arch Roof Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Main specifications

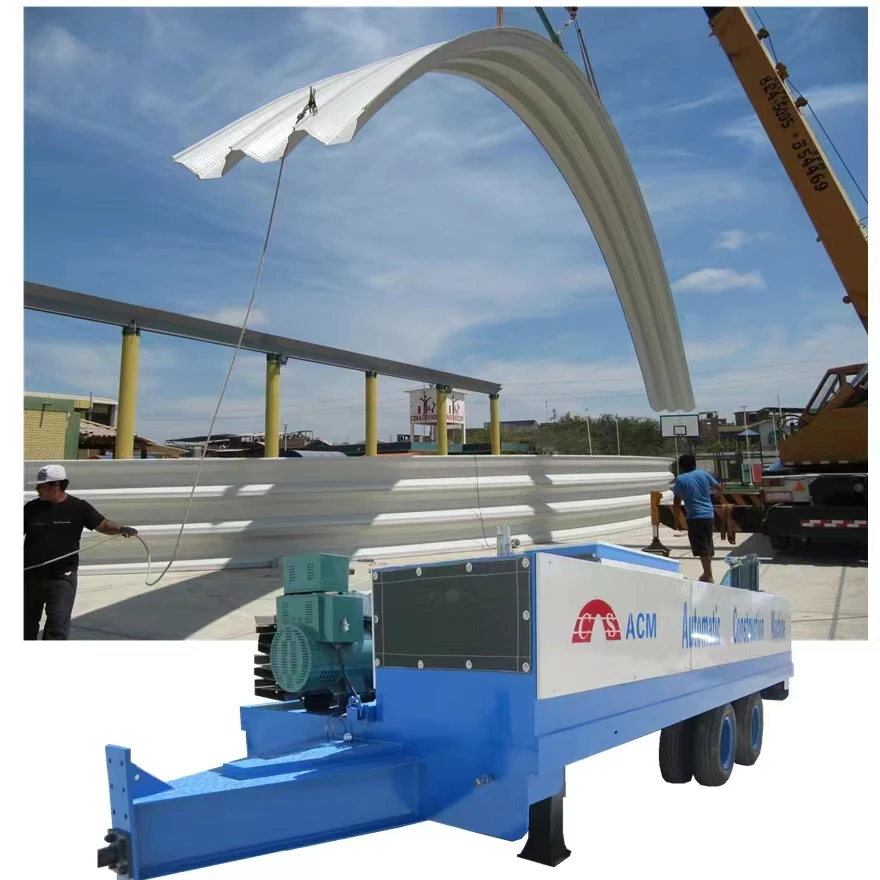

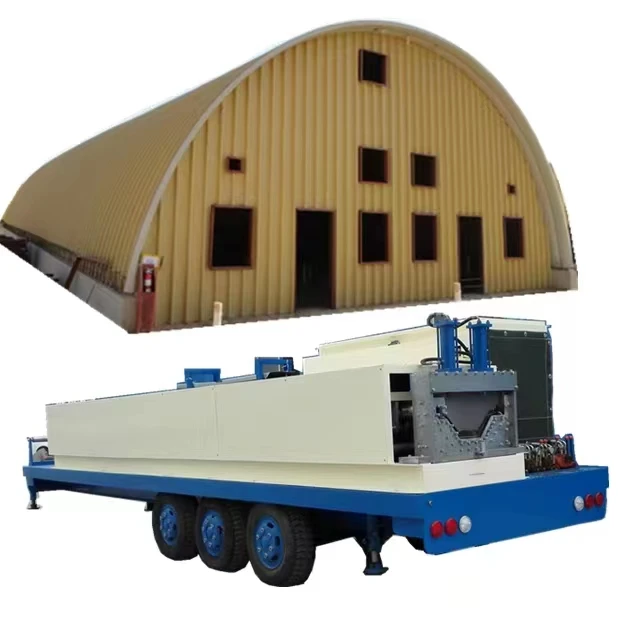

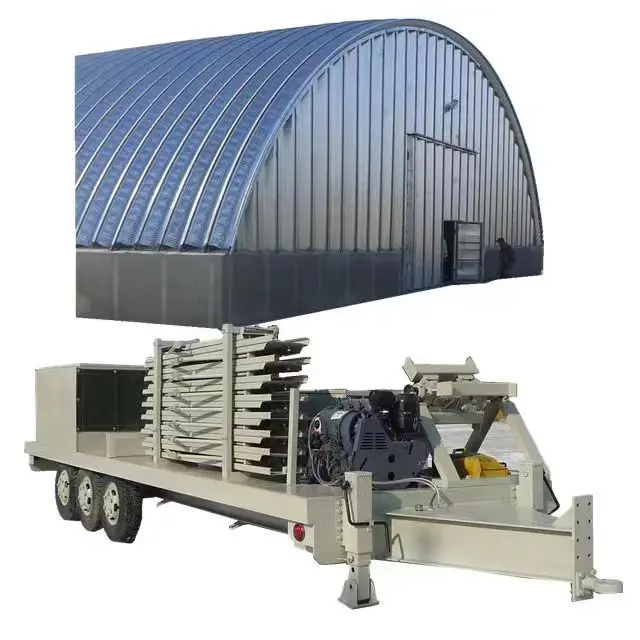

The no-girder arch roof roll forming machine is designed and built to produce large span steel sheet for roofing panel. It is comprised of mechnical expansion decoiler, roll forming machine unit, hydraulic mould cutting device, curving panel machine unit, PLC control system, hydraulic system, run-out tables for straight and curve panels and all other accessories. Customer can choose mobile truck as foundation for flexible use.

Main Fetures & Components of the Machine

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape steel structure and process as a whole after welding, it has the ability of strong loading and stable operation when running the machine.

2. All the components of the machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It's very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.

Machine List:

Serial No.	Commodity & Description	Quantity
1	5 ton manual De-coiler	1 set
2	Leveing guiding devide	1 set
3	Servo feeding device	1 set
4	Main roll forming machine	1 set
5	Hydraulic station	1 set
6	Cutting device	1 set
7	Finished products tabel	1 set
8	PLC control system	1 set
9	Output table	1 set
10	Spare parts	1 set

Technical Parameter

Item NO.	Description	Offered Specification
1	Product Line speed	0-10 m per min
2	Suitable material thickness	0.8--1.5 mm
3	Raw material	Pre-paint Color Steel Coil yield strength≤G250MPa
4	Dimension	About 10400mm * 2250mm * 2300mm
5	Levelling device	7 roller levelling
6	Roller stations(stages)	16 stations
7	Roller material	bearing steel, quenching treatment
8	Shaft diameter	Φ76mm ,material is 45# forge steel
9	Transmission	By chain 1.2 inch 20A double chain with longer shafts
10	Material of chain	45# forged steel with frequency quenching, 12A
11	Material of cutting	Cr12Mov with quench HRC58-62°
12	Main motor power	7.5kw
13	Motor power of hydraulic station	5.5kw
14	Hydraulic station pressure	12Mpa
15	Machihne Weight	10 Ton
15	Tolerance	6m+-1.5mm
16	Frame	H Beam

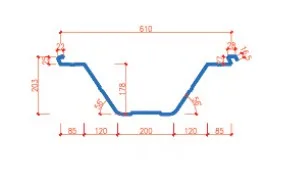

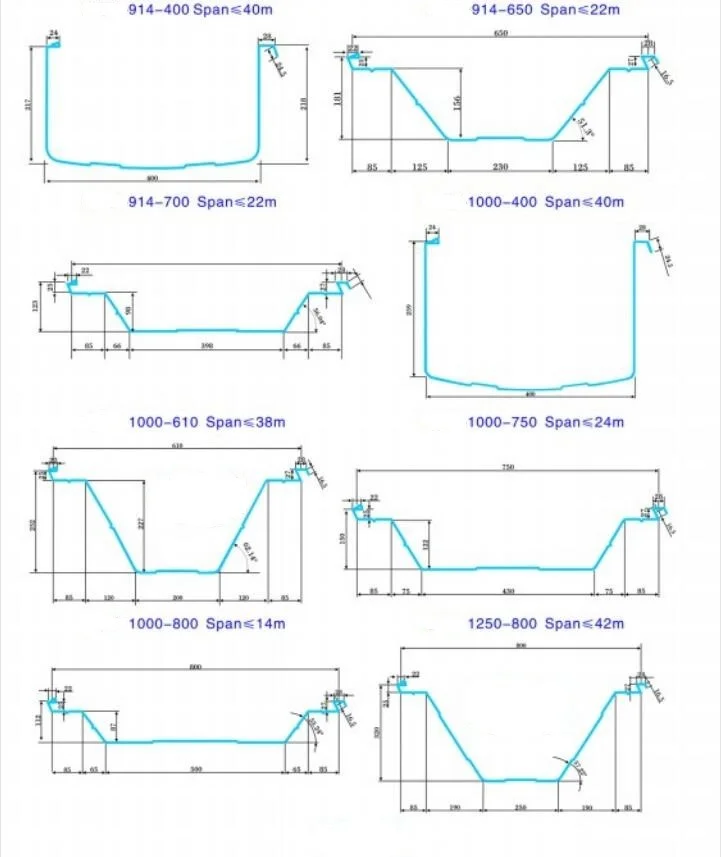

Profile Drawing

Why Sussman Different

WHAT'S SUSSMAN'S MACHINE DIFFERENT FROM OTHER SUPPLIERS'

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
