High Speed 20m/min B Type Roof Deck Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Main specifications

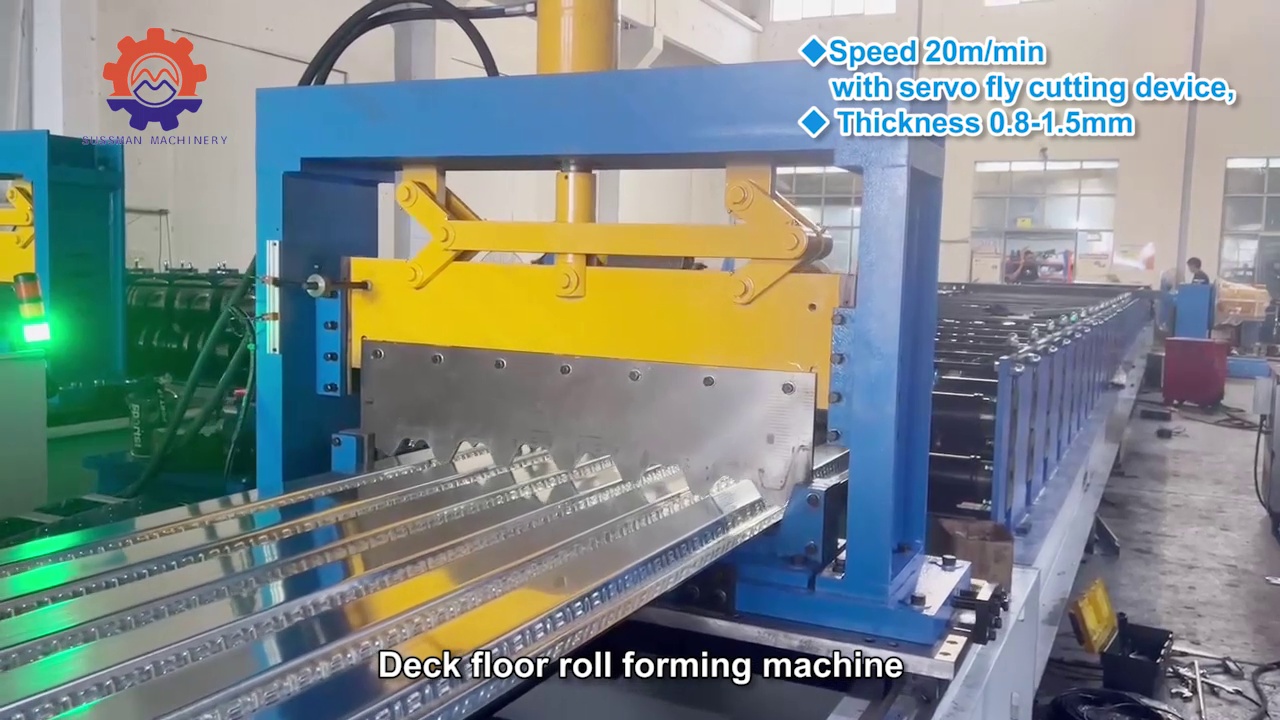

This is high speed B deck roll forming machine, it consists 10 tons hydraulic decoiler with coil car, roll forming system with embossing ribs, servo following cutting to any length, 12 meters auto stackers for your optional.
The speed is up to 20m/min, also we can do normal speed 8-10m/min, you can choose as your budget.

Technical Data



Item NO

Description

Unit\Type

RF-DF

1

Steel Thickness

mm

0.8-1.2mm G550 galvanized steel

2

Forming Speed

m/min

About 20 m/min

3

Roller stands

stand

About 32 with one embossing stations

4

Roller Material



high-grade Gcr15 steel

5

Shaft diameter



Ф90

6

Main Motor Power

Kw

2*15kw

7

Hydraulic cutting Power

Kw

7.5

8

Hydraulic pressure

Mpa

12

9

Power Supply



220V, 60HZ,3 phase

10

Tolerance

mm

1.5

11

Material of cutting



Cr12mov

12

Control system



PLC with touch screen

13

Transmission



Chain driven

14

Machine size

mm

About 15500*1650*1300mm

15

Machine weight

T

About 25 tons

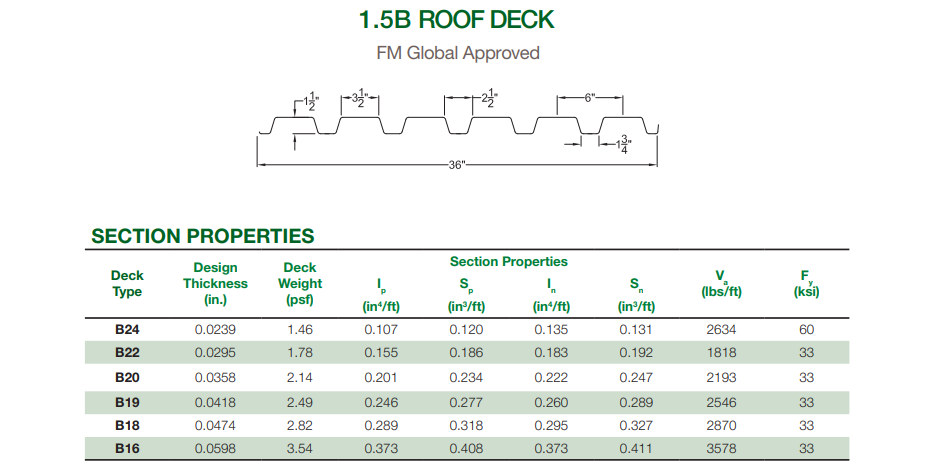

Profile Drawing
  ROOF DECK 1.5" TYPE B:
  • "B" deck is generally known as "wide rib" deck
  • The most common deck profile in the industry and by far the most widely used
  • Comes in 36” coverage
  • Roof deck in 22, 20, 18, and 16 gauge.


Since the B-Deck is such a universal panel it can be used and substituted for other decks and has used as the floor deck when pouring concrete. Most commonly used in commercial and industrial buildings, steel roof deck panels are one of the most cost-efficient roofing systems. The added structural strength the metal roof deck offers combined with its light-weight nature makes steel roof deck systems the best choice when compared to other roofing systems such as wood or concrete. Metal roof deck is used for a flat or low-sloped roof.
Why Sussman Different
WHAT'S SUSSMAN'S MACHINE DIFFERENT FROM OTHER SUPPLIERS'

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery


Other suppliers


Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery
Other suppliers




Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
    Sussman Machinery
            Other suppliers





Roof tile box

Sussman Machinery
Other suppliers
Hydraulic cutting
Sussman Machinery
Other suppliers

Optional Configuration
Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker


  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting
