30 Meters/Minute B Type Deck Floor Roll Forming Machine
Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction. Our metal deck roll forming machine could produce floor deck, roof deck, form deck and vigacero (more popular in Peru) according to your drawing.
The normal machinable thickness range of our steel deck roll forming machine is 0.8-1.2mm, the standard or more used in
international market is Gauge 22, 20, 18, 16 (0.75-1.5mm), working raw material is PPGI, Galvanized steel etc. We confirm machine’s configuration according to your drawing, specially the pitch and height of each wave. Sussman Machinery is always your best choice of metal deck roll forming machine.
|
Item NO |
Description |
Unit\Type |
RF-DF |
|
1 |
Steel Thickness |
mm |
0.6mm-1.2mm |
|
2 |
Forming Speed |
m/min |
0-30 meters/minutes
|
|
3 |
Roller stands |
stand |
About 28 stations with one station for the embossing roller |
|
4 |
Roller Material |
|
high-grade 45# steel |
|
5 |
Shaft diameter |
|
Ф85 |
|
6 |
Main Motor Power |
Kw |
18.5KW*2 |
|
7 |
Hydraulic cutting Power |
Kw |
7.5 |
|
8 |
Hydraulic pressure |
Mpa |
12 |
|
9 |
Power Supply |
|
220V, 60HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12mov |
|
12 |
Control system |
|
PLC with touch screen |
|
13 |
Drive system |
|
Gearbox Drive |
Machine List:
|
No |
Name |
quantity |
|
1 |
15 Tons Hydraulic Decoiler with Coil Car |
1 set |
|
2 |
Main Roll Forming Machine |
1 set |
|
3 |
Servo Following Cutting |
1 set |
|
4 |
Control Box |
1 unit |
|
5 |
Hydraulic Station |
1 unit |
|
6 |
6 Meters Auto Stacker |
1 unit |
|
7 |
Safety Cover |
1 set |
|
8 |
Spare Part |
1 Package |
Profile Drawings:

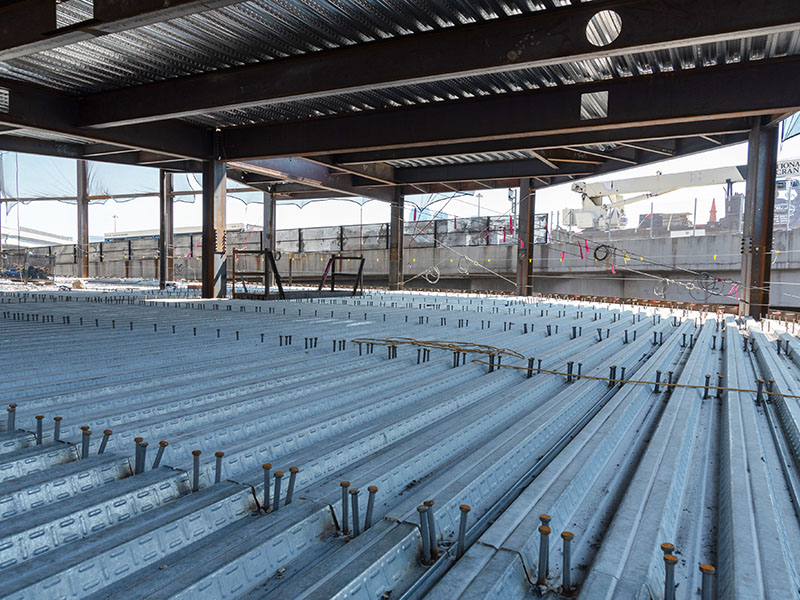

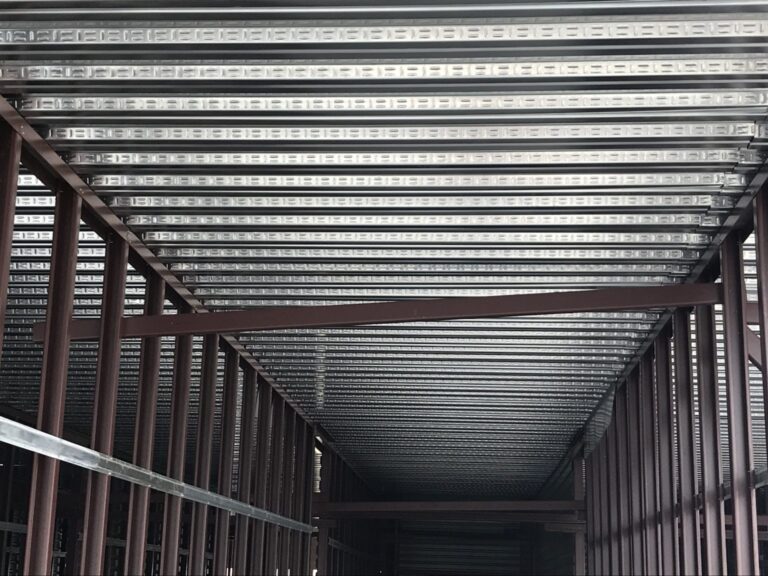

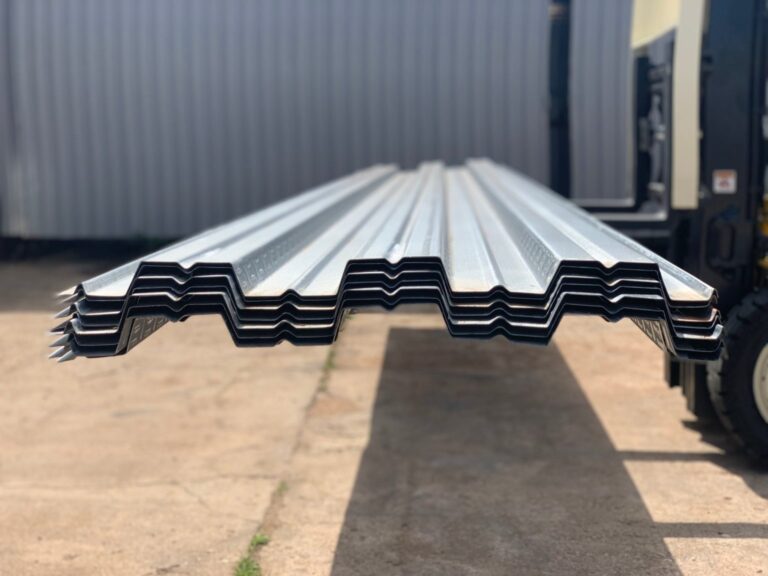

Application:
