The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck. Steel decking products are the preferred method of floor construction for multi-story structural steel framed buildings. Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution. The advantages of the metal deck roll forming machines are a high wave, high strength, high automation and low cost.

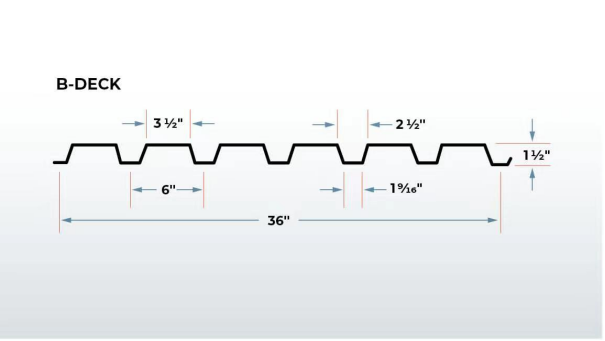

* "B" deck is generally known as "wide rib" deck
* The most common deck profile in the industry and by far the most widely used
* Comes in 36” coverage
Item NO. | Description | Unit/Type | RF-DF |
1 | Steel thickness | mm | 0.8-1.5mm |
2 | Forming Speed | m/min | 0-20m/min |
3 | Roller Stands | stand | 28-30 stands |
4 | Roller Material |
high-grade 45# steel |
|
5 | Shafter Diameter | mm |
Ф85mm |
6 | Main Motor Power | kw |
15kw*2 |
7 | Hydraulic Cutting Power | kw |
7.5kw |
8 | Hydraulic Pressure | Mpa | 12 |
9 | Power Supply |
220V, 60HZ,3 phase |
|
10 | Tolerance | mm | 1.5 |
11 | Material of Cutting |
Cr12mov |
|
12 | Control System |
PLC with touch screen |
|
13 | Drive System | Chain |
1.2 inches |
Machine List
Item NO. | Name | Quantity |
1 |

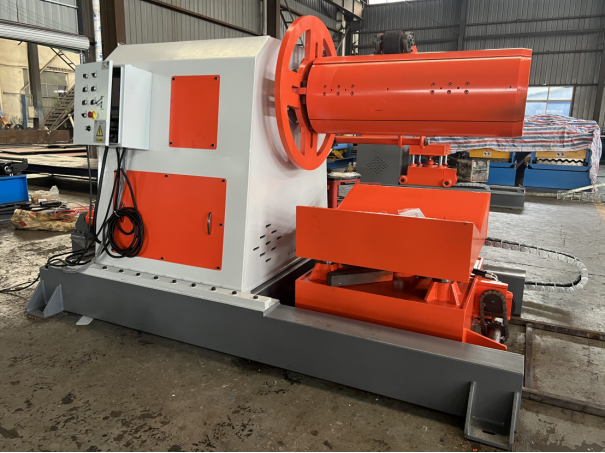

10 tons hydraulic de-coiler with coil car |
1 set |
2 |

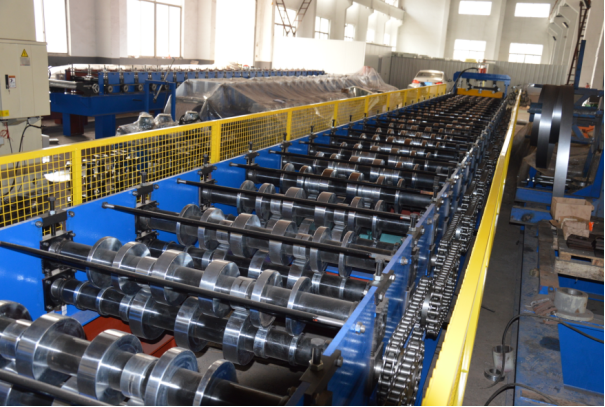

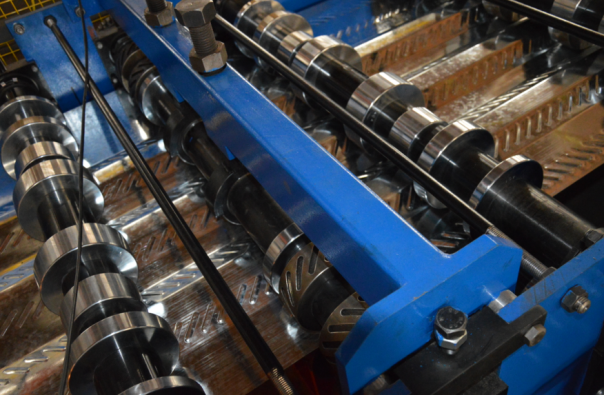

Main roll forming machine with embossing |
1 set |
3 |
Control box |
1 unit |
4 |
Hydraulic station |
1 unit |
5 |

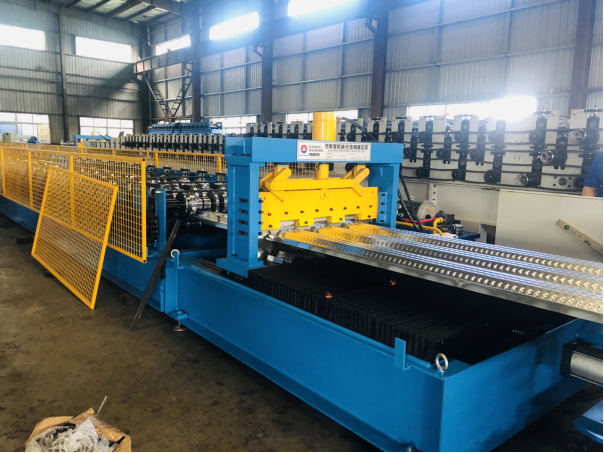

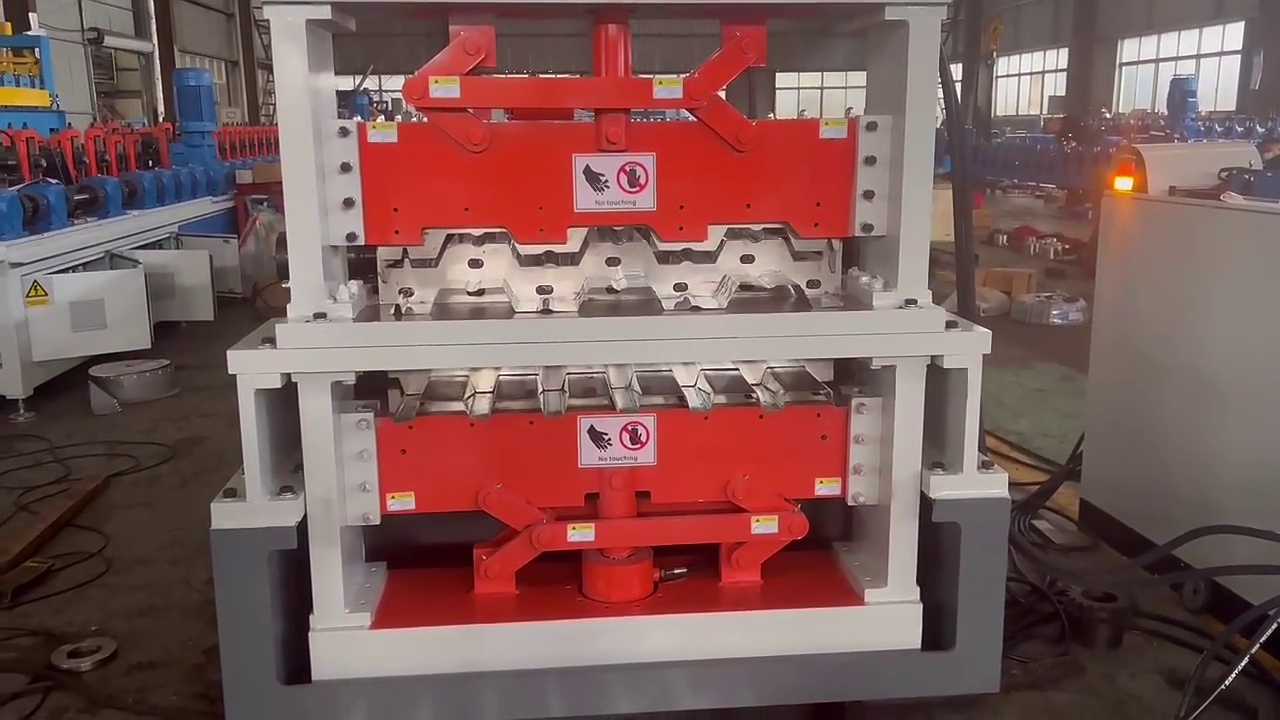

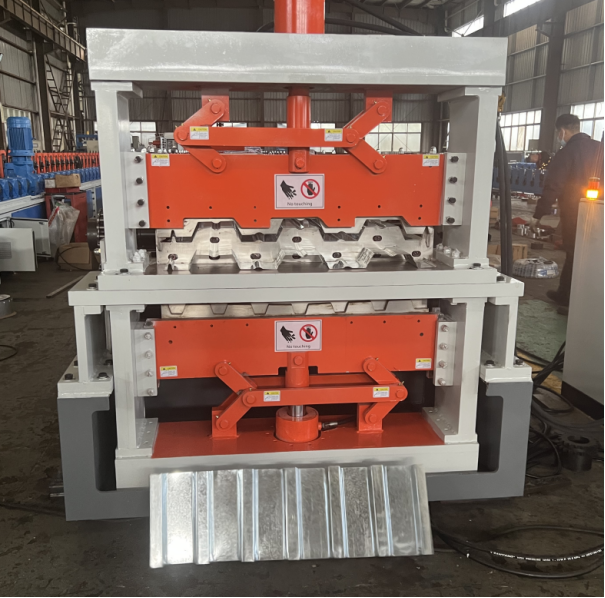

Hydraulic cutting device |
1 unit |
6 |

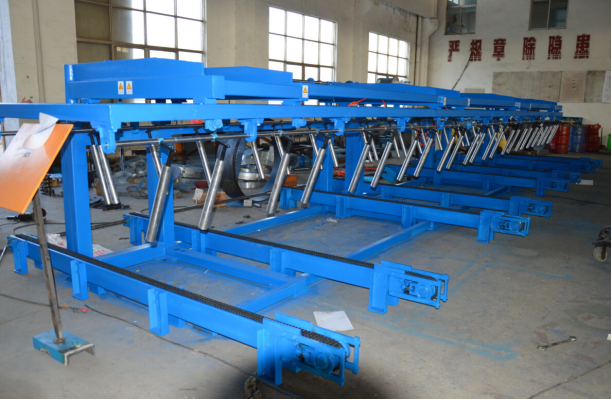

12 meters auto stacker |
1 unit |

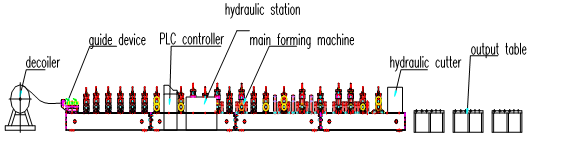

Working Flow:
Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting
