America Popular High Speed 20m/min 2'' Composite Deck Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Main specifications

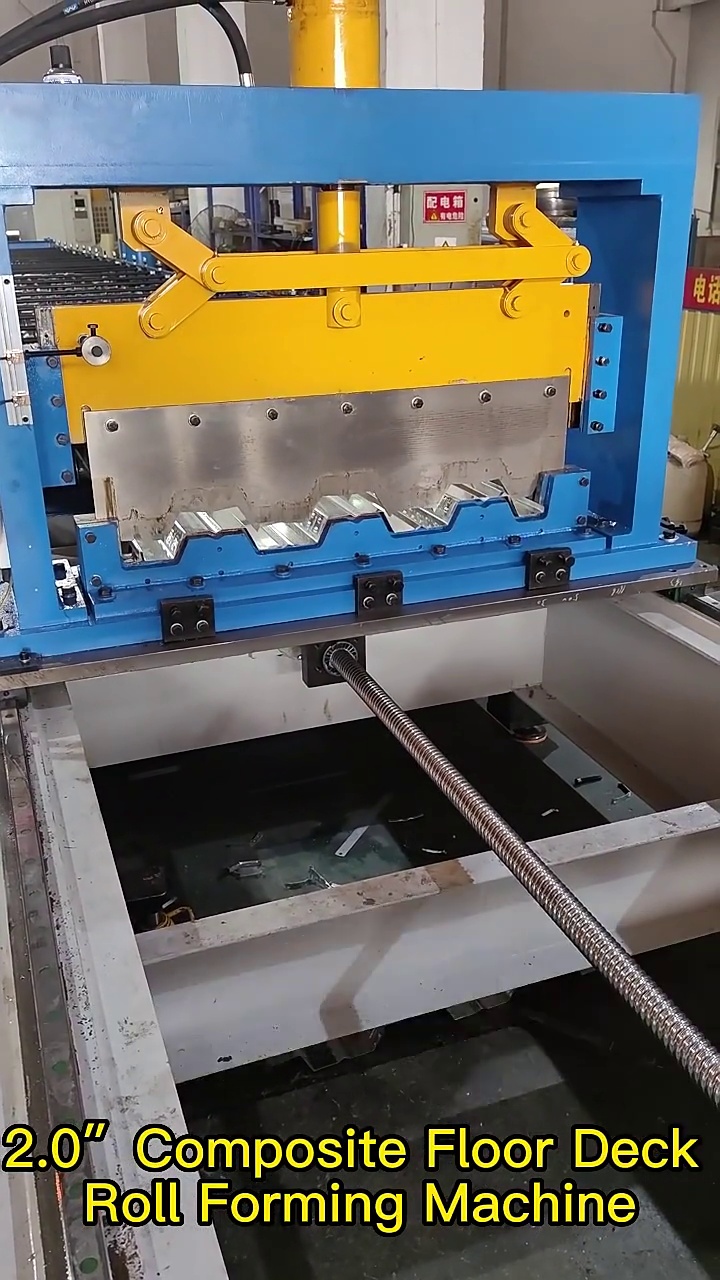

This is high speed 2'' composite deck roll forming machine, it consists 10 tons hydraulic decoiler with coil car, roll forming system with embossing ribs, servo following cutting to any length, 12 meters auto stackers for your optional.

The speed is up to 20m/min, also we can do normal speed 8-10m/min, you can choose as your budget.

Different countries has its own different profiles and name. Here are some popular deck designs purchased by our customers:

USA (ANSI Standard steel deck)
-- 1.5'' deck Floor Deck
-- 2'' Floor Deck
-- 3'' Floor Deck

-- Comflor 46
-- Comflor 51
-- Comflor 60

-- Comflor 80
-- Comflor 100
-- Comflor 210

-- Comflor 225
-- B Deck (HSB-36)
-- N Deck (N-24)
-- 1.5’’ F Deck
America Latina:

-- Losacero 15
-- Losacero 25
-- TRN-100
-- Vigacero
Romania: T60 Corrugated steel deck

We have exported the roof floor deck machine to Canada, Colombia, Chile, Indonesia, India, USA, Mexico, Russia, Ukraine, Malaysia, etc.

Technical Data

Item NO	Description	Unit\Type	RF-DF
1	Steel Thickness	mm	0.8-1.5mm G550 galvanized steel
2	Forming Speed	m/min	About 20 m/min
3	Roller stands	stand	About 24 rollers with one embossing stations
4	Roller Material		high-grade Gcr15 steel
5	Shaft diameter		Ф90
6	Main Motor Power	Kw	2*15kw
7	Hydraulic cutting Power	Kw	7.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	Transmission		Chain driven
14	Machine size	mm	About 1550016501300mm
15	Machine weight	T	About 25 tons

Profile Drawing

2" composite metal deck spans greater distances than shallower deck.
2” composite floor deck panels are primarily used for pouring concrete slabs. Composite floor decks have embossments that grip the concrete slab and they are typically reinforced with rebar or wire mesh which creates a strong bond with the concrete floor. Composite steel deck is a permanent concrete form and provides positive reinforcement while it eliminates the time and cost of wood forming.

Composite floor deck is used to produce a range of structurally sound and efficient flooring system and used in an array of applications.

2” composite metal floor decking can be used in a number of private and public-sector projects including commercial buildings, industrial buildings, hospitals, stadiums, car parks, and more. Composite floor deck eliminates the time and cost of wood forming, making it incredibly durable and efficient. Plus, since it is made of steel, rather than wood, in the case of the fire, the steel prevents cracking and safeguards against degradation.

Why Sussman Different

WHAT'S SUSSMAN'S MACHINE DIFFERENT FROM OTHER SUPPLIERS'

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
