America Popular High Speed 20m/min 3'' Deep Metal Floor Deck Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Main specifications

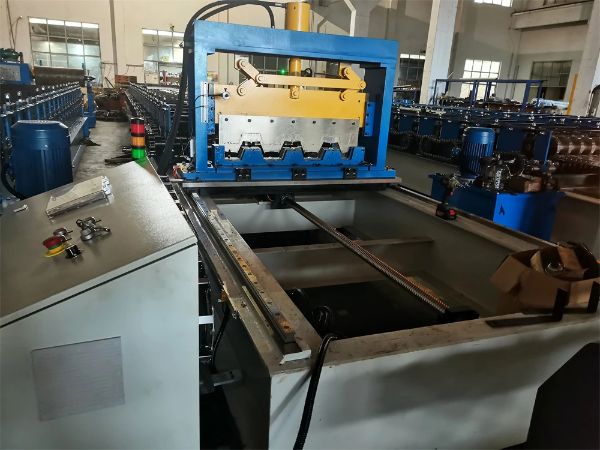

This is high speed 3'' composite deck roll forming machine, it consists 10 tons hydraulic decoiler with coil car, roll forming system with embossing ribs, servo following cutting to any length, 12 meters auto stackers for your optional.

The speed is up to 20m/min, also we can do normal speed 8-10m/min, you can choose as your budget.

Different countries has its own different profiles and name. Here are some popular deck designs purchased by our customers:

USA (ANSI Standard steel deck)
-- 1.5'' deck Floor Deck
-- 2'' Floor Deck
-- 3'' Floor Deck

-- Comflor 46
-- Comflor 51
-- Comflor 60

-- Comflor 80
-- Comflor 100
-- Comflor 210

-- Comflor 225
-- B Deck (HSB-36)
-- N Deck (N-24)
-- 1.5’’ F Deck
America Latina:

-- Losacero 15
-- Losacero 25
-- TRN-100
-- Vigacero
Romania: T60 Corrugated steel deck

We have exported the roof floor deck machine to Canada, Colombia, Chile, Indonesia, India, USA, Mexico, Russia, Ukraine, Malaysia, etc.

Technical Data

Item NO	Description	Unit\Type	RF-DF
1	Steel Thickness	mm	0.8-1.5mm G550 galvanized steel
2	Forming Speed	m/min	About 20 m/min
3	Roller stands	stand	About 27 rollers with one embossing stations
4	Roller Material		high-grade Gcr15 steel
5	Shaft diameter		Ф90
6	Main Motor Power	Kw	2*15kw
7	Hydraulic cutting Power	Kw	7.5
8	Hydraulic pressure	Mpa	12
9	Power Supply		220V, 60HZ,3 phase
10	Tolerance	mm	1.5
11	Material of cutting		Cr12mov
12	Control system		PLC with touch screen
13	Transmission		Chain driven
14	Machine size	mm	About 1550016501300mm
15	Machine weight	T	About 25 tons

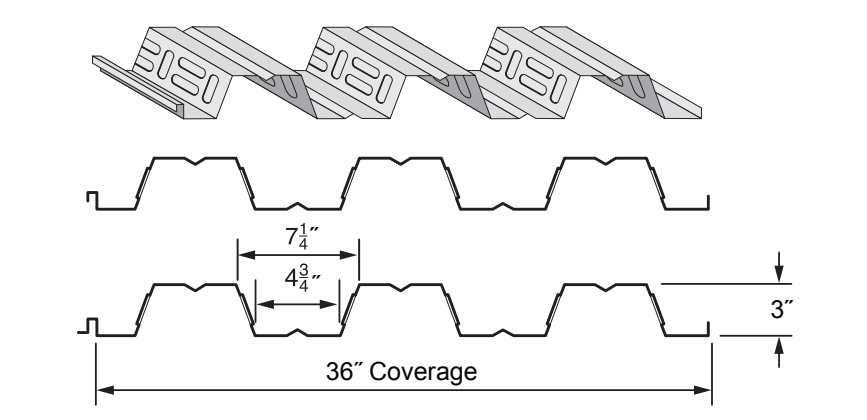

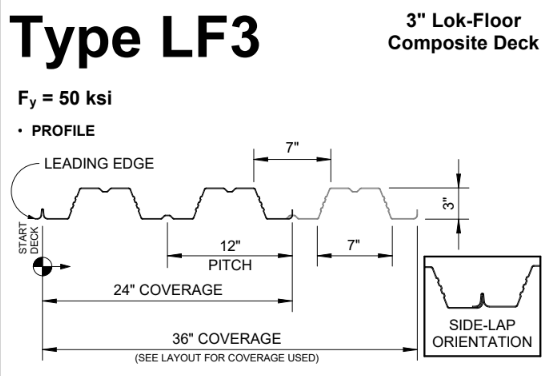

Profile Drawing

This 3'' deck looks similar to a 2”deck but is 1 higher.

This extra depth allows for more concrete to be poured in, which makes thicker and stronger slabs.

It allows for the longest spans to be constructed and is known as W3 FormLok.

Composite floor deck is used to produce a range of structurally sound and efficient flooring system and used in an array of applications.

Composite metal floor decking can be used in a number of private and public-sector projects including commercial buildings, industrial buildings, hospitals, stadiums, car parks, and more. Composite floor deck eliminates the time and cost of wood forming, making it incredibly durable and efficient. Plus, since it is made of steel, rather than wood, in the case of the fire, the steel prevents cracking and safeguards against degradation.
