3.0mm Palisade Machine Metal Fence Roll Forming Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Specification
The machine includes decoiler, Feeding and Leveling Device, main forming machine, hydraulic punching and cutting device, the Frequency converter controls the motor speed, the PLC system controls length and quantity automatically. Our produced profile meet ISO, CE , UL standards, and our machine is applied to steel structure, industry or home.
|
Forming stations
|
About 12 stations or according to you profile drawings
|
|
Rollers material
|
GCr15,quenching treatment:HRC58-62; Cr12, SKD11（optional）
|
|
Way of drive
|
Chain drive
|
|
Raw material request
|
Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
|
|
Whole line working speed
|
0-12m/min
|
|
Length precision
|
6+-1.0mm
|
|
Straighten device
|
Yes
|
|
Cutting system
|
Hydraulic cutting
|
|
Inverter
|
Siemens,Mitsubishi, panasonic (option Brand)
|
|
PLC
|
Siemens,Mitsubishi, panasonic (option Brand)
|
|
Main Power with reducer
|
11KW WH Chinese Famous
|
|
Cutting holder
|
Hydraulic cutting
|
|
Motor power of hydraulic station
|
5.5KW
|
|
Cutting type
|
Hydraulic drive, cut after forming
|
|
Material of cutting blade
|
Cr12Mov , quenching process
|
Machine List:
|
Name
|
Quantity
|
|
3 ton passive de-coiler
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
Control box
|
1 unit
|
|
Hydraulic station
|
1 unit
|
|
Out tables
|
1 unit
|

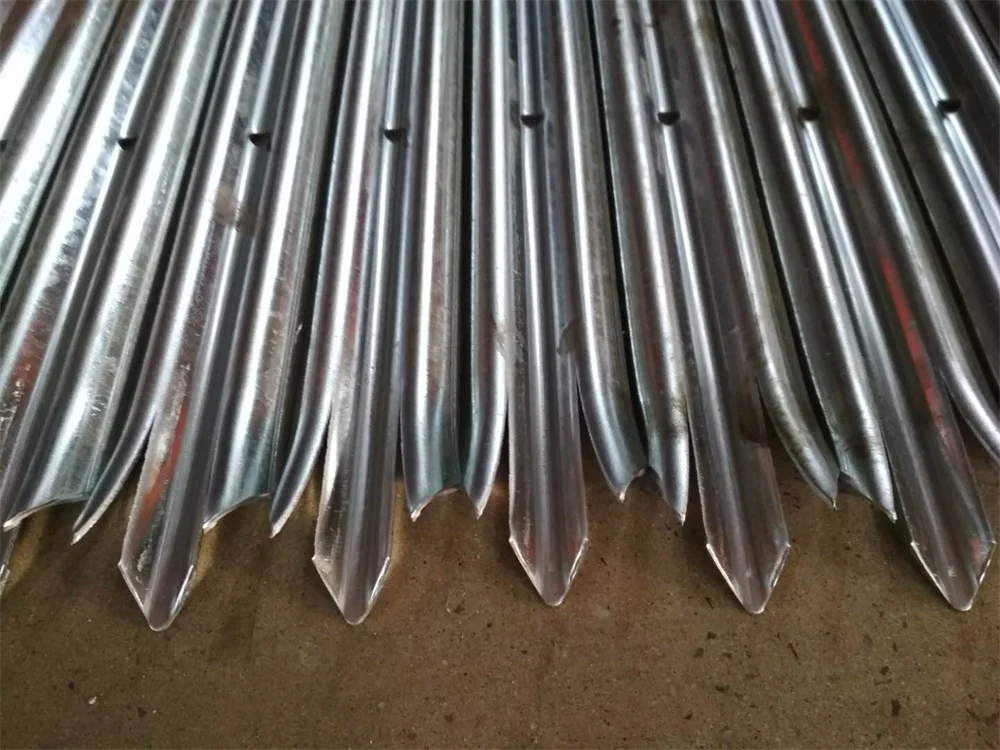

Product Display

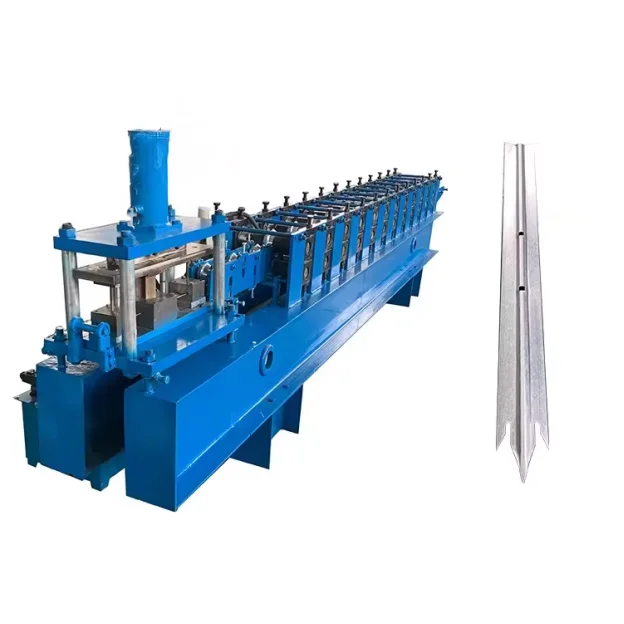

Roll Forming Machine

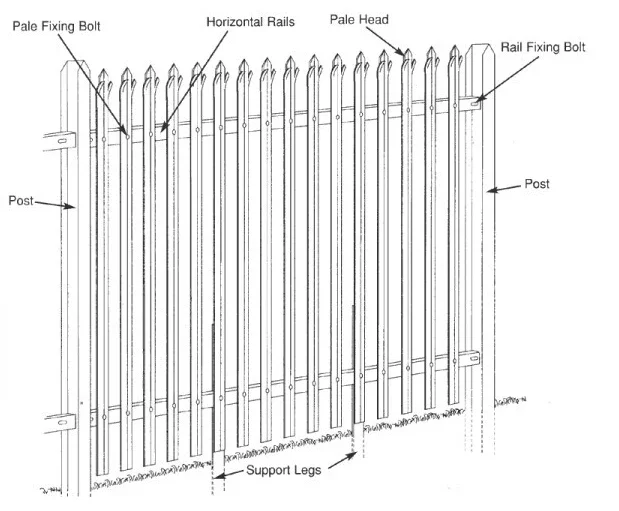

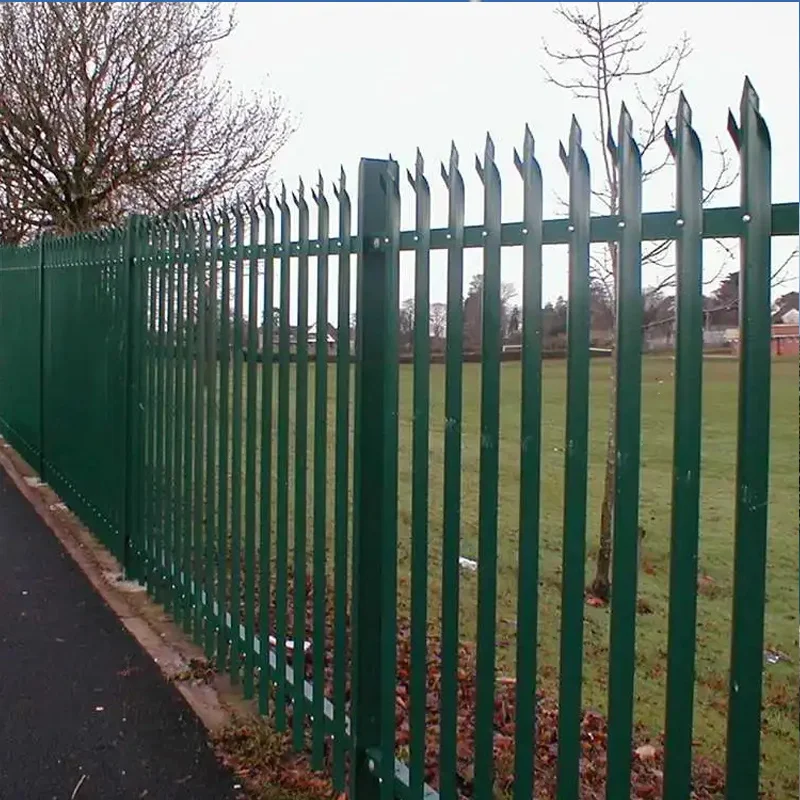

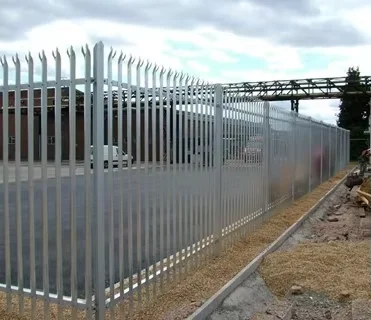

Application
