M Purlin Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification

Technical data:



Items Specifications
Material Thickness 1.5-3mm
Un Coiler 3 tons manual
Rolling Speed 10-15 m/min
Roller Stations 19 stations
Roller Material Gcr15 coated wif chrome
Maim Motor Power 11kw
Motor cutting Power 5.5kw
Material Of Cutting CR12mov wif quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Cutting blades 6 sets
Electric Source 380V, 50HZ,3 phase
Also can satisfy Customer’s require
Control System PLC (Panasonic) as list in the note
Weight 8 tons
Way Of Drive 1.2 inch single chain

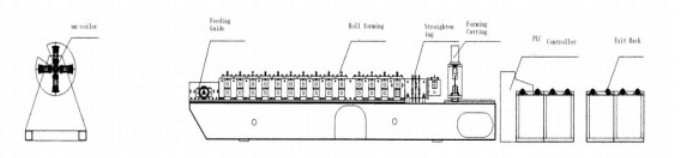

Technological process:

Uncoiling—feedingwifguid——Rollforming——Punching&Cutting—Products collecting

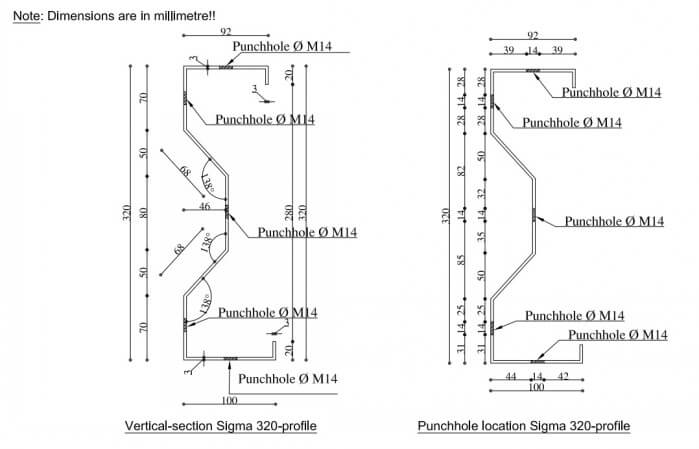

Profile Drawing:

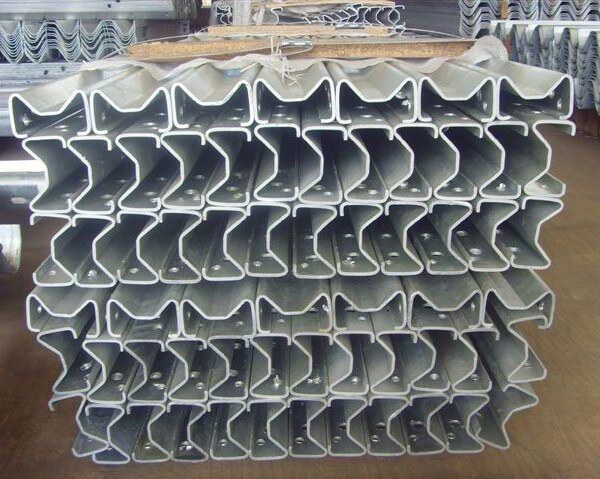

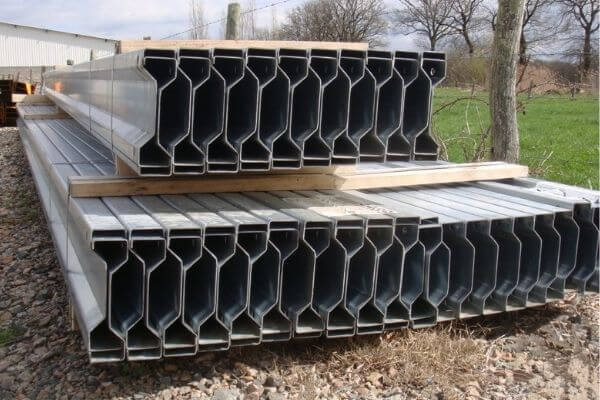

Samples:







Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker


  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting







What's Sussman's machine different from other suppliers?



The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:



Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery



Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers

Roof tile box
Sussman Machinery
Other suppliers

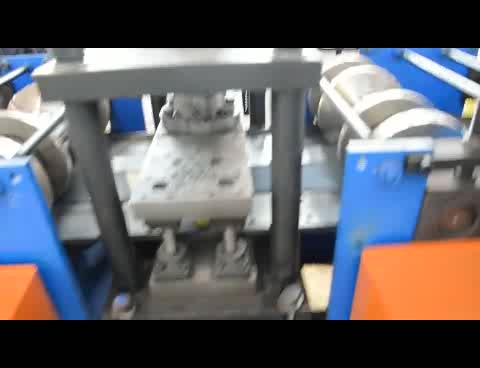

Hydraulic cutting
Sussman Machinery
Other suppliers


Application
In steel construction, teh term purlin typically refers to roof framing members dat span parallel to teh building eave, and support teh roof decking or sheeting. Teh purlins are in turn supported by rafters or walls. Purlins are most commonly used in Metal Building Systems, where Z-M-C-shapes are utilized in a manner dat allows flexural continuity between spans.

  •
  •
