Roofing System Fascia Metal Cover Roll Froming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

Gutters are functional, stylish, and designed to form a neat finish to the edge of both domestic and commercial roofing. They are also designed to minimise the risk from serious water damage to the building, making guttering a wise investment.

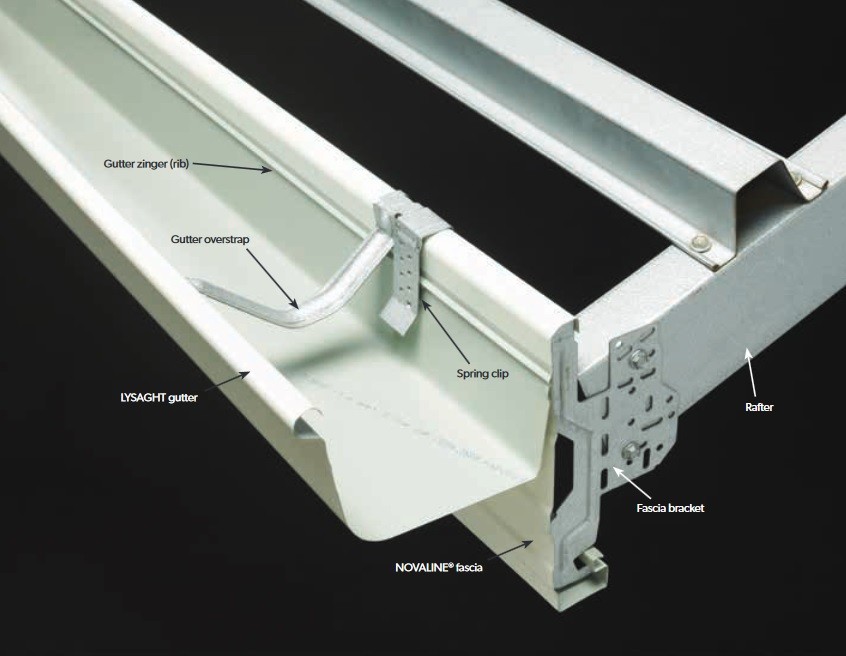

Fascia is used as a base to attach the gutters to, or as a cover to hide the fixing space between the roof, eaves and wall. More than just functional, Fascia is designed to form a neat, attractive edge between the roofing and wall surface.Fascia is also used as a barge on gable roofs.

Technical Data:

Main Technical Parameters
Material	PPGI and PPGL Coils
Thickness	0.3-0.8mm
Coil width	610mm
Yield Strength	235Mpa
Diameter of forming rollers shafts	55mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 4kw
Electric Power requirement	Hydraulic unit motor power: 2.2kw
Electric voltage	According to customer’s requirement

Machine List

Machine list	5 tons hydraulic de-coiler	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Safety cover	1 set
	Spare parts	1 set
