Facia Gutter Roll Forming Machine

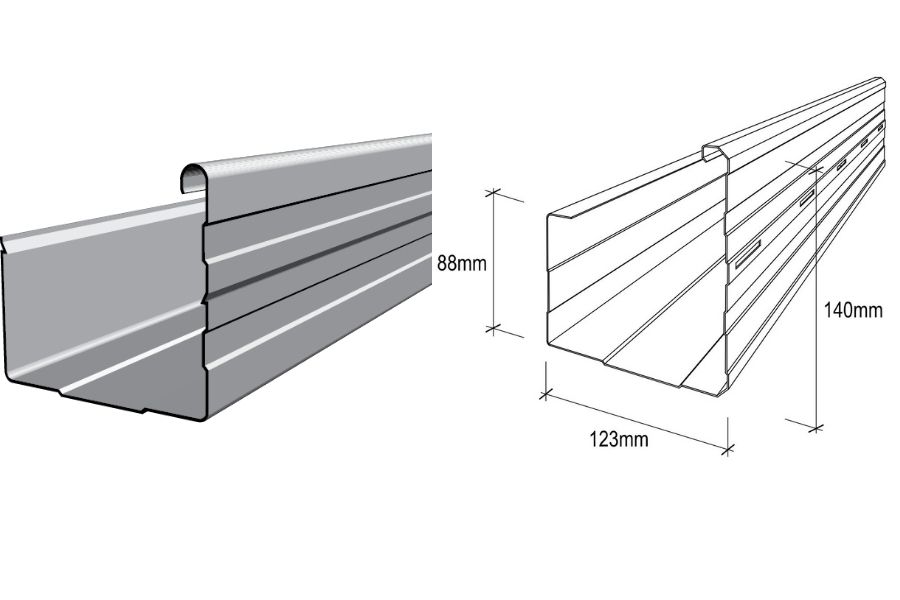

Fascia gutter is a square feature gutter providing a clean appearance and the strength advantages of a stiffened back.
The gutter has a large water carrying capacity and a high front (with overflow slots if required) to conceal the edge of the roofline. The capping mitres at the corners neatly to provide a clean finish. Ideal for carports and flat roofs.
Technique Data:
|
Item NO |
Description |
Offered specification |
|
1.0 |
Roll forming machine |
|
|
1.1 |
Rolling speed |
0-10m/min(not include cutting time) |
|
1.2 |
Rolling thickness |
0.3-0.8mm |
|
1.3 |
Raw material |
Galvanized steel coils G550 |
|
1.6 |
dimension |
5500×700×1000(mm) |
|
1.7 |
Roller stations |
About 22 stations |
|
1.8 |
Roller material |
45#forge steel, coated with chrome |
|
1.9 |
Shaft diameter |
Φ70mm,material is 45# forge steel |
|
1.10 |
Transmission |
By chain 1 inch |
|
1.11 |
Material of chain |
45# forged steel with frequency quenching, 12A |
|
1.12 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
|
1.13 |
Tolerance |
6m+-0.5mm |
|
1.14 |
Voltage |
380v, 50hz, 3phases |
|
1.15 |
Main motor power |
7.5 KW |
Machine List:
|
No |
Name |
quantity |
|
1 |
3 ton passive de-coiler |
1 set |
|
2 |
Main roll forming machine |
1 set |
|
3 |
Control box |
1 unit |
|
4 |
Hydraulic station |
1 unit |
|
5 |
Out tables |
1 unit |
|
6 |
Safety cover |
1 unit |
Profile Drawing:

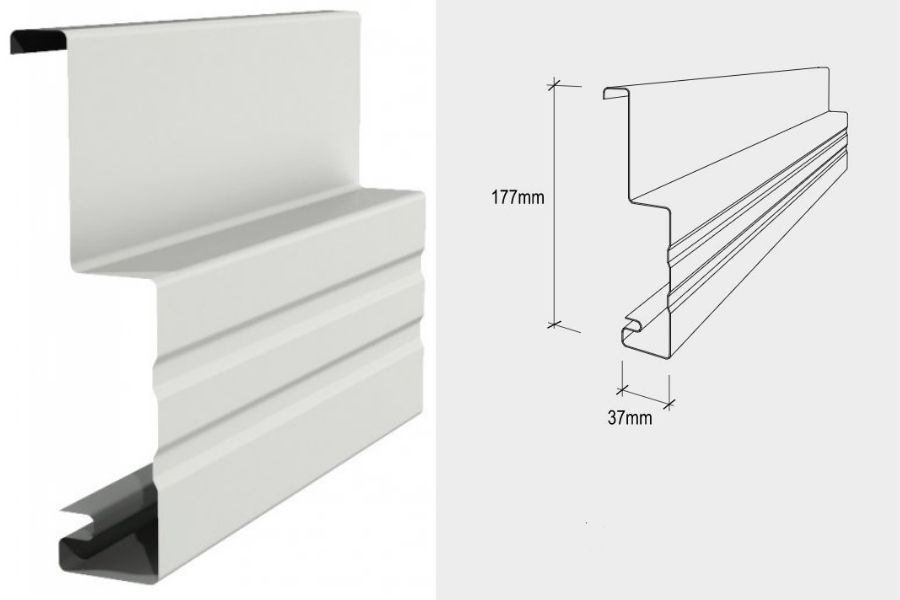

Rebated Fascia
Fielders Rebated Fascia lasts for years with no additional maintenance or painting. Perfect to accommodate the structure of the building or roof, or as a design feature.

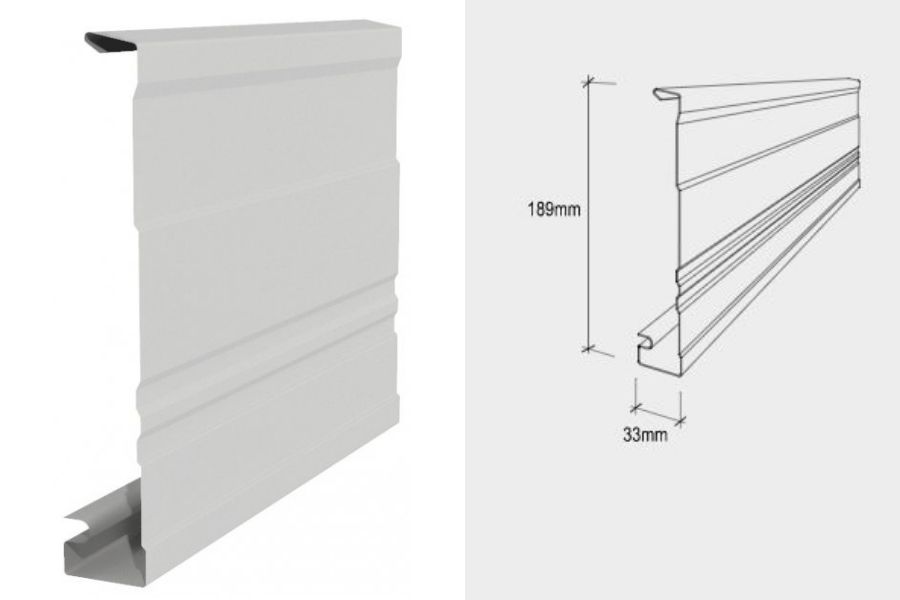

Fascia Cover
To complement Fielders unique steel roofing & building products, Fielders offer a comprehensive range of Steel Fascia to suit their gutter profiles for maintenance free solutions for new and old buildings.
Fielders Zincalume and Colorbond Steel Fascia system offers the new home builder an easily installed maintenance free fascia at a fraction of the cost of timber.
Fascia Covering fits easily over old timber or asbestos fascia, lasts for years with: – No maintenance – No painting – Full Colorbond Steel range – Rollform ribs for greater strength. Screws or nails into place. Install guttering with straps. Fascia is a non-load bearing product.

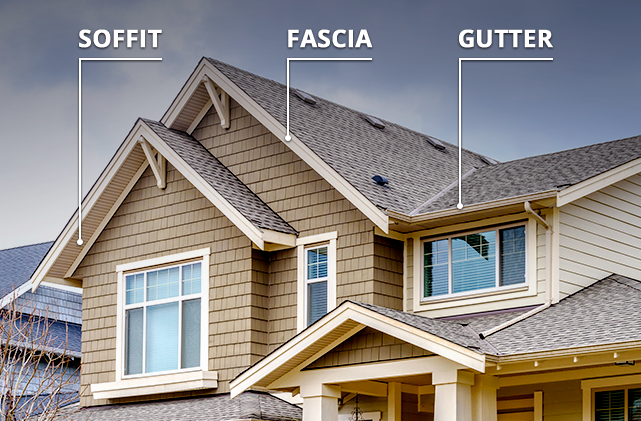

Application:
