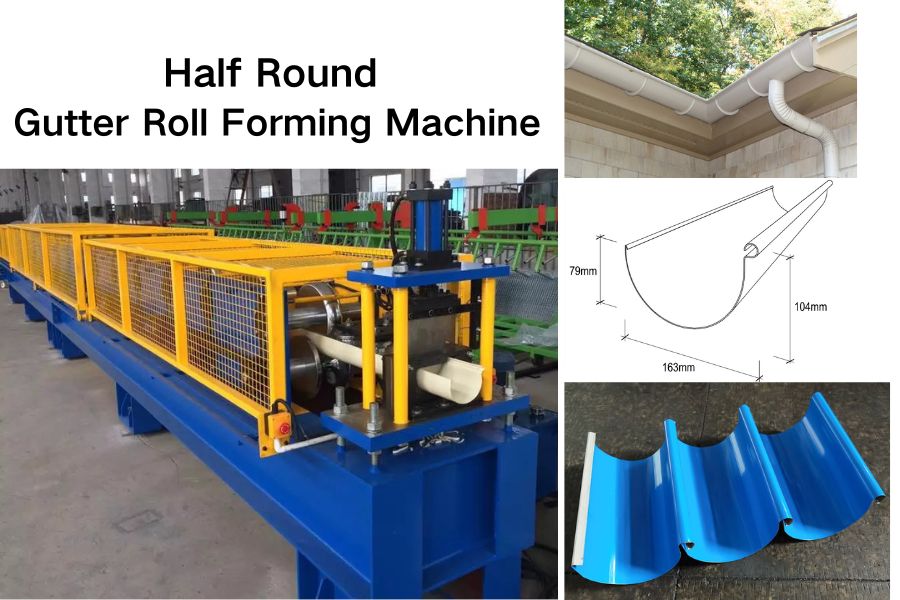

Painted Aluminum Half Round Reverse Bead Gutters bring a traditional look that's available in a range of different colors. Aluminum gutters are lightweight, durable and easy to install.
These are a popular choice for homeowners looking for the half round style with the hidden hanger bracket. Any interests, welcome to inquiry!
Technical Data:
tem NO
|
Description |
Offered specification |
1.0
|
Roll forming machine
|
|
1.1
|
Rolling speed
|
10-12 meters/min(not include cutting time)
|
1.2
|
Rolling thickness
|
0.3mm-0.8mm
|
1.3
|
Raw material
|
Color painted coils, Aluminium, Zinc, Galvanized
|
1.4
|
Main Motor
|
7.5KW
|
1.5
|
Dimension
|
About 5000×1600×1200(mm)
|
1.6
|
Roller stations
|
About 7 stations
|
1.7
|
Roller material
|
45#forge steel, coated with chrome
|
1.8
|
Shaft diameter
|
Φ76mm
|
1.9
|
Transmission
|
By chain 1.2 inch
|
1.10
|
Material of chain
|
45# forged steel with frequency quenching, 12A
|
1.11
|
Material of cutting
|
Cr12Mov with quench HRC58-62°
|
1.12
|
Tolerance
|
10m+-1.5mm
|
1.13
|
Hydraulic station
|
4kw
|
Machine List:
No
|
Name
|
quantity
|
1
|
3 ton passive de-coiler
|
1 set
|
2
|
Main roll forming machine
|
1 set
|
3
|
Control box
|
1 unit
|
4
|
Hydraulic station
|
1 unit
|
5
|
Spare part
|
1 packages
|
6
|
Safety Cover
|
1 set
|
Profile Drawing:

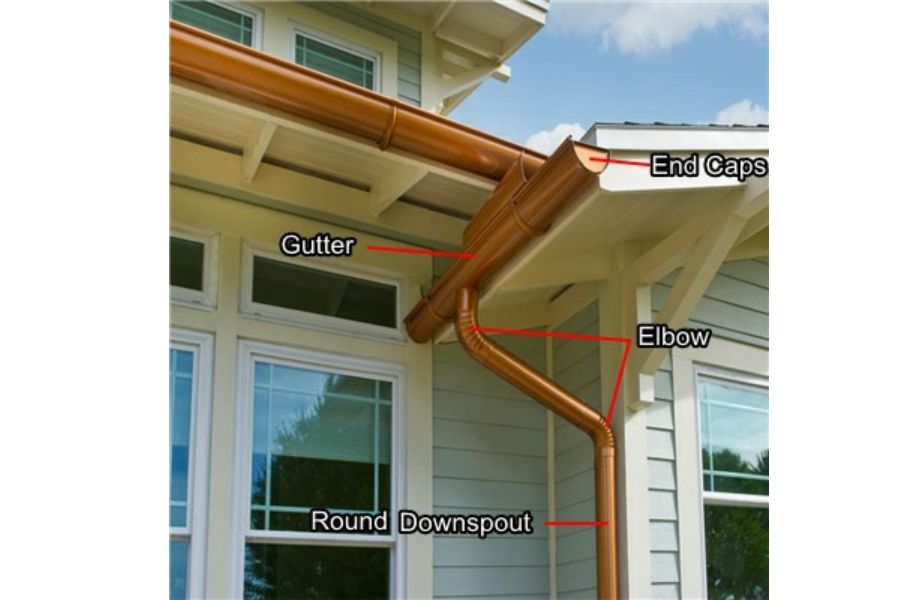

Application:
