Item NO |
Description |
Offered specification |
1.1 |
Rolling speed |
About 10-12m/min |
1.2 |
Rolling thickness |
0.6-0.8mm |
1.3 |
Raw material |
Galvanized steel coils or PPGI |
1.4 |
Main motor |
7.5kw |
1.5 |
Hydraulic motor |
11kw |
1.6 |
dimension |
7500×700×1000(mm) |
1.7 |
Roller stations |
About 8 stations |
1.8 |
Roller material |
45#forge steel, coated with chrome |
1.9 |
Shaft diameter |
Φ70mm,material is 45# forge steel |
1.10 |
Transmission |
By chain |
1.11 |
Material of chain |
45# forged steel with frequency quenching, 12A |
1.12 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
1.13 |
Tolerance |
6m+-0.5mm |
1.14 |
Frame |
H type steel |
1.15 |
Voltage |
380v, 50hz, 3phases |
Working Flow:
Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

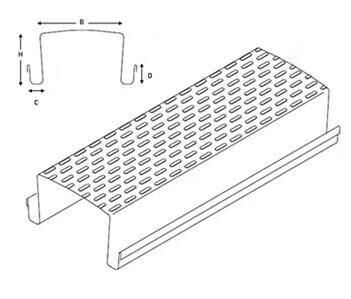

Profile Drawing:
We could make machine solution for Round Gutter, Square Gutter, Flume Gutter, Gutter Sheet or according to your profile drawing.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.
Some Samples:
What's Sussman's machine different from other suppliers?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
A rain gutter also known as a "rain catcher", is a narrow channel, or trough, forming the component of a roof system which collects and diverts rainwater away from the roof edge.
The main purpose of a rain gutter is to protect a building's foundation by channeling water away from its base. The gutter also helps to reduce erosion, prevents leaks in basements and crawlspaces, protects painted or stained surfaces by reducing exposure to water,and provides a means to collect rainwater for later use.
Gutters are also very effective at keeping building egress areas clear of falling water. Going into a house entrance below water running straight off the roof in a heavy down pour is literally like taking a shower. This major reduction in moisture also helps to keep entrance surfaces dry and free of moss, slime, algae and other growths likely to cause slips.
Rain gutters can be made from a variety of materials such as cast iron, lead, zinc, galvanised steel, painted steel, copper, paintedaluminium, PVC (and other plastics), concrete, stone, and wood.
Water collected by a rain gutter is fed, usually via a downspout or "downpipe" (traditionally called a leader or conductor), from the roof edge to the base of the building where it is either discharged or collected.Water from rain gutters may be collected in arain barrel or a cistern.
