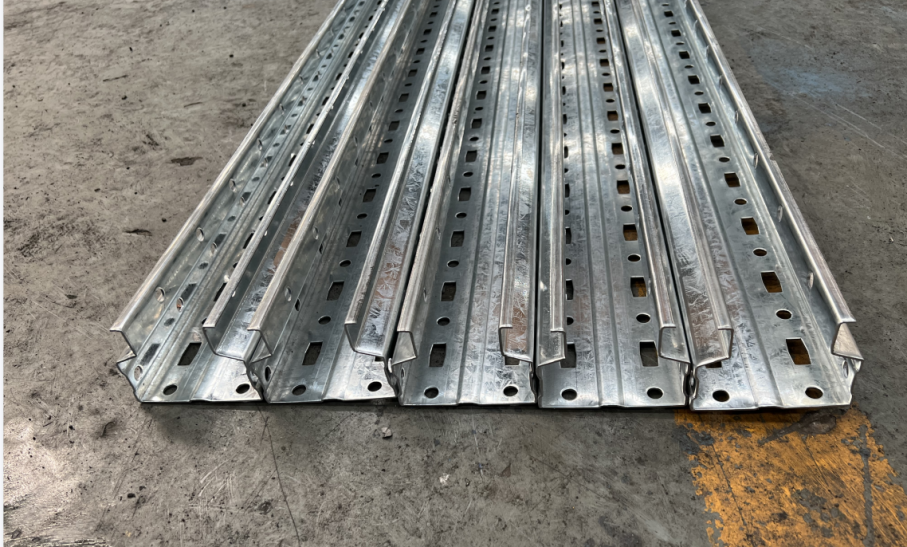

Upright racking Roll forming machine
Warehouse Racking Upright Post Roll Forming Machine With 3T Hydraulic Uncoiler
|
The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc. |
|
|
Model number |
Rack Roll Forming Machine |
|
Material Thickness |
1.5-3.0mm |
|
Product speed |
0-12meter / per minute |
|
Roller Stations |
About 18 stations |
|
Roller Material |
Gcr15 Steel with quenching |
|
Shaft Material |
45# Advanced Steel (Diameter: 76mm), thermal refining |
|
Material Of Cutting |
CR12Mov with quench treatment |
|
Electronic control |
PLC control with touch screen |
|
Weight |
About 10 tons |
Machine parts list
|
S.N |
Equipment name |
Quantity |
|
1 |
3T hydraulic un-coiler |
1 set |
|
2 |
Leveling device 400mm |
1 set |
|
3 |
Servo feeding device 400mm |
1 unit |
|
4 |
Press machineJH21-80 |
1 unit |
|
5 |

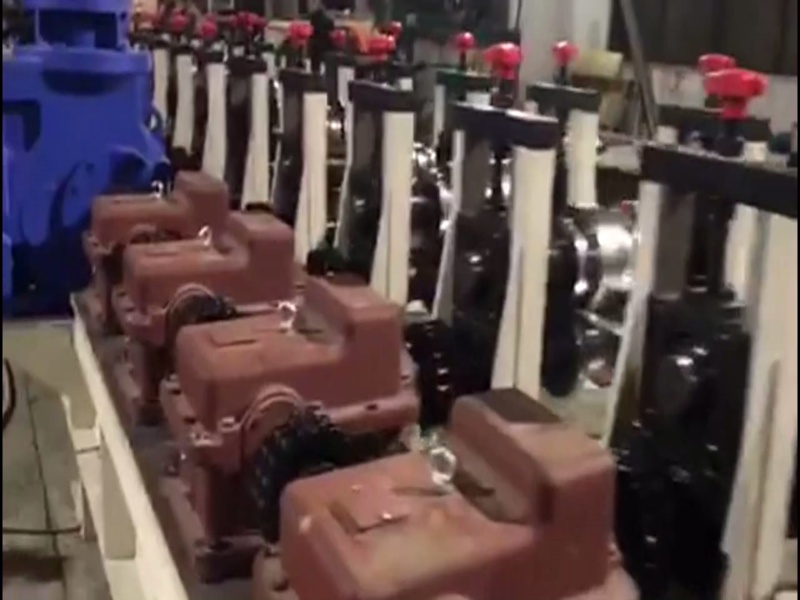

Main roll forming machine |
1 set |
|
6 |

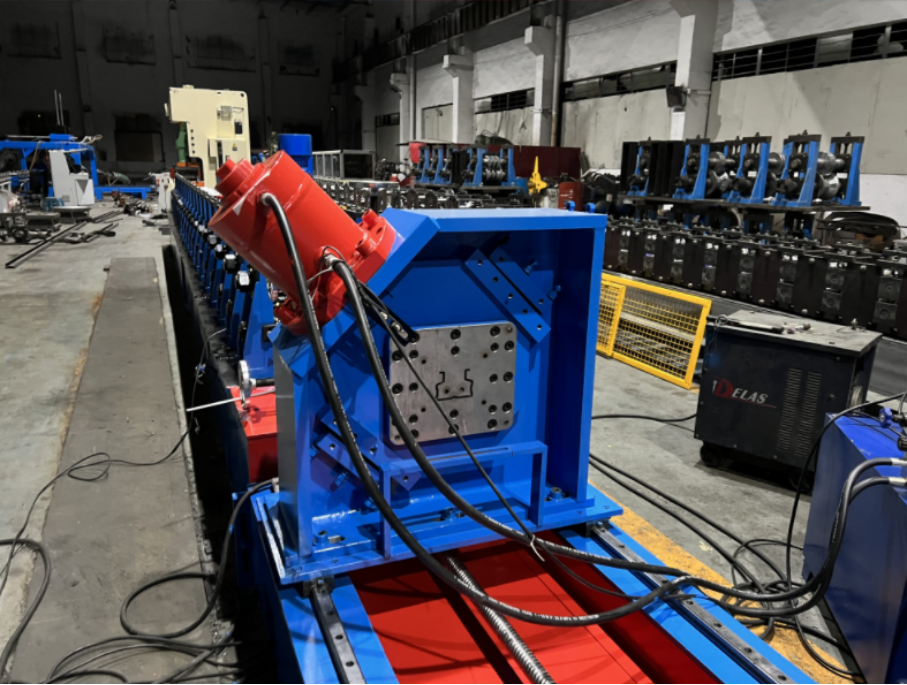

Cutting holder |
1 set |
|
7 |
Hydraulic station |
1 set |
|
8 |
Control system ( including control box) |
1 set |
|
9 |
Out tables |
2 units |
|
10 |
Spare parts |
1 package |
|
11 |
Cutting dies |
1 set |
|
12 |
Punching die set |
1 set |
