Racking box beam Roll forming machine

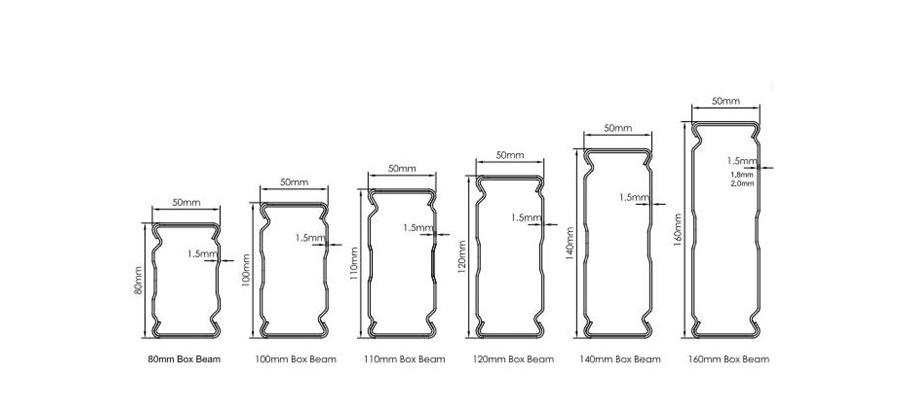

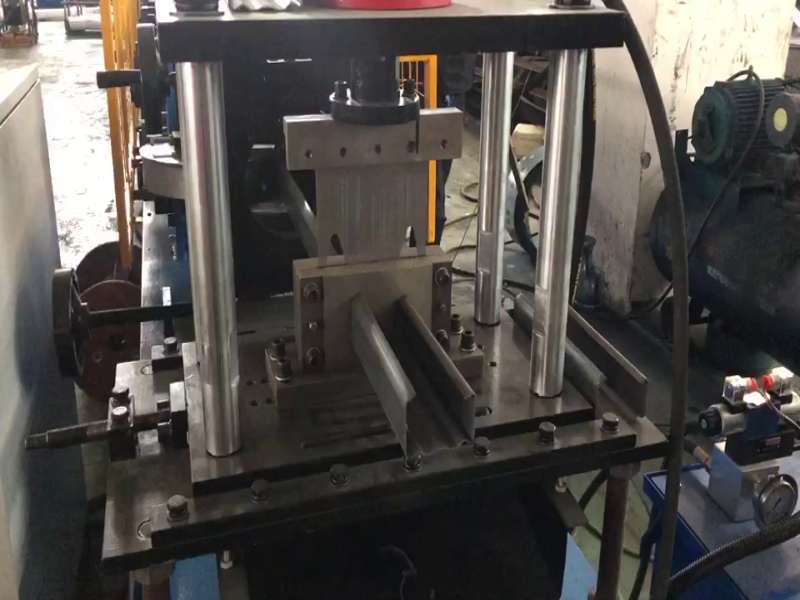

We are the professional manufacturer of making Box beam roll forming machine . This kind of machine can make different sizes according to customer requirement, it is two C profiles are locked together to form a box beam, the height of the beam can be adjusted by manual or automatic mode basis of the requirement of customer . The cutting mode can be following hydraulic cutting system. Beam roll forming machine can form the material thickness 1.0-2.0mm, and raw material is pre-galvanized steel, hot-rolled and cold-rolled steel. And standard size of the upright is 50mm, 95mm 110mm,120mm,130mm, 140mm,150mm, 160mm.

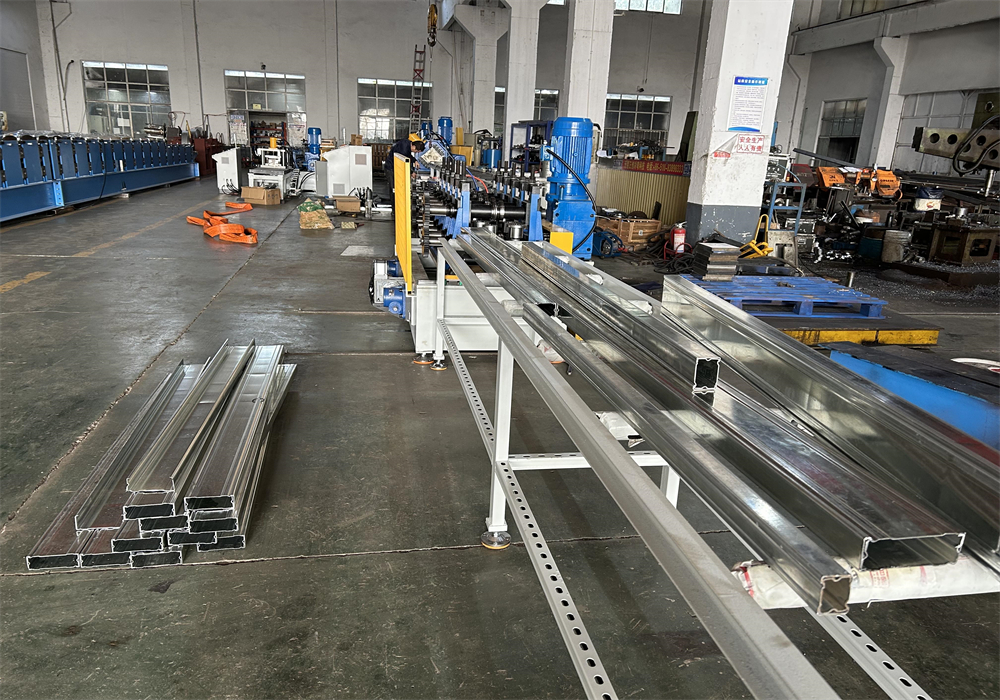

The whole line includes the decoiler,  roll forming machine, cutting blade, automatic conveyor, re-forming machine, output table , electric system, etc. Please contact us if you want to learn more details of this kind of machine.
description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Information

Material Info:

Material type: galvanized steel

Material thickness: 1.5 -2.0mm

Yield Strength: 350MPA

Tolerance:

Profile: +/-0.5mm as drawing

Cutting Length Tolerance + / - 1 mm

Voltage:380v, 50 Hz, 3phase

Manual de-coiler device:

Coil ID:508mm

Coil OD:1200mm

Max. Coil weight: 3Tons

Parameter

Roller Former Machine Specification:

Forming speed: 0~15M/Min

Product speed: 8~10M/min

Roller material: GCR15 bearing steel

Forming stations: 15 stations + 4 folded machine

Shaft diameter: 75mm

Shaft material: 40Cr,chrome-plated

Forming structure: Guiding column,chrome-plated

Machine base frame: tube welding structure ,milling gauntry,punch holes automatic

Transmission type: chain

Motor power of main machine: 15KW

Bearing: HRB brand ,needle roll bearing, taper bearing

Bolt: 8.8 grades

Weight :about 8 tons

Cutting device:

Cutting die : Cr12MoV
