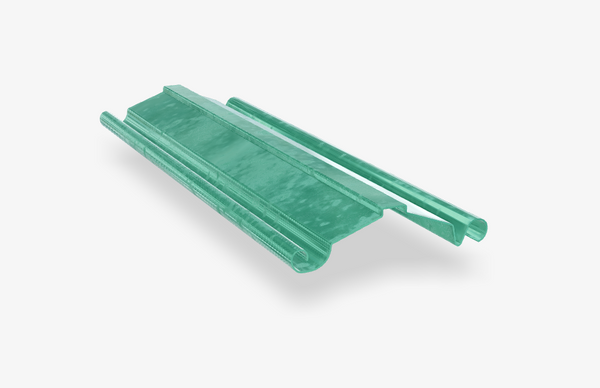

Galvanized profile widely used in the ironworks industry for the manufacture of folding curtains for shops, warehouses, and industrial buildings. Available with a transparent green galvanized primer coating that provides excellent adhesion to subsequent paint applications.
The Tira para Cortina Europrea is popular in Mexico. If you are interested in, welcome to inquiry!
Techncial Data:
Items
|
Specifications
|
|
Material of coil
|
Material Thickness
|
0.7 -1.2 mm galvanized
|
Un Coiler
|
3 tons manual
|
|
Forming system
|
Rolling Speed
|
About 0-10 m/min
|
Roller Stations
|
About 16 stations
|
|
Roller Material
|
Gcr15# Steel with quenching 60mm shaft
|
|
Maim Motor Power
|
7.5 kw
|
|
Hydraulic cutting Power
|
4 kw
|
|
Cutting
system |
Material Of Cutting
|
CR12Mov with quench treatment
|
Hardness
|
HRC58-62
|
|
Tolerance
|
+-1.5mm
|
|
Electrical control system
|
Electric Source
|
380V, 50HZ,3 phase
|
Control System
|
PLC with touch screen
|
|
Weight
|
About 4 tons
|
|
Way Of Drive
|
1 inch single chain
|
|
Size of machine
|
About Length 6500mm* Width 600mm* Height 1000mm
|
Machine List:
name
|
quantity (set)
|
3 Tons De-coiler
|
1 set
|
Main roll forming machine
|
1 set
|
Hydraulic Cutting
|
1 set
|
4 meters run out table
|
1 set
|
Control Box
|
1 set
|
Spare parts
|
1 package
|
Mesh Safety Cover
|
1 set
|
Working flow:
Decoiler—→Level device—→Main roll forming machine—→Hydraulic punching—hydraulic cutting→ Run out table

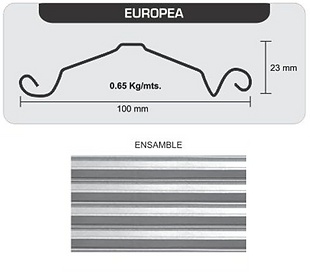

Profile Drawing:
Sample Pictures:

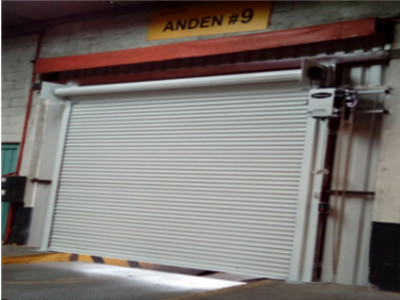

Application:
