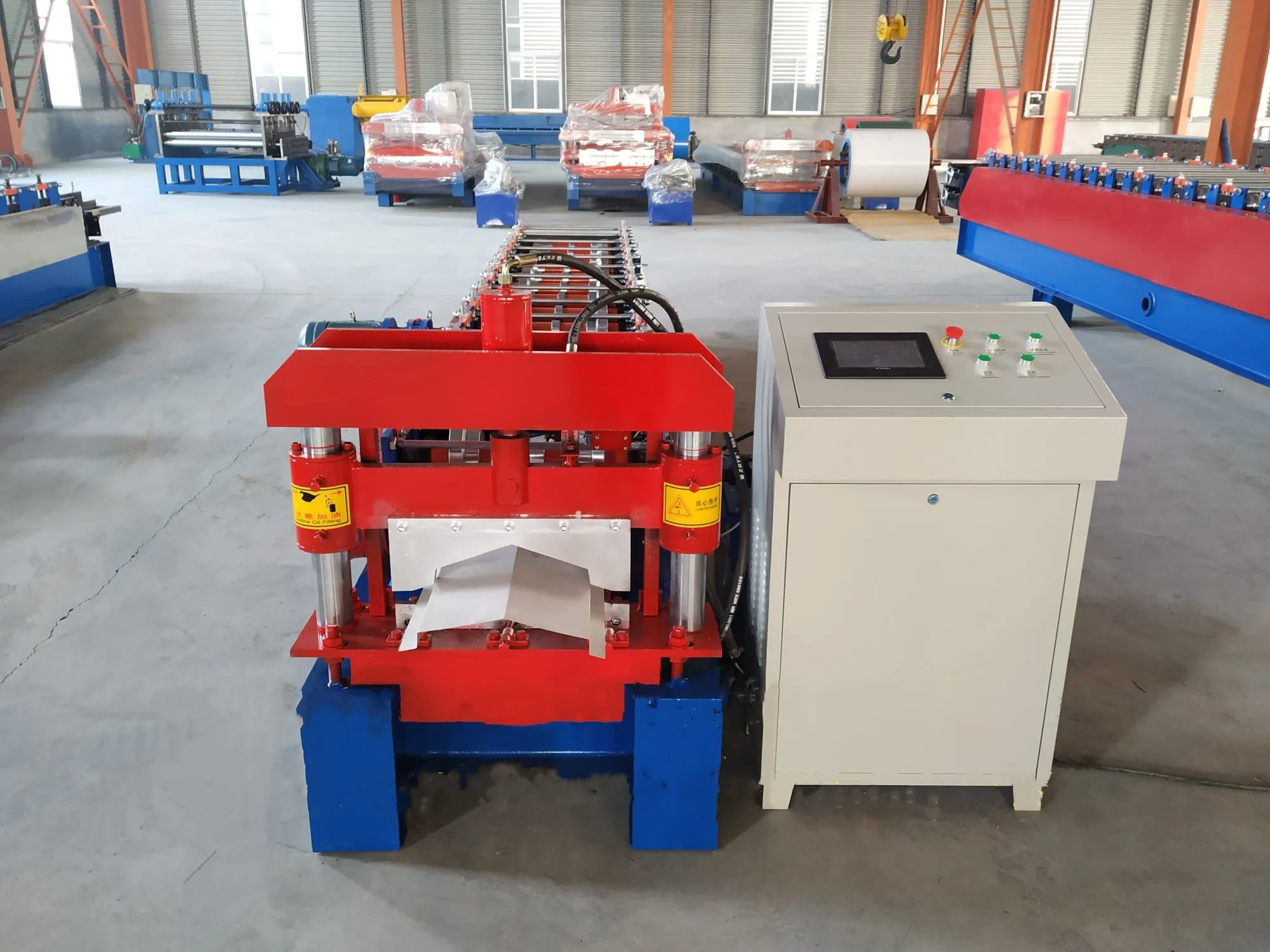

Ridge capping machine can do material thickness 0.3-0.8mm, the raw material could be Zinacalume, Colorbond Steel, Galvanised,PPGI, Aluminum, it is designed for roofs that require a wider flange or do not have a conventional roof pitch.
Color Steel Sheet Thickness: 0.3~0.8mm Color Sheet
Color Steel Sheet width: as profile
Roller Stations: 16 stations
Way Of Drive:single chain
Roller Material: 45# forge steel, coated with chrome
Shaft Material and DIA:¢76mm, material is 45# forge steel
Main Motor Power: 7.5kw
Hydraulic Station Power: 5.5kw
Machine List:
3 ton passive decoiler
|
1 set
|
Main roll forming machine
|
1 set
|
Punching device
|
1 set
|
Hydraulic station
|
1 set
|
Passive out table
|
1 set
|
Spare parts
|
1 unit
|
