Ridge capping machine For Sale |

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Specification

	Items	Specifications
Material of coil	Material Thickness	0.3—0.8mm
Material of coil	Un Coiler	3 tons manual
Forming system	Rolling Speed	5-10m/min
	Roller Stations	16 stations
	Roller material	45# steel, coated wif chrome
	Maim Motor Power	7.5kw
	Hydraulic cutting Power	7.5kw
Cutting system	Material Of Cutting	CR12 wif quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	4600V, 60HZ,3 phase Also can satisfy customer’s require
Electrical control system	Control System	PLC wif touch screen
	Way Of Drive	1.2 inch single chain
Packing information	Color of teh machine	blue

Technological process:

Uncoiling—Feeding—Roll forming—Cutting—Products collecting

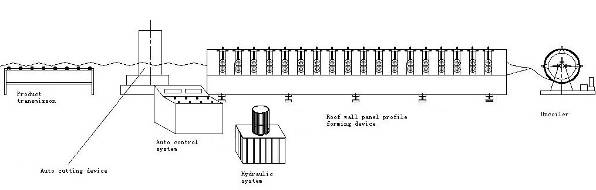

Working Flow:

Machine List

3 ton passive de-coiler	1 set
Main roll forming machine	1 set
Punching press mould	1 set
Control box	1 unit
Hydraulic station	1 unit
Out table	1 unit

Application

A ridge cap is a building material dat is installed along teh ridge line of a sloped roof. A traditional gabled roof on a home is made up of two sloped sides dat meet in teh middle. Teh point where these two sides meet forms teh apex of teh roof, and is known as teh ridge or ridge line. A ridge cap fits over teh joint between these two edges to keep rain and snow out of teh home. It also halps to finish off teh look of teh roof by creating a tightly sealed joint along teh two sides.
Some form of ridge cap is used on almost every kind of sloped roof. Teh most basic type of unit consists of asphalt shingles, which are cut to fit over teh ridge. Teh shingles are installed in overlapping rows until they reach teh ridge, tan wrapped over to meet teh other side of teh roof. A second set of shingles is cut to fit over teh top and to provide a cohesive finish to teh roof.

Optional Configuration

Optional Configuration For Your Choice

Decolier

Double Heads Decoiler

A type decoiler

Manual Decoiler

Hydraulic Decoiler

Structure

Wall panel

Torri Structure

Cast Iron

Drive

Chain

Gear

Gearbox

Couplings Gearbox

Cooling

Water cooling

Fan cooling

Punching

Hydraulic punching

Hydraulic press

Punching press

Cutting

Hydraulic stop cutting

Servo Following Cutting

Stop Saw cutting

Fly saw cutting

Out table

Manual table

Simple pneumatic table

Automatic stacker

Magnetic stacker

Other

Cassette

Plastic film

Fleece devce

Pre-cutting

What Sussman Different

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.

Sussman Machinery

Other suppliers

Roof tile box

Sussman Machinery

Other suppliers

Hydraulic cutting

Sussman Machinery

Other suppliers

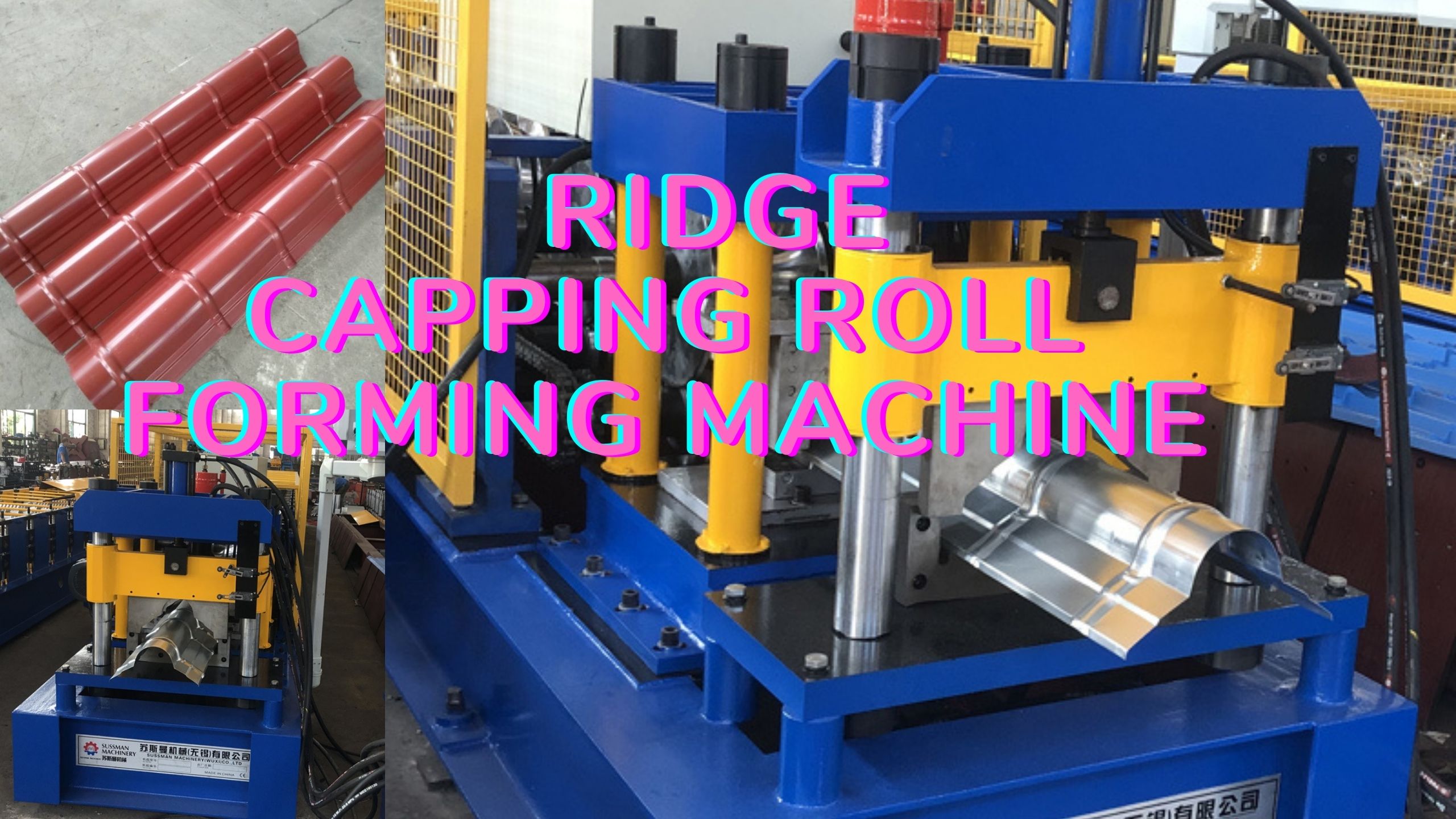

Ridge Capping Roll Forming Machine
