15m/min Continuous Metal PU Sandwich Panel Making Machine Production Line

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specifications

 1. PU foam thickness: 16 mm, aluminum and galvanized coil thickness 0.27-0.5 mm
 2. Linear Speed of production: 16 meters/min
 3. Maximum Roller Forming speed: 20 meters/min
 4. Reciprocating times of injection head per minute<60
 5. Production type: totally continuous production with PLC controlling
 6. Composite structure:position fixed by double Aluminum block tracker
 7. Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable
 8. Main Power of production 100 KW
 9. Cutting: pneumatic piston driving, non-stop cutting via sliding table
 10. Electronic controlling system: full-frequency PLC controlling system.

Machine List
NO. Composing of product line Details Amount
1 Decoiler 5 tons hydraulic decoiler with coil car 1
2 Embossing Machine For Embossing Patterns 1

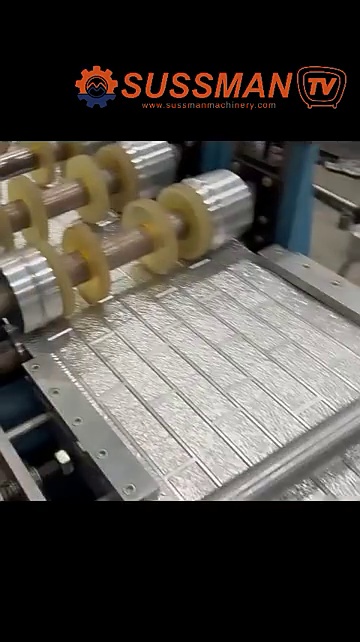

3 Roll Forming Machine
For 380mm flat
1
4 Water Cooling Machine For Cooling 1
5 PU Foaming machine High pressure 1
6 Assembling machine
(Laminator)
Pre-heating machine 1
    Al Film Feeding Machine with Air Shaft 1
    30 meters PU assembling conveyor system(aluminium block) 1
    PVC Film Device 1
7 Coating Machine Second Time Coating Machine(optional) 1
8 Control System
PLC Control System(Delta)
1
9
Servo Following Cutting
Panel automatically cutting system with dust collector 1
10 Passive Out-table
6 Meters in length
1
Application
