Square Downspout Tube Roll Forming machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Description
|
Forming stations:
|
About 24 stations or according to you profile drawings
|
|
Machine structure:
|
Wall panel structure
|
|
Material thickness
|
0.3-0.8mm
|
|
Forming speed
|
5-12m/min (EXCLUDING CUTTING STOP TIME)
|
|
Main motor power
|
7.5KW
|
|
Hydraulic station power
|
7.5KW
|
|
Rollers material :
|
45# forged steel, surface coated with chrome
|
|
Way of drive :
|
Chain drive
|
|
Raw material request:
|
Galvanized steel,PPGI, Aluminum
|
|
Cutting blade material
|
Cr12Mov quenching treatment
|
|
Electrical controlling system
|
Whole line adopted PLC control, cut to length tolerance≤2mm
|
|
Inverter :
|
Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
|
|
PLC :
|
Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
|

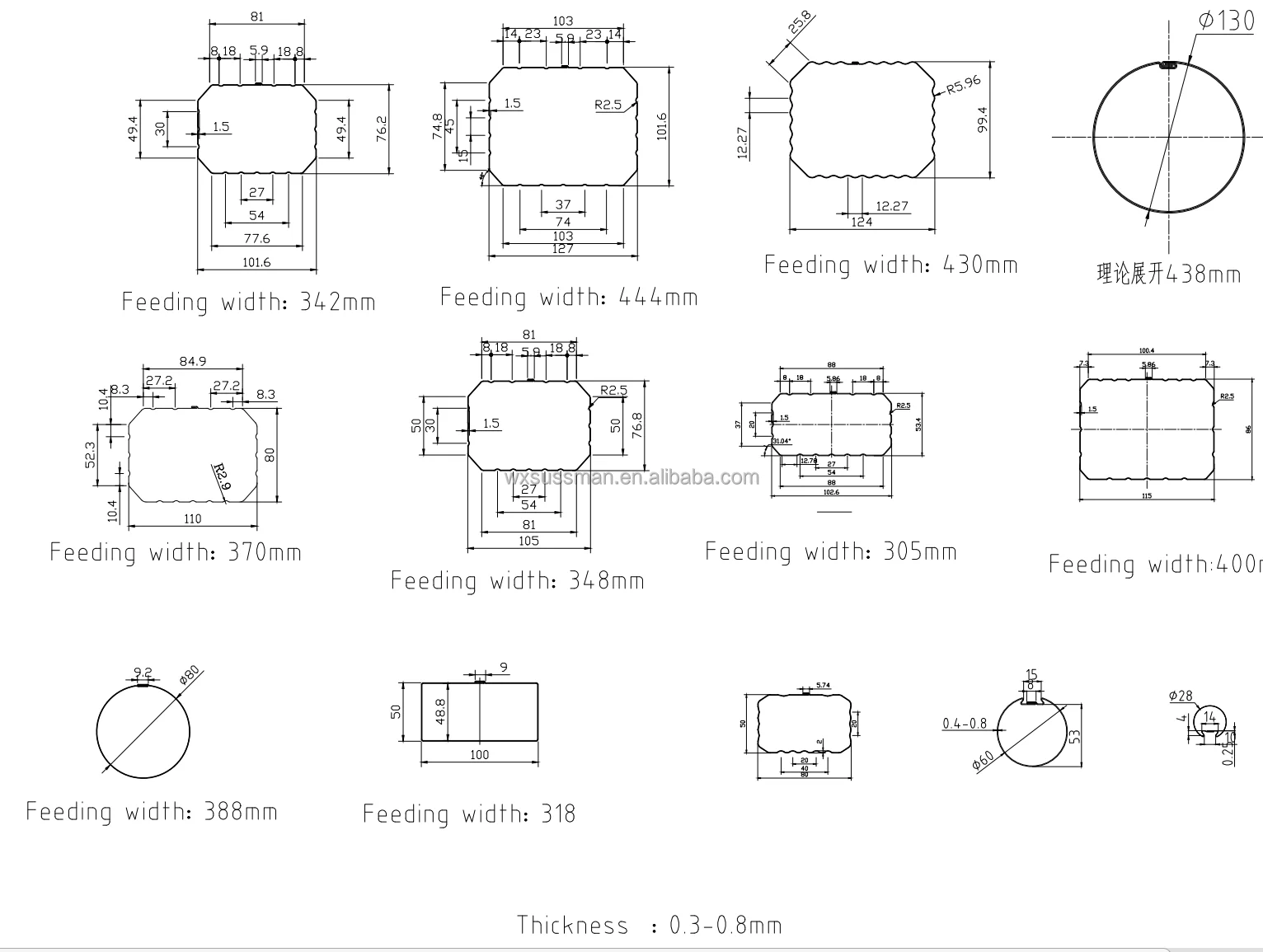

Profile we can make

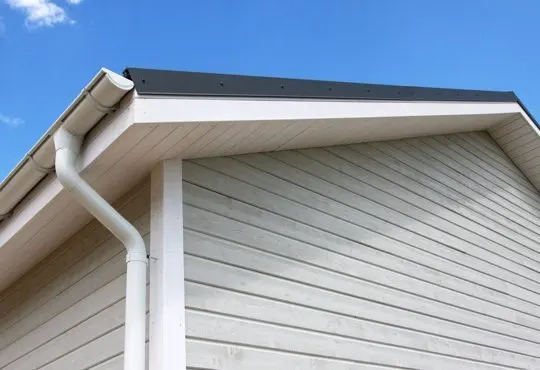

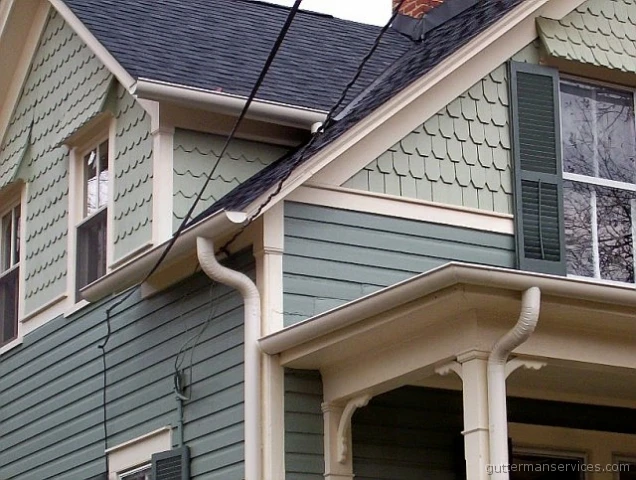

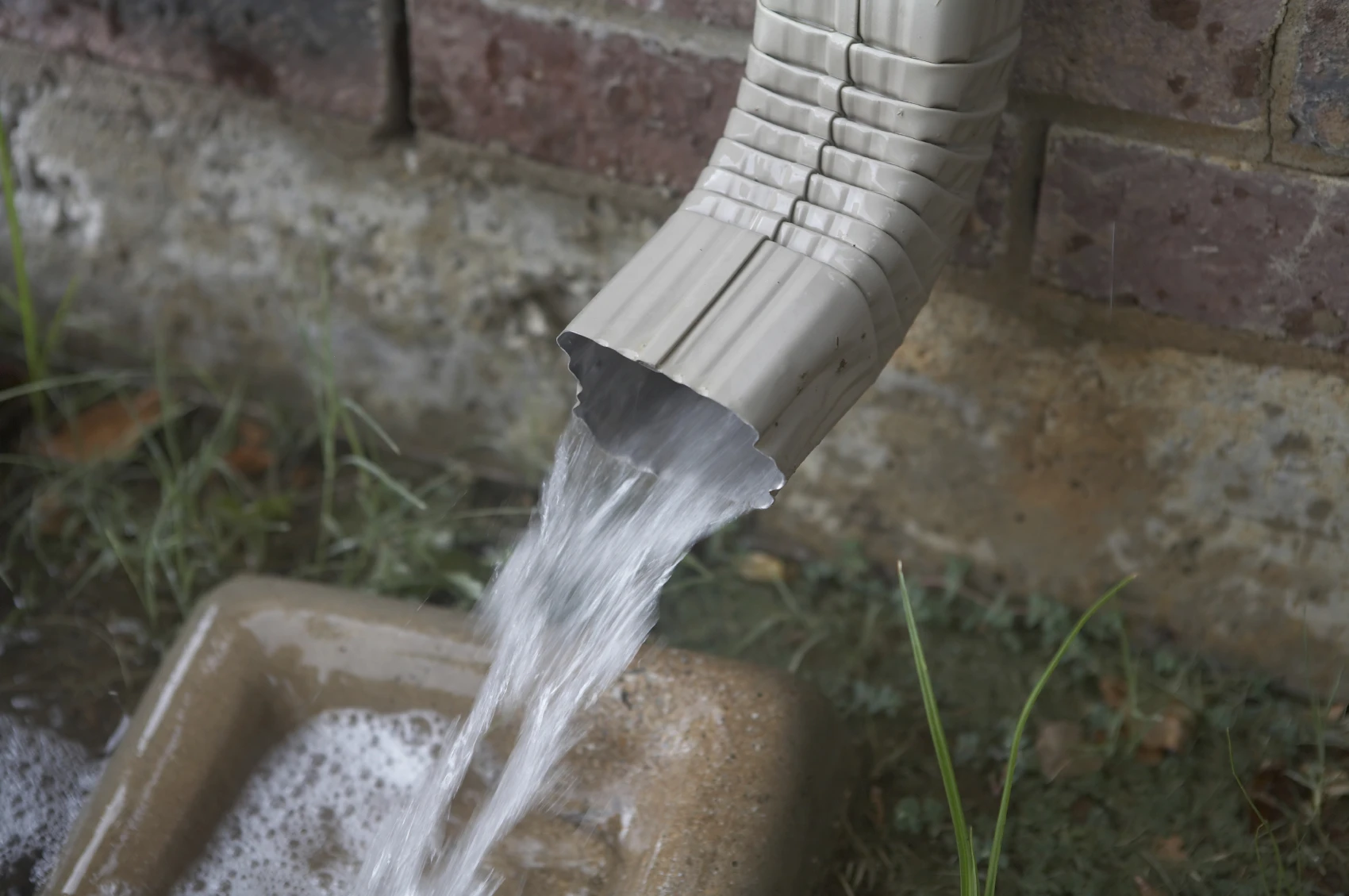

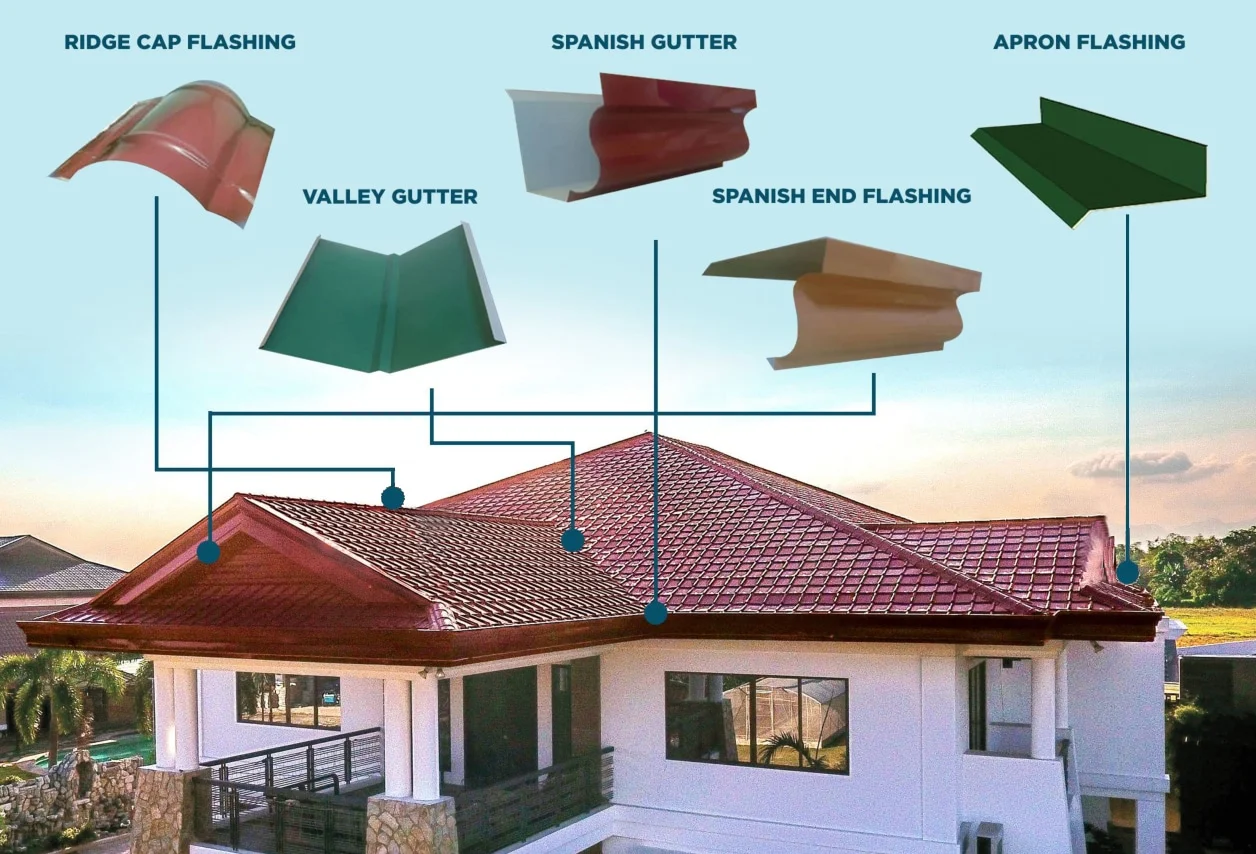

Product Application
Optional configuration
Optional Configuration For Your Choice
-

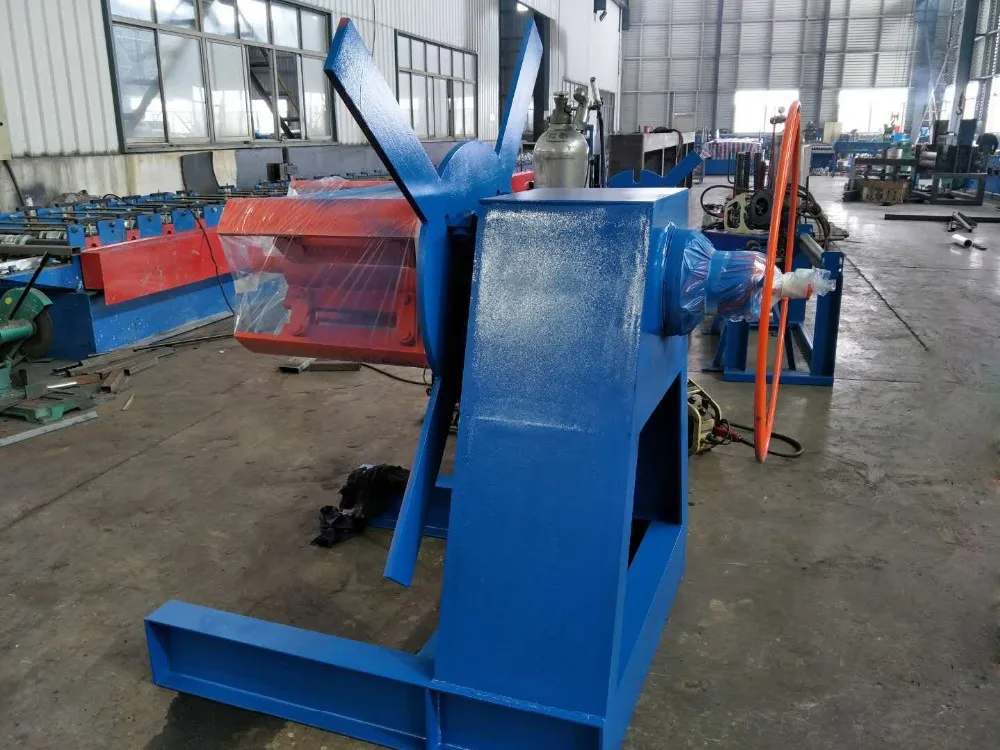

DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-

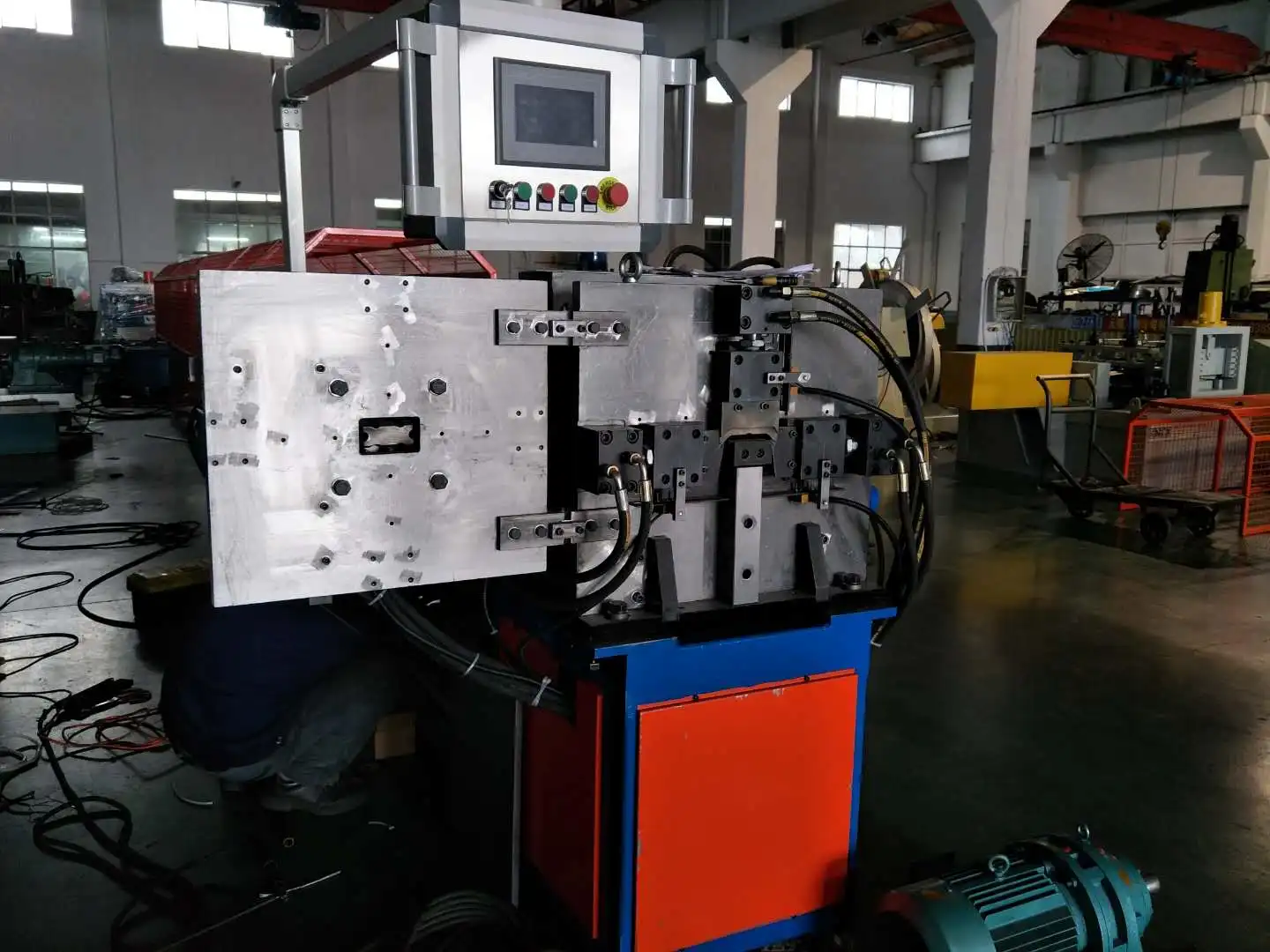

CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
