Russia Open Ceiling Suspended Cellular Grid Ceilings Grilyato Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

Suspended cellular ceiling Grilyato is great for masking any engineering systems and communications located on the ceiling. At the same time, the design does not complicate the operation of the systems and allows maintenance without problems due to the dismantling of individual cassettes. Grilyato ceilings also reduce the overall noise level in the room due to the cellular structure, contributing to the creation of more comfortable conditions for work or leisure.

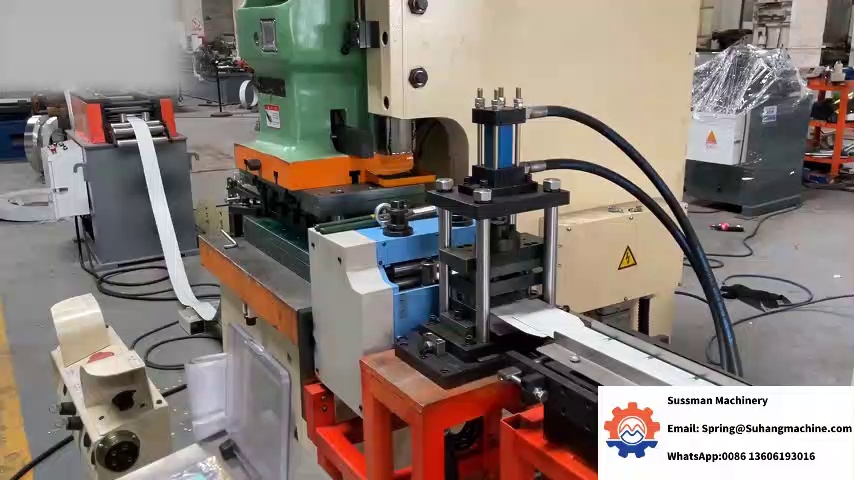

Open Cell Metal Ceiling production line is mainly use to produce the main and cross for open cell metal ceiling. There are decoiler, straightener, perforation press, cut-to-length and roll forming machine in the production line with electric system and hydraulic system. The main and cross which produce by our machine can be installed as open cell ceiling by manual. For ensure the production line more stable, we install the protect cover for this machine.

Technical Data:

1. Suitable Plate Material: thickness 0.3-0.4mm, Galvanized steel
2. Working Speed: 0-5 meters /min adjustable
3. Forming Steps: about 12 stations
4. Material of Roller: 45# Steel,
5. Material of Shaft: 45# Advanced Steel (Diameter: 50mm), thermal refining
6. Driven system:Chain driven
7. Main Power with reducer: 5.5KW WH Chinese Famous
8 Power supplier: 380V, 50 Hz, 3Phases, according to customer's requirements
9. The whole machine is controlled by PLC.

Machine List:

S.N	Equipment name	Quantity
1	3T hydraulic un-coiler	1 set
2	Servo feeder	1 set
3	Punching press machine JH21-63	1 set
4	Main machine	1 set
5	control box	1 set
6	Out tables	1 unit
7	Spare parts	1 package
8	Safety cover	1 set
9	Pre-cutting device	1 set
10	Punching moulds	1 set
11	Belts table	1 set

Profile Drawing:

Application

It is widely used on industrial and commercial buildings, building decorative material market, subway, other big places, interior partitions, suspended ceiling, airport, bus station, museum, opera house, exhibition hall, shopping centre, conference hall, bar and etc.
