Customized Steel Profile U Channel Roll Forming Machine for Ceiling Wall
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Specifications
Description
Parameter:
|
|
Items |
Specifications |
|
Material of coil |
Thickness |
0.7-1.2mm galvanized steel |
|
De-coiler |
Weight |
3 ton manual |
|
Forming system |
Rolling Speed |
0-10m/min |
|
|
Embossing |
At sides |
|
|
Roller Stations |
About 10 stations forming |
|
|
Roller Material |
Cr40 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 60mm shaft
|
|
|
Motor Power |
5.5 kw |
|
|
Hydraulic cutting Power |
4 kw |
|
Cutting system |
Material of cutting |
CR12 with quench treatment |
|
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
Electrical control system |
Electric Source |
380V, 60HZ,3 phase
|
|
|
Control System |
PLC |
|
|
Weight |
About 3 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 5000mm* Width 600mm* Height 800m |

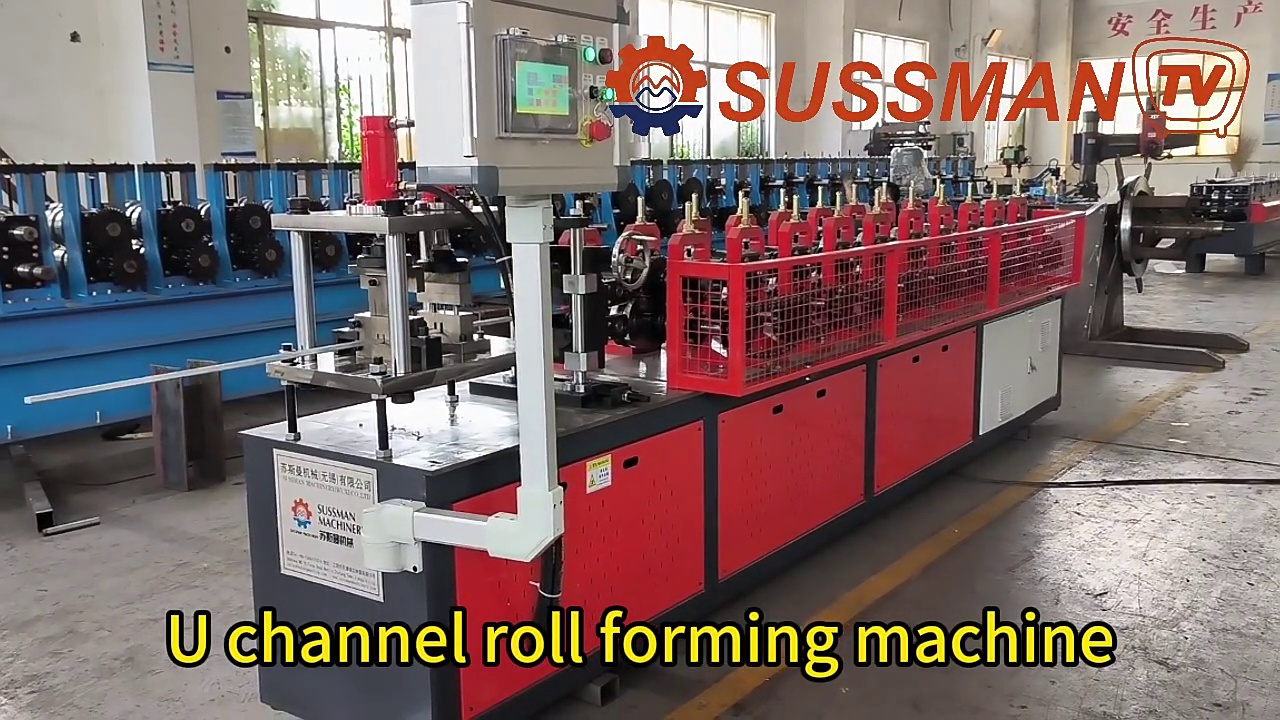

Machine picture

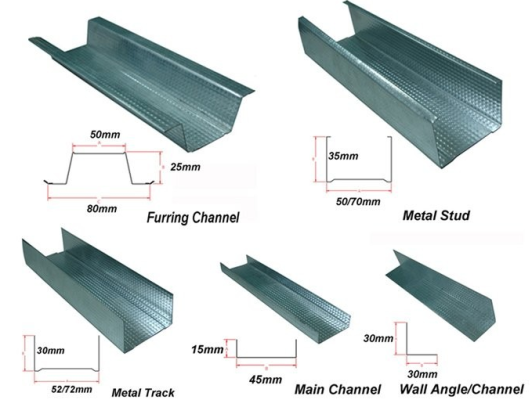

Products

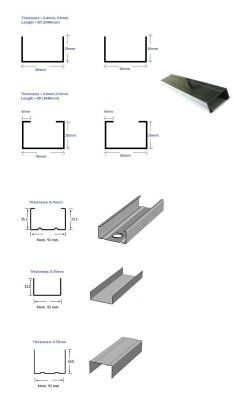

More profile drawing for option
