Rolling Shutter Door Side Guide Rail U Shape Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Specification

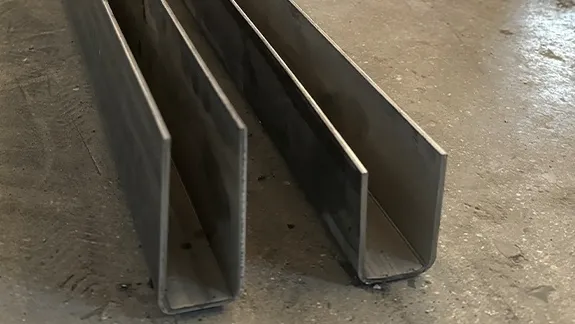

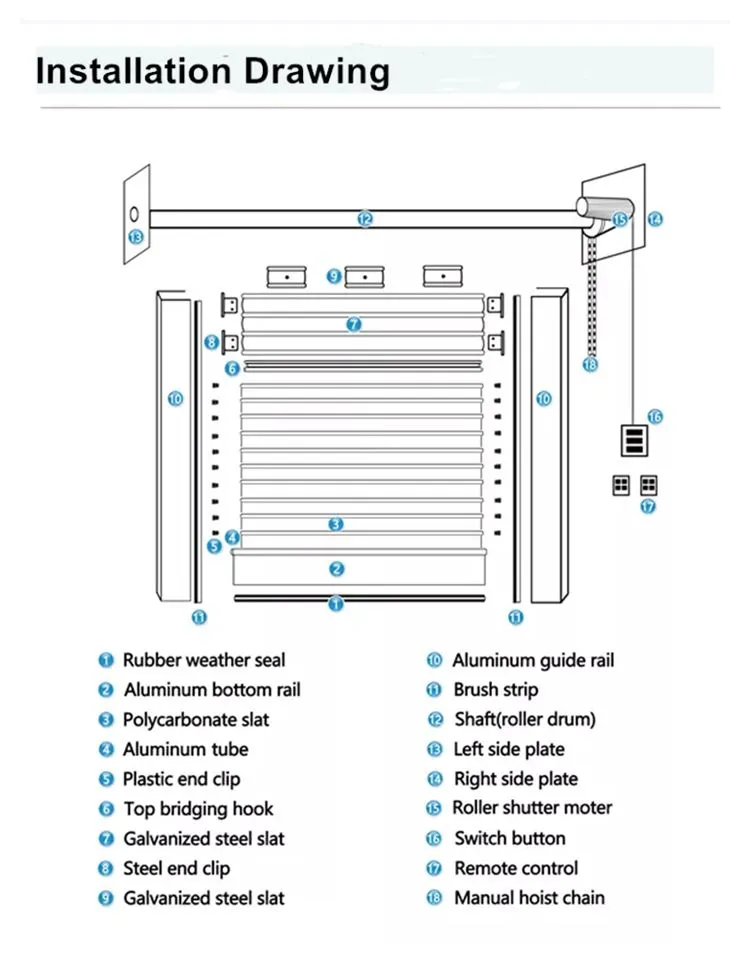

This U channel guide rail roll forming machine is a specialized machine used to produce guide rail for rolling shutter door, which are essential components in various applications such as sliding doors, window frames, garage doors, and more.The guide rail will install the two side of rolling shutter door and help the shutter door roll up and down ( open and close ) smooth.

Technical Data:

project
Specification
Coil material
Material thickness
1.5mm-2.5mm galvanized sheet
Molding system
Rolling speed
Line speed of about 0-12 m/min
Roller Station
About 12 stations
Roller material
Gcr15 steel with hardened 60mm shaft
Maim motor power
7.5 kilowatts
Hydraulic station power
4 kilowatts
Cutting
system
Cutting material
CR12 quenching treatment
hardness
HRC58-62
tolerance
+-1.5 mm
Electrical control system
power supply
220V, 60hz, 3 phase
can also meet customer requirements
control system
PLC control system
weight
About 5 tons
Drive mode
1 inch single chain
Machine size
Length 6000mm* Width 600mm* Height 1000m

Machine List:

3 ton passive de-coiler

1 set

Main roll forming machine

1 set

Hydraulic stop cutting

1 unit

PLC Control box

1 unit

Hydraulic station

1 unit

6 meters output table

1 unit

Spare parts

1 package

Safety cover

1 unit

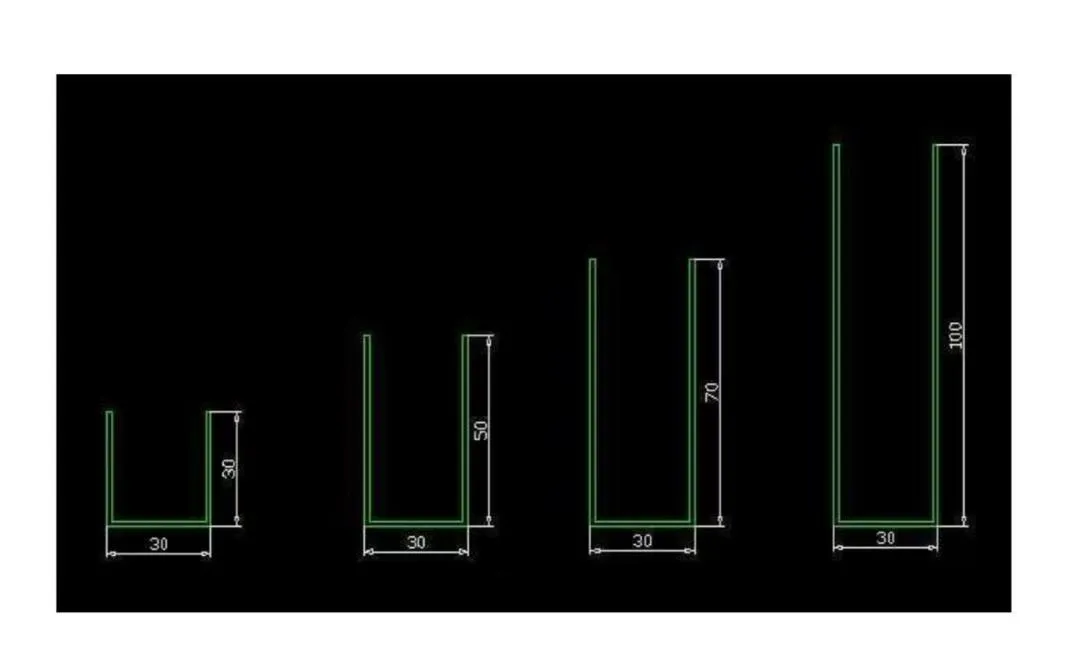

Profile Drawing:

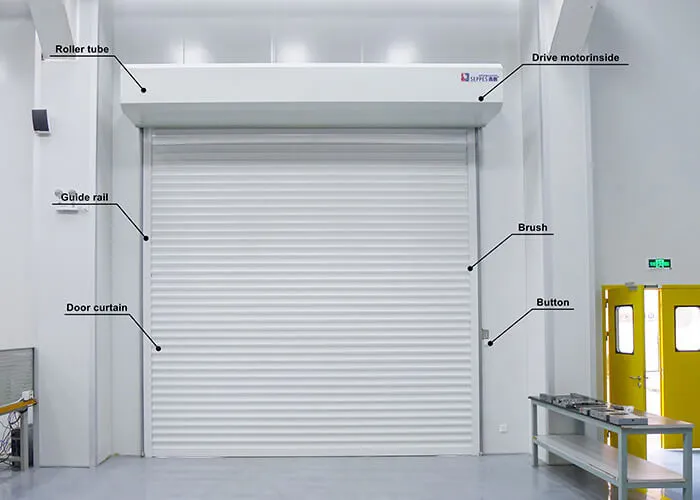

Application:
