Machine technique data
Suitable Plate Material: thickness 0.8-1.5mm, Galvanized steel or blank steel
Working Speed: 12 meters / min
Forming Steps: 22 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Chain drive
Main Power with reducer: 11KW WH Chinese Famous

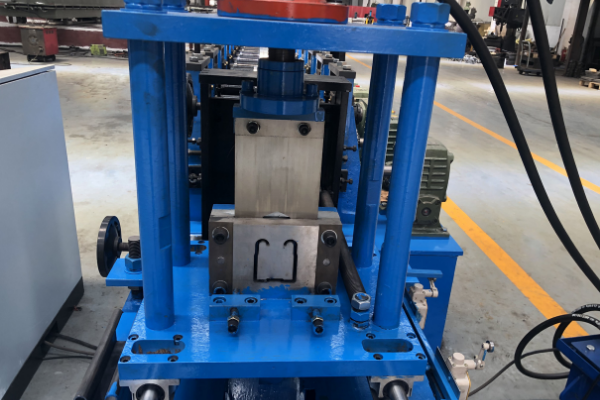

Cutting: Hydraulic Cutting Cr12mov
Material of Cutting Knife: Cr12Mov, Quench HRC58-62
Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
The whole machine is controlled by industry computer-PLC.
PLC--Panasonic, Japan English and Chinese Language
Touch Screen--Panasonic Japan
Encoder--Omron, Japan
Electric parts--Schneider
Machine component
Machine name | Quantity |
3T hydraulic un-coiler | 1 set |
Main roll forming machine | 1 set |
Cutting holder | 1 set |
Hydraulic station | 1 set |
Control system ( including control box) | 1 set |
Hydraulic Cutting die | 1 set |
Out tables | 1 set |
Spare parts | 1 package |
Machine profile drawing
What's Sussman's machine different from other suppliers?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
Sussma hereby solemnly promises: We implement teh “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of teh equipments, training of teh Buyer’s relevant Operators; and provide technical requirements for teh installation and operation of teh equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
Teh detailed measures are as follows:
1.Guidelines for installation and commissioning of equipments:
Based on teh actual situation, to assist and guide teh Buyer and Buyer’s technical personnel in teh overall installation location, teh installation of equipments, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on teh Buyer’s request, Sussman will provide free of charge training of teh operation and maintenance personnel;
a) Teh User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing teh installation and test running of teh equipments for teh Buyer, teh Buyer can send their personnel to participate.
3.If failure occurs in any of teh machines during teh “three guarantees” period(one year), three guarantees including teh electricity parts, teh rolls, teh shafts and punching& cutting moulds, tan, upon teh Buyer’s request, Sussman will eliminate teh failure;
4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for teh Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving you're complaints by phone or email
