Racking Step Beam Roll forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Description

Warehouse shelf upright system roll forming machine is widely used to produce upright frame, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine. Our roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel, and Aluminum. Our produced profile meet ISO, CE, FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia, Dominica, etc. We make different solutions according to customersdrawing, tolerance and budget, offering professional one-to-one service.

Main Roll forming machine technique data


1. Suitable Plate Material: thickness 1.2-2mm, Galvanize steel or black steel

2. Working Line Speed: 4-5meters / min

3. Forming machine: about 20 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: gear box driven

7. Main Power with reducer: 15KW WH Chinese Famous

8. Cutting: Fly saw cutting

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. The whole machine is controlled by industry computer-PLC.

11 PLC--Panasonic, Japan English and Chinese Language

12. Touch Screen--Panasonic Japan

13. Encoder--Omron, Japan

14. Electric parts--Schneider


Machine list


S.N Equipment name
1 3T hydraulic un-coiler
2 Leveling device
3 Main roll forming machine 24 stations
4 Fly saw cutting
5 PLC Control system ( including control box)
6 Out tables
7 Welding device
8 Cooling system
Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler
  • Structure
    Wall panel
    Torri Structure
    Cast Iron
  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox
  • Cooling
    Water cooling
    Fan cooling
  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press
  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting
  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker
  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting
Why Sussman Different
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery
Other suppliers
Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery
Other suppliers
Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers
Roof tile box
Sussman Machinery
Other suppliers
Hydraulic cutting
Sussman Machinery
Other suppliers
Machine details
3 ton hydraulic De-coiler& coil car

Diameter: 460-520mm expansion.
Expansion: hydraulic
Capacity: 3000kg per mandrel
Max Coil Width: 500mm
Drag tension brake with variable brake tension adjustment valve


Leveling device

7 rolls leveling, 3 rolls up and 4 rolls down, roller leveler rolls are more smaller, get flatting better
Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface

Out tables

Length: 2 meters
Number: 2 units

Cutting: Fly saw cutting

Cutting after forming: Cut the sheet after roll forming to required length, fly saw cutting
Cutting motion: The main machine automatically cut, and the cutter will move on the guide rails forward and back non-stopping.
Length measuring: Automatic length measuring
Tolerance of length: 6m+/- 0.5mm
Our service
Our Service


1.Price: FOB Shanghai price

2.Payment term: 30% T/T in advance, 70% T/T before shipment.
3.Delivery time: within 60 Days after receipt the down payment
4.Warranty: 1 year
5.Installation and debugging: We will send professional engineer to make installation and debugging,
buyer pay our engineer each one 100 usd/ day, and provide accommodation and the round-trip ticket fee.

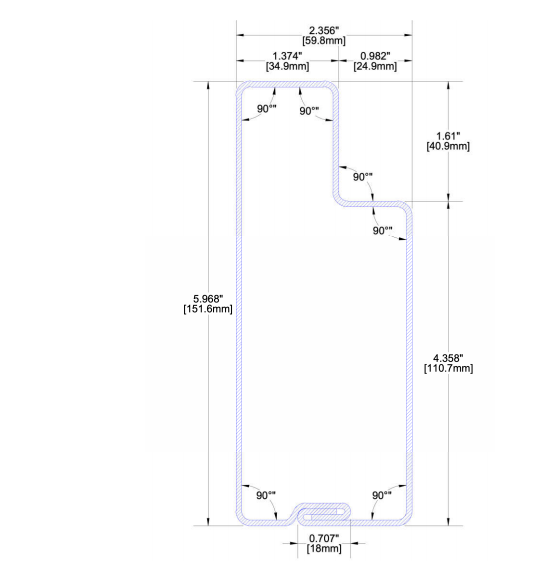

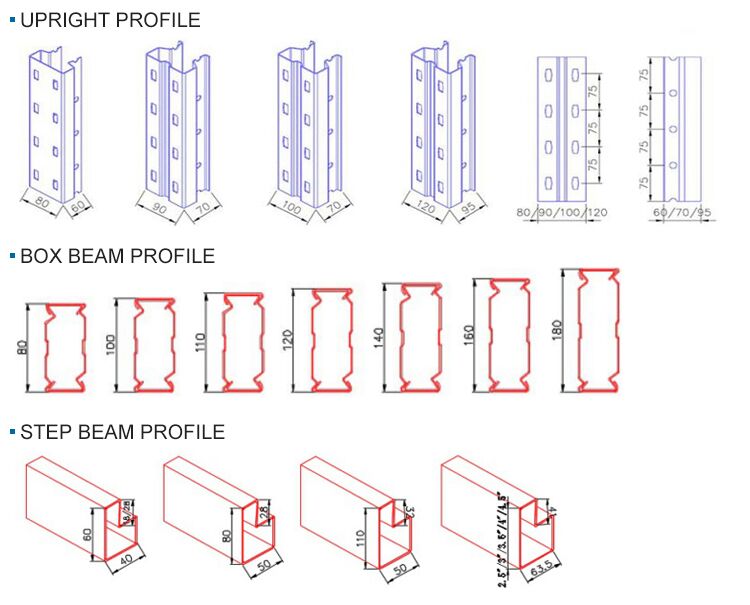

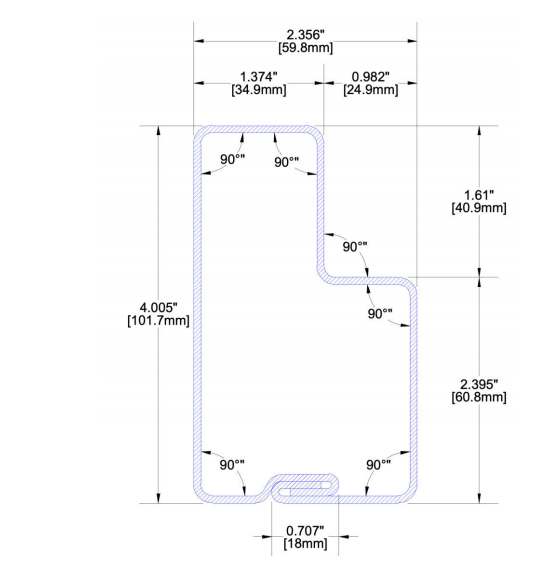

Profile drawings for options

CONTACT US
