Locking Box Beam Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification
Description

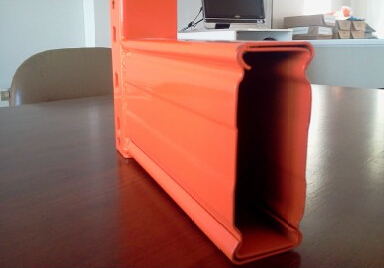

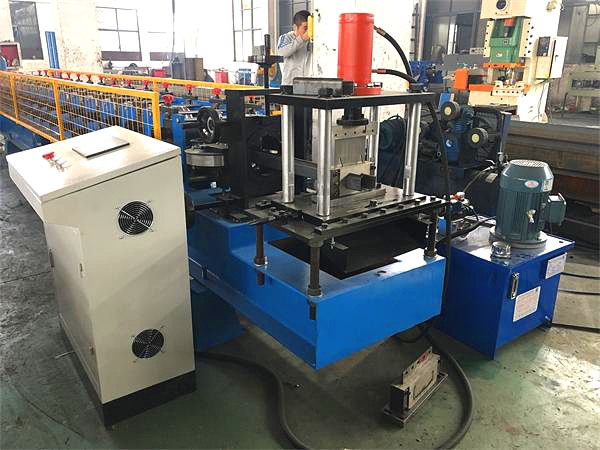

Warehouse shelf upright system roll forming machine is widely used to produce upright frame, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine. Our roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel, and Aluminum. Our produced profile meet ISO, CE, FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia, Dominica, etc. We make different solutions according to customersdrawing, tolerance and budget, offering professional one-to-one service.

1. Forming speed: 0~15M/Min
2. Product speed: 8~10M/min
3. Roller material: GCR12 bearing steel
4. Forming stations: 15 stations + 4 fold ed machine
5. Shaft diameter: 75mm
6. Forming structure: Guiding column,chrome-plated
7. Machine base frame: tube welding structure ,milling gauntry,punch holes automatic
8. Transmission type: worm gear box
9. Motor power of main machine: 7.5KW*2sets
10. Weight: about 8 tons
Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker


  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting


Why Sussman Different
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery



Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers

Roof tile box
Sussman Machinery
Other suppliers

Hydraulic cutting
Sussman Machinery
Other suppliers


Application

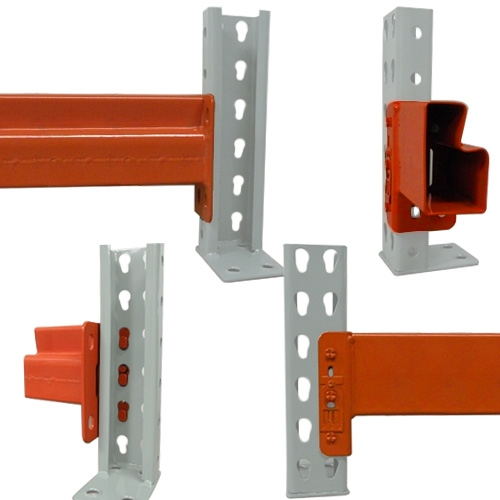

For supper market, for warehouse, for the small market, for the racks, the cooling rooms.
With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, light duty shelving, warehouse shelving and racking for the home and office are developed rapidly

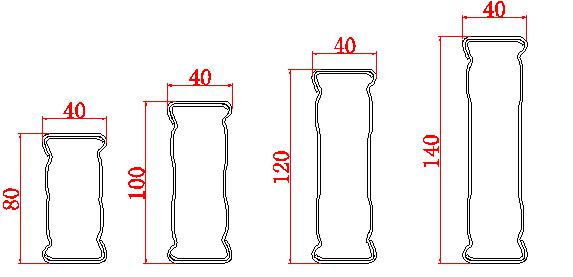

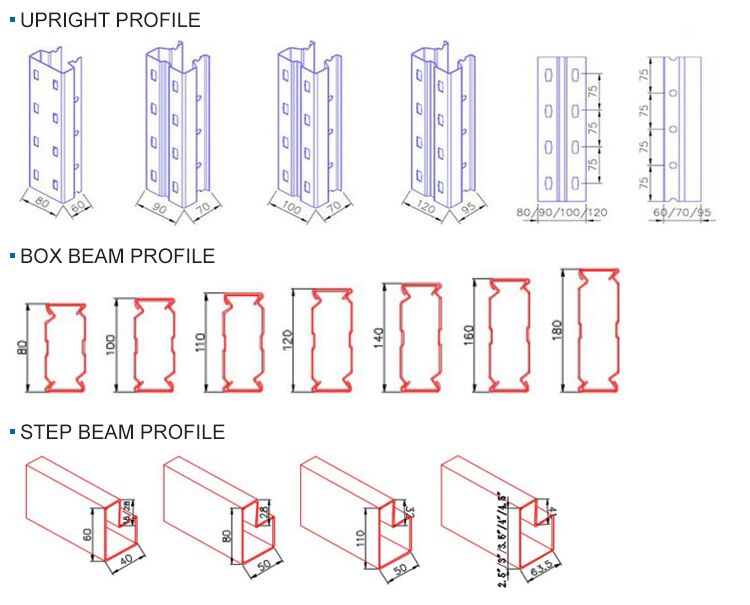

Profile drawings for options
