Warehouse shelf upright system roll forming machine is widely used to produce upright post, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine.

The machine can do thickness is from 0.7-1.2mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel.

Our produced profile meet ISO, CE, UL standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

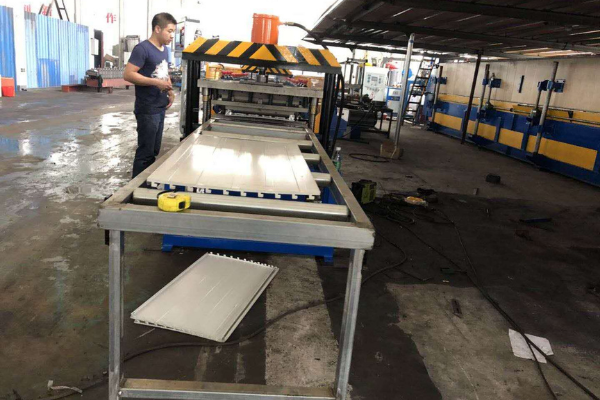

The shelf box machine is together with the top hat machine to make the shelf box for the supermarket shelf. Sussman Shelf box machine is included the de-coiler, the hydraulic punching device, the main roll forming machine, and the hydraulic cutting device. The shelf box machine can make width from 100-600mm, also can do 200-900mm. It is the good choice for the supermarket shelf business.

We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia, Dominica, etc.

1. Materials to form: According to the customers’ requirement Used for 200mm-600mm (one-sided slide-able, adjustable by electric)

2. Forming steps: About 18 steps
3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150
4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
6. Cutting: Hydraulic cutting; quenching HRC58-62
7. Electronic control: PLC control
8. Dimension of machine: 12000mmX2000mmX900mm
10. Drive system: Chain drive, 7.5KW main motor power, working speed: 3-15m/min;
11. Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be gantry planer processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness ＜2mm/1000mm
12. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin
13. Punching: Punching the holes at the press machine before forming the shapes

14. Bending: Bending after the hydraulic cutting

Profile drawing

For supper market, for warehouse, for the small market, for the racks, the cooling rooms.
With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, light duty shelving, warehouse shelving and racking for the home and office are developed rapidly
