PV4 PV6 R101 Tr4 Double Layer Roof Panel Roll Forming Machine
Main Features:
The machine can be used to produce 2 different profiles , e.g. wall &roof sheets, or 1 wall & roof sheet and tile & roof sheet. Customer can choose the roof type.

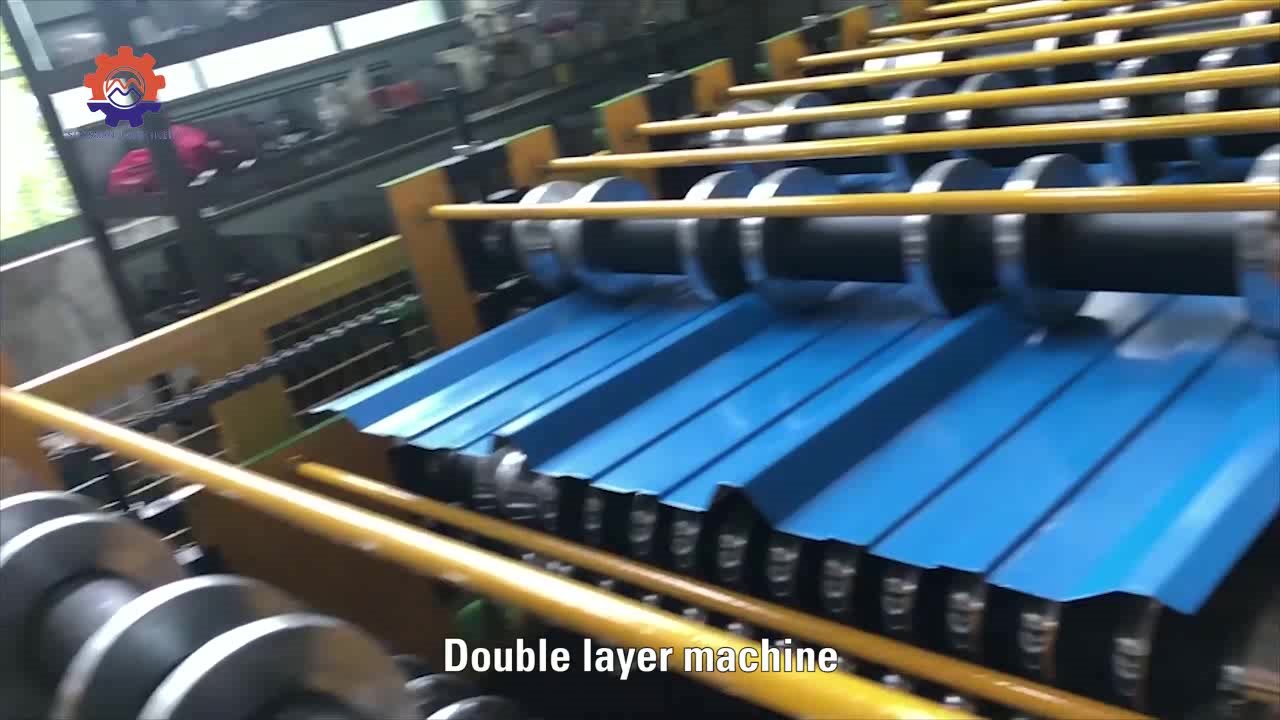

Double layer machine can save more space and save money compared with two different seperate machines.
Double layer machine can produce one profile one time . There is one clutch as on the side of the machine, just move it to make other roof profile, it takes about a few seconds.
1. Variable frequency speed control
2. Multi-purpose for overlap connection
3. Auto power off
|
Number |
Items |
Unit\Type |
RF-DL |
|
1 |
Steel Thickness |
mm |
0.4-0.8mm, coil width 1220 |
|
2 |
Forming Speed |
m/min |
0-12m/min |
|
3 |
Roller stands |
stand |
26 stands bottom layer; 18 stands top layer |
|
4 |
Roller Material |
mm |
45# steel, coated with chrome quenching |
|
|
Shaft material and diameter |
mm |
Ф76 45# steel, coated with chrome |
|
5 |
Main Motor Power |
Kw |
7.5 |
|
6 |
Hydraulic cutting Power |
Kw |
4 |
|
7 |
Hydraulic pressure |
Mpa |
12 |
|
8 |
Power Supply |
|
380V, 50HZ,3 phase |
|
9 |
Tolerance |
mm |
1.5 |
|
10 |
Material of cutting |
|
Cr12mov HRC60-62 |
|
11 |
Control system |
|
PLC with touch screen |
|
12 |
Machine net weight |
T |
10 |
Profile Drawings:
PV4
Technological Process
Uncoiling—Feedingwithguide—Roll forming—Cutting—Products collecting
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
