Main Features:

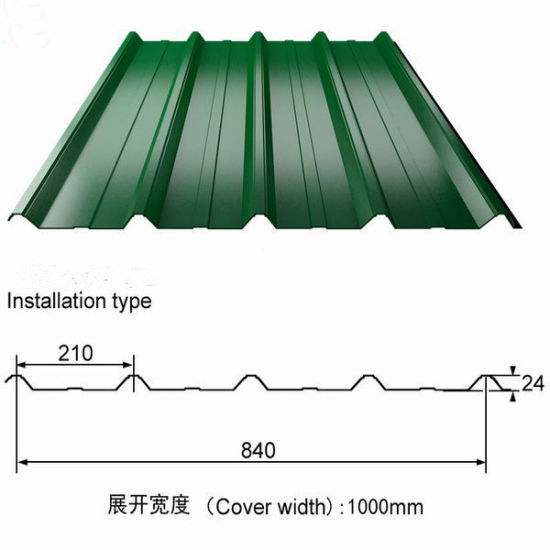

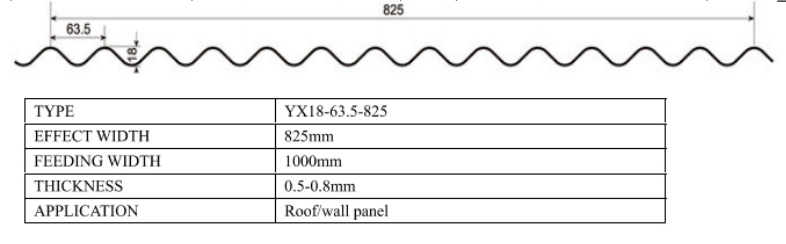

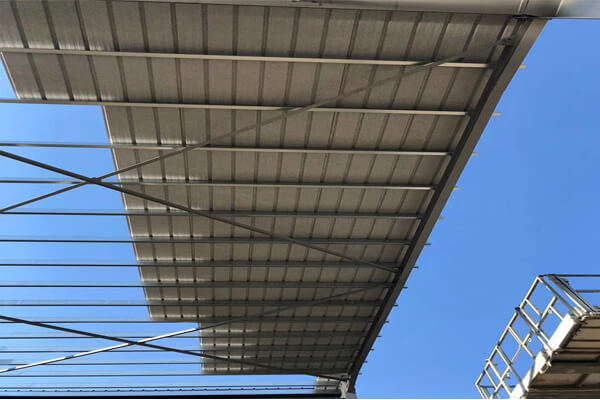

The machine can be used to produce 2 different profiles , e.g.  wall &roof sheets, or 1 wall & roof sheet and tile & roof sheet. Customer can choose the roof type.

Double layer machine can save more space and save money  compared with two different seperate machines.

Double layer machine can produce one profile one time . There is one clutch as on the side of the machine,  just move it to make other roof profile, it takes about a few seconds.

1. Variable frequency speed control
2. Multi-purpose for overlap connection
3. Auto power off

Roll forming machine technical data：

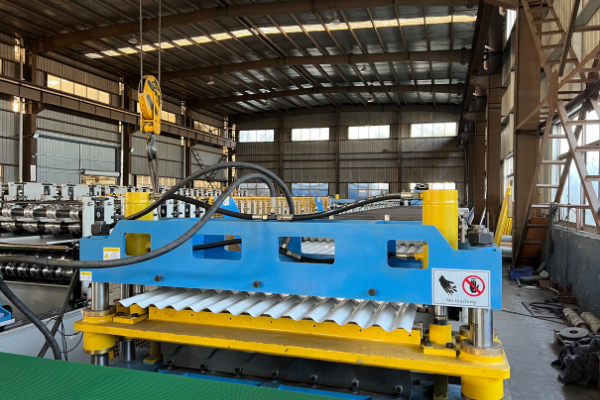

Roll Forming Machine: RF-RP

Rolling Speed : 10-12m/min(cutting time is not include)

Steel sheet Thickness: 0.4-0.8mm color painted sheetsand galvanized steel

Control System: PLC

Roller Stations: upper/ down layer is about 14 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Main Motor Power: 5.5kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier:380V, 50HZ,3 phase

Way Of Drive:1.2 inch single chain

Color Of The Machine :blue

The size of the forming machine:About 6000*1500*1000mm

Machine List:

Our display screen is touch screen, not text touch screen.

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
