Louver Ceiling Blade Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

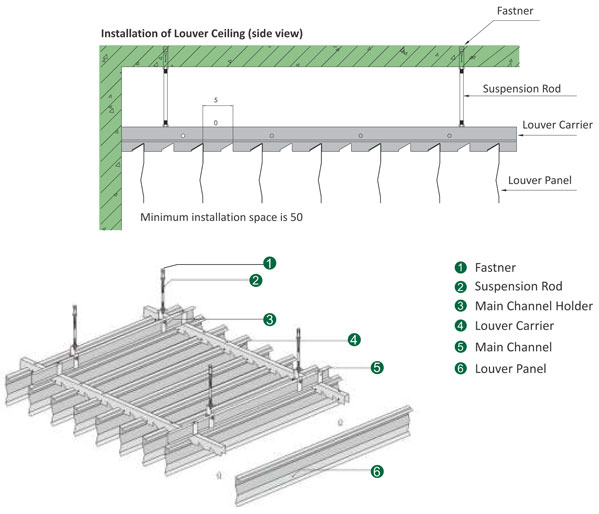

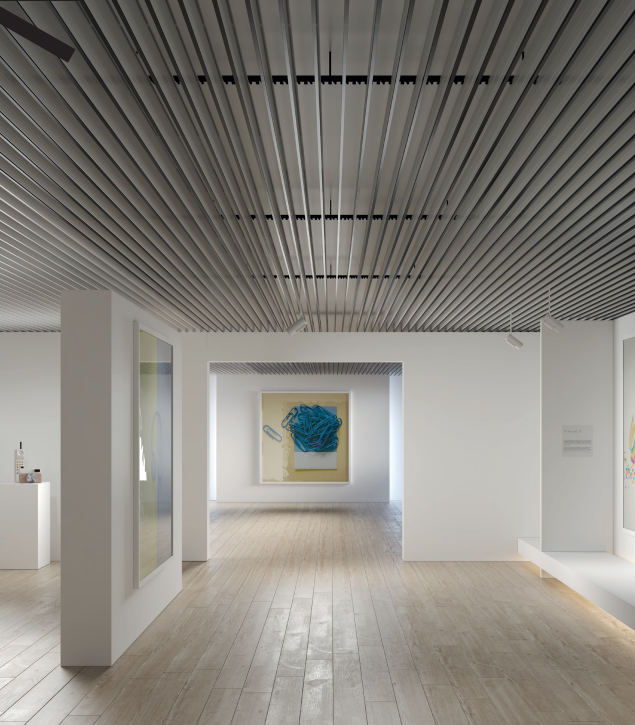

This type of ceiling, comprising vertical staves, allows interplay with light in diaphanous, open spaces. Using a system of black lacquered battens, a structure of vertical staves 100, 150 or 200 mm in height is devised. These are separated according to the size of the stave, thus allowing a plethora of different combinations.
The staves are manufactured in highly resistant and durable aluminium and since this forms an open drop ceiling, it is easy to maintain and the plenum space can be accessed easily.

Technical Data:

	Items	Specifications
Material of coil	Material Thickness	0.6-1.0mm
	Un Coiler	3 tons manual
Forming system	Rolling Speed	About 10 meters /minute
	Roller Stations	About 12 stations feeding
	Roller Material	Gcr15 coated with chrome
	Maim Motor Power	5.5 kw
	Motor cutting Power	4kw
Cutting system	Material Of Cutting	CR12mov with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	3 sets
Electrical control system	Electric Source	220 V, 60HZ,3 phase Also can satisfy Customer’s requirey
	Control System	PLC (Delta) as list in the note
	Weight	About 4 tons
	Way Of Drive	1.2 inch chain

Machine List:

3 tons passive decoiler	1 set
Leveling device	1 set
Roll forming machine	1 set
Hydraulic cutting device	1 set
6 meters passive output table	1 set
Control Box	1 set
Spare parts	1 package
