High Speed Fastern Concleased Wall Cladding Panel Roll Forming Machine
The advantages of using a Metal Wall Panel & Siding Roll Forming Machine include high efficiency, precision in producing consistent profiles, and the ability to manufacture panels in various lengths and profiles according to project requirements. These machines are commonly used in the construction industry to produce exterior cladding materials for buildings, including commercial, industrial, and residential structures.
Technical Data:
|
Item NO |
Description |
Offered specification |
|
1.1 |
Rolling speed |
0-20 m/min |
|
1.2 |
Rolling thickness |
0.5mm-0.8mm |
|
1.3 |
Raw material |
Galvanized steel coils or PPGI |
|
1.4 |
Main motor |
7.5kw |
|
1.5 |
Hydraulic motor |
5.5kw |
|
1.6 |
dimension |
7600×700×1000(mm) |
|
1.7 |
Roller stations |
About 28 stations |
|
1.8 |
Roller material |
45#forge steel, coated with chrome |
|
1.9 |
Shaft diameter |
Φ70mm,material is 45# forge steel |
|
1.10 |
Transmission |
By chain 1 inch |
|
1.11 |
Material of chain |
45# forged steel with frequency quenching, 12A |
|
1.12 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
|
1.13 |
Tolerance |
6m+-0.5mm |
|
1.14 |
Frame |
H type steel |
|
1.15 |
Voltage |
220v, 60hz, 3phases |
Machine List:
|
No |
Name |
Quantity |
|
1 |
5 ton passive de-coiler |
1 set |
|
2 |
Front manual cutting |
1 set |
|
3 |
Lamination device |
1 set |
|
4 |
Main roll forming machine |
1 set |
|
5 |
Control box |
1 unit |
|
6 |
Hydraulic station |
1 unit |
|
7 |
Out tables |
2 units |
|
8 |
Safety cover |
1 unit |
|
9 |
Spare Part |
1 Package |

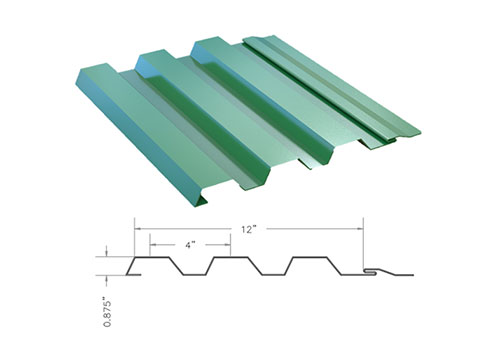

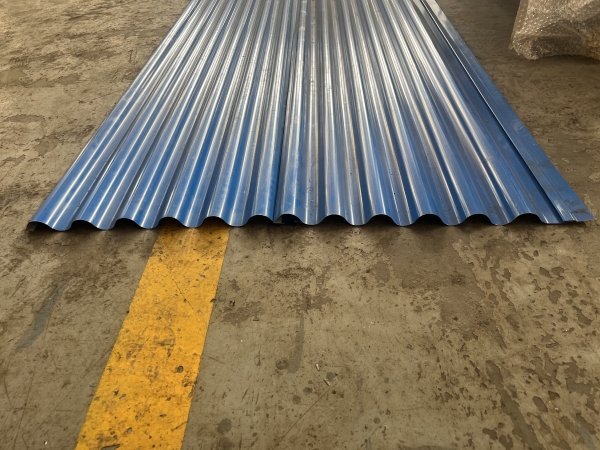

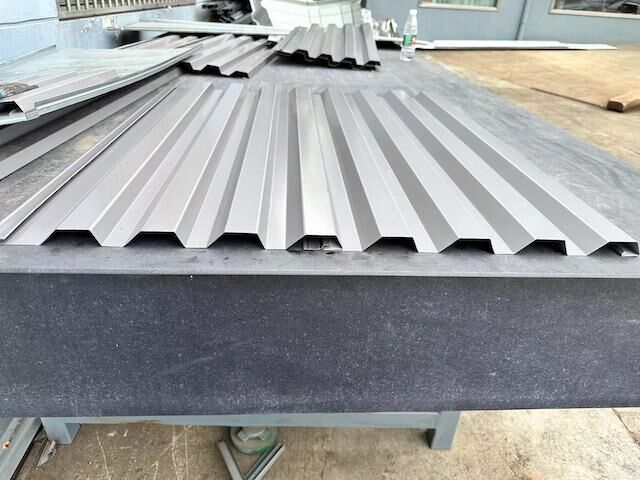

Profile Drawing:
.jpeg)
.jpg)
.jpg)

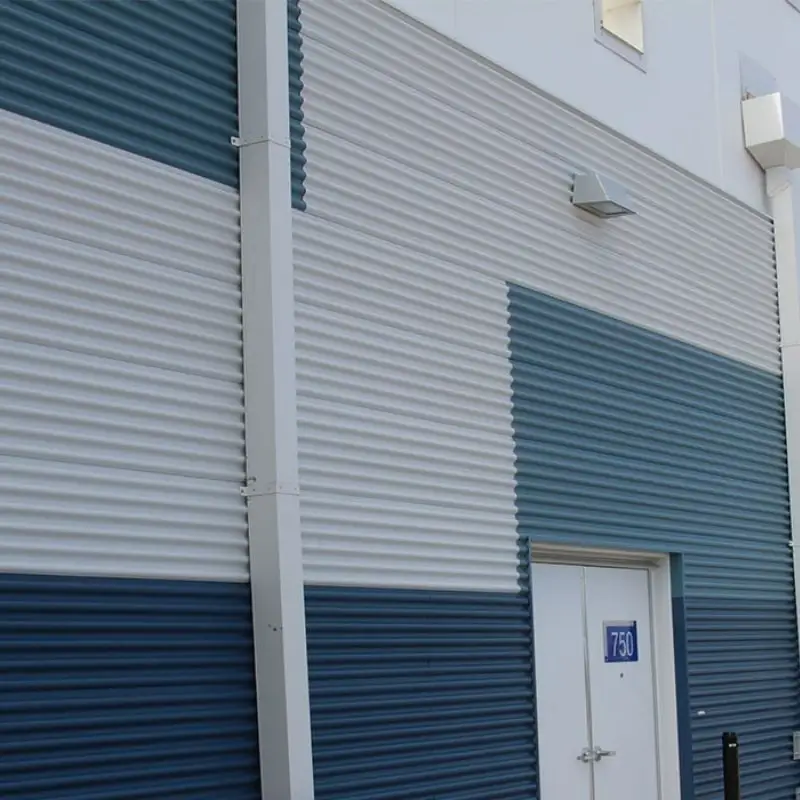

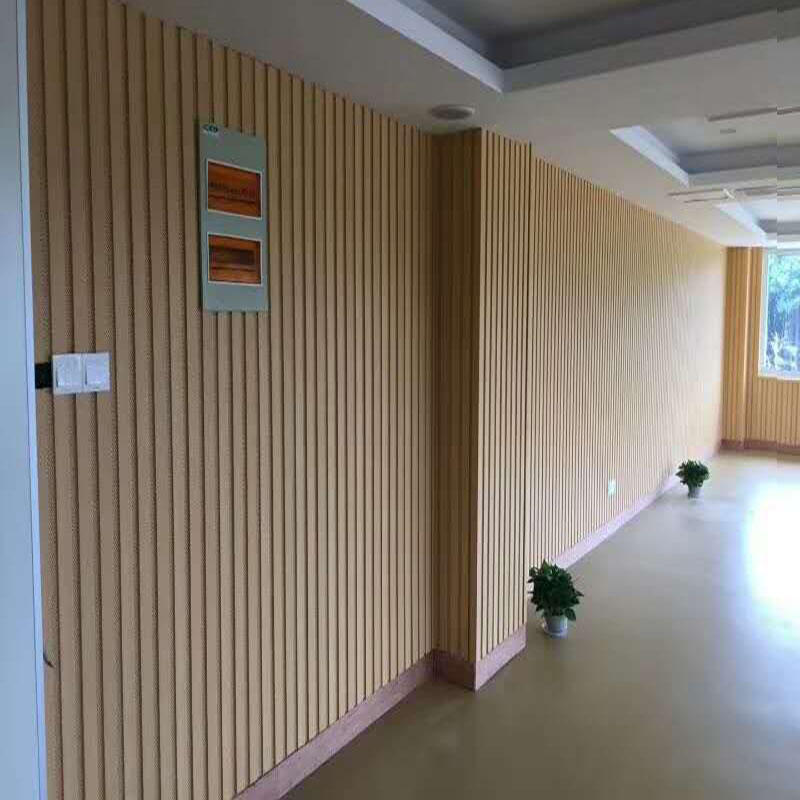

Application:
.jpg)
