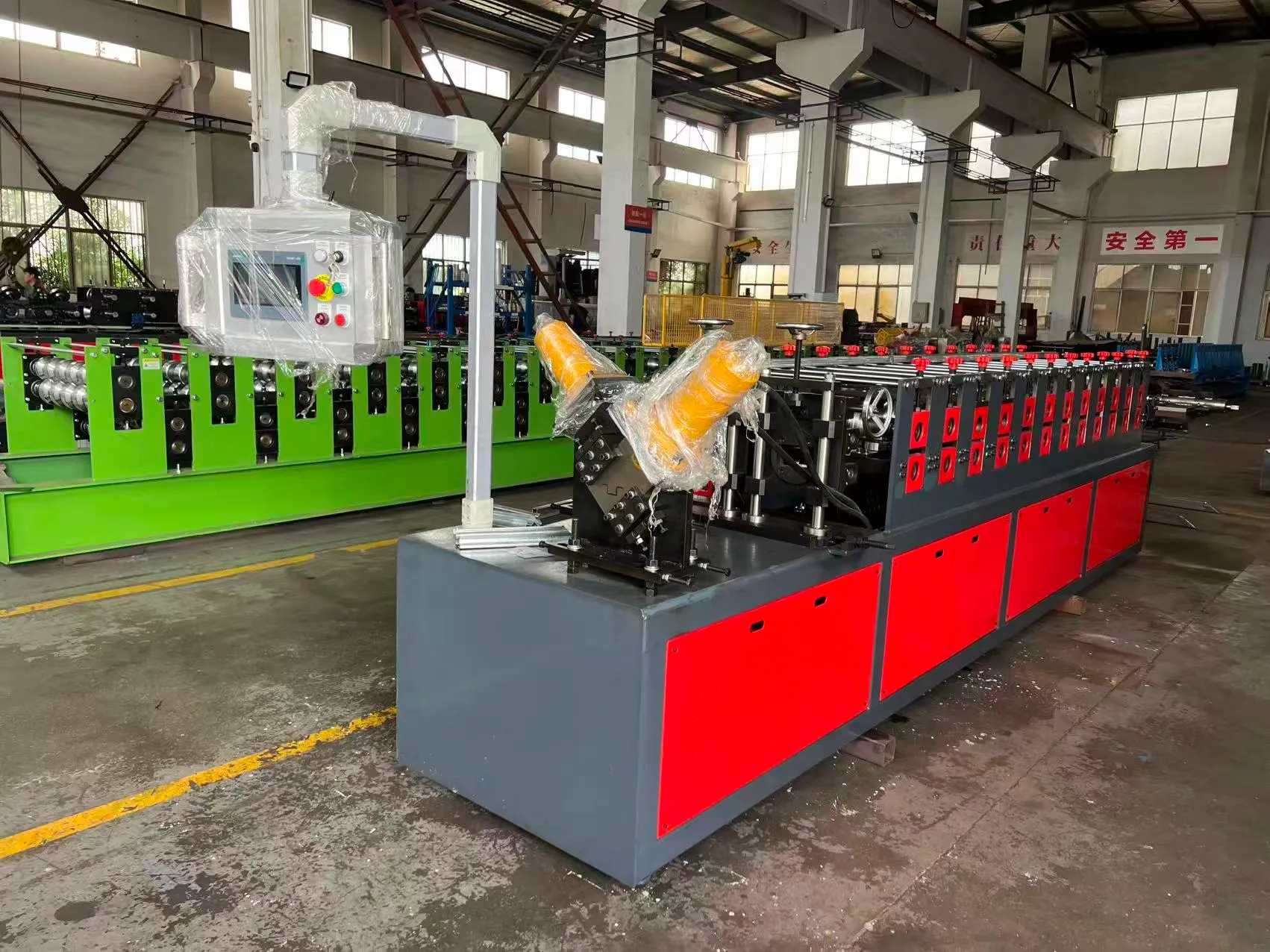

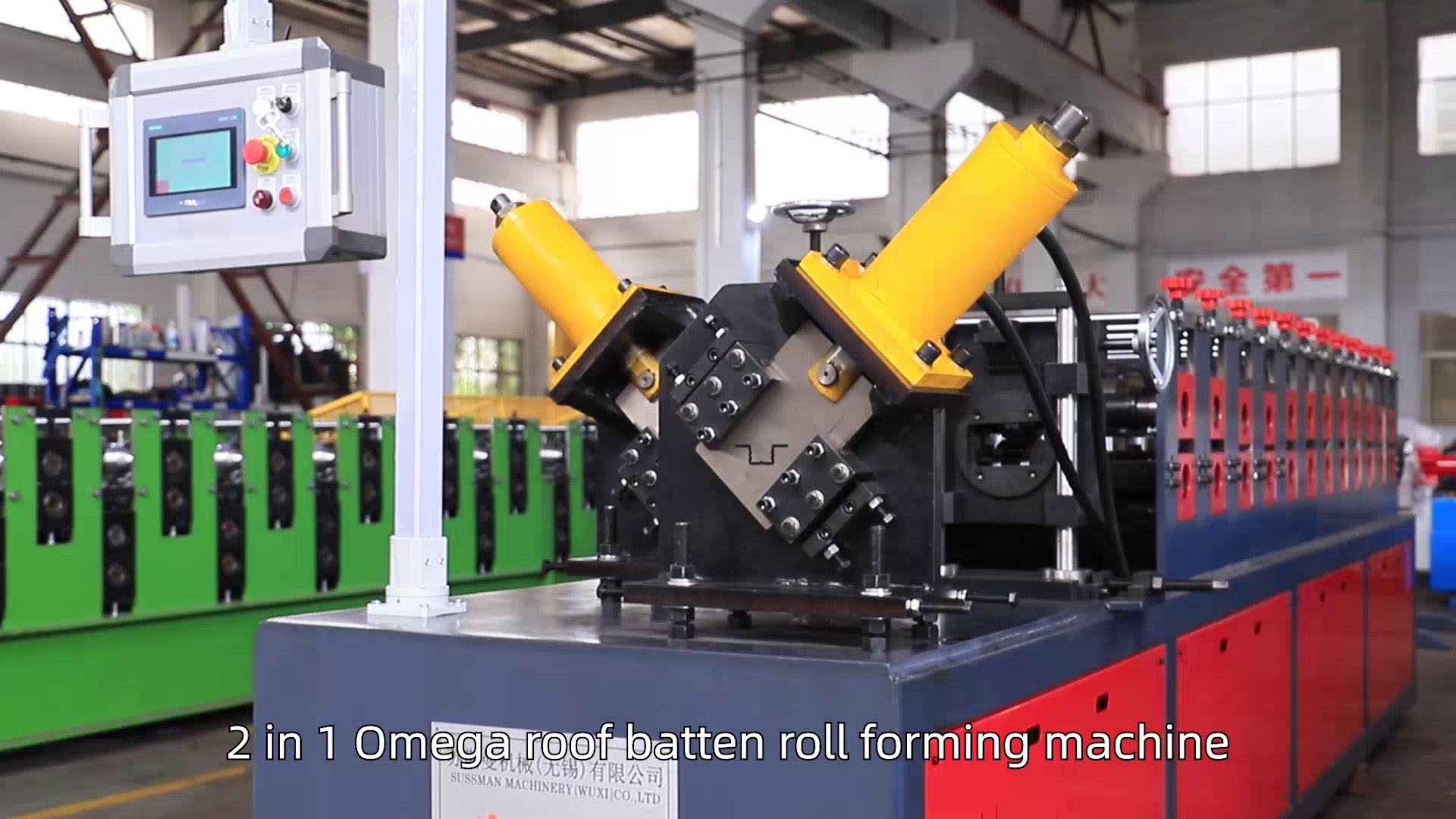

2 in 1 Omega roof batten roll forming machine

2 in 1 Omega roof batten roll forming machine can make 2 profile in one machine,it can shave the motor,the control box and the bending.This machine can save the place ,power and easy to operate.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Machine List

No Name Quantity
1 3 ton passive decoiler 2 sets
2
Main roll forming machine
1 set
3
Hydrulic station
1 set
4
Hydraulic cutting
1 set
5 PLC Control system  1 set
6
Out table
1 unit

Parameters Description
Item No Description Offered specification
1.0 Roll forming Machine
1.1 Rolling speed 0-12m/min
1.2 Rolling thickness 0.4mm-0.8mm
1.3 Raw material  Galvanized steel
1.4 Main Motor 5.5KW
1.5 Effective width As Drawing
1.6 Roller stations About 11 stations
1.7 Transmission By chain 1.2 inch
1.8 Material of cutting Cr12Mov with quench HRC58-62°
1.9 Tolerance +-1.5mm
1.10 Hydraulic station 4kw

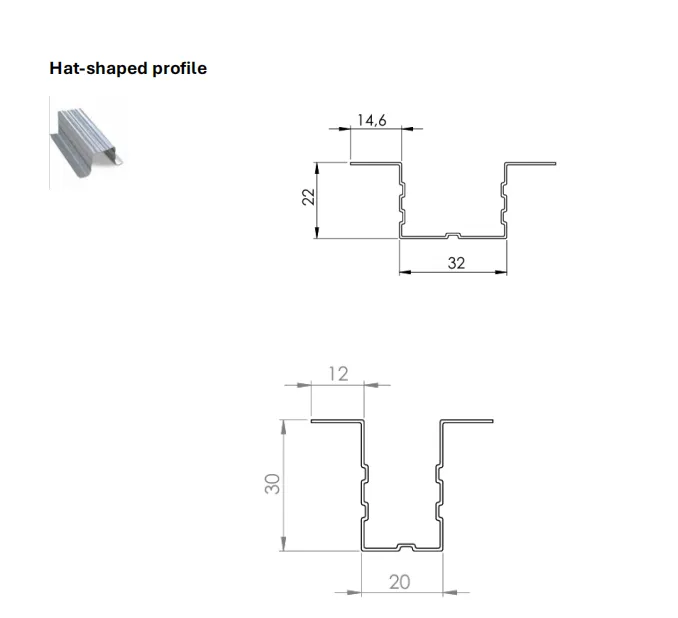

Profile Drawings

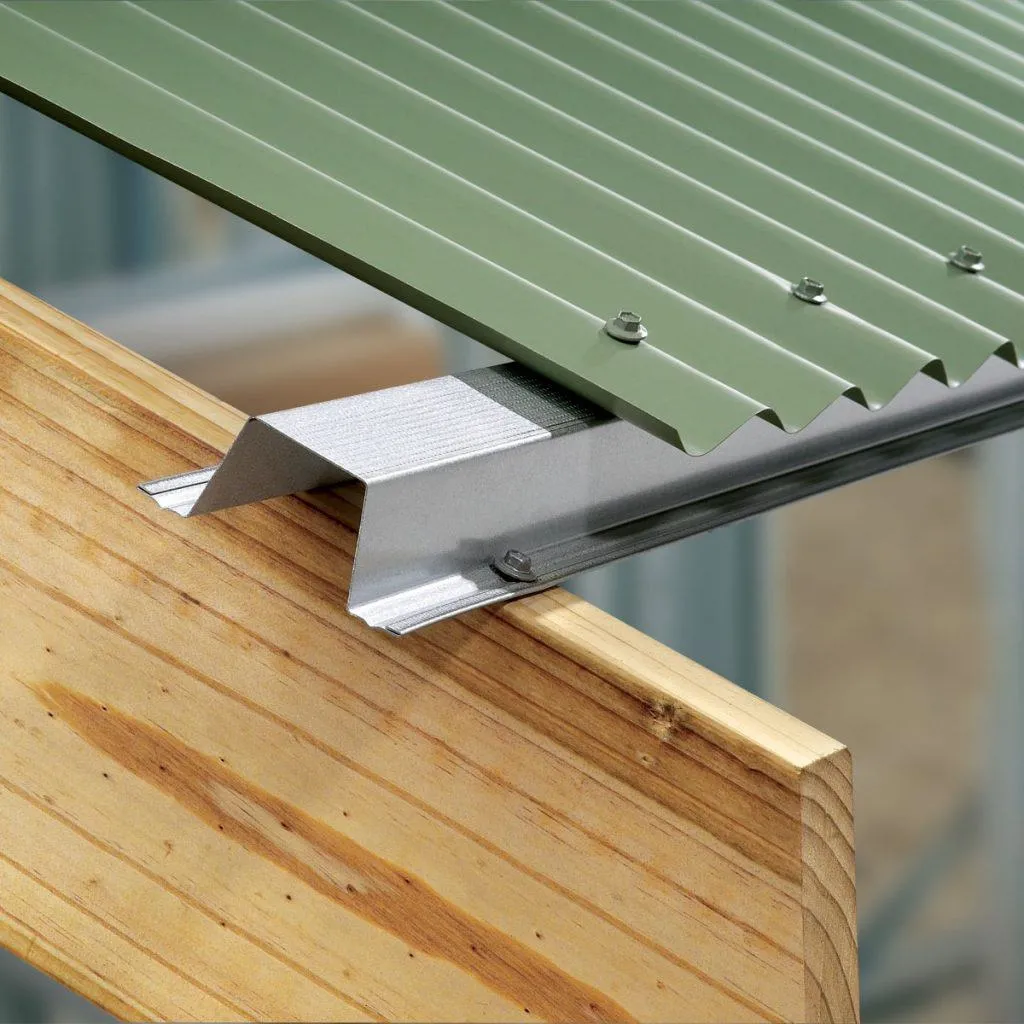

Application
