Main specification
1. Decoiler
Manual un-coiling Capacity: ≤3 T
2. Main datas of forming machine
Forming stands: about 36 stands
Roller material GCr15: model steel, HRC50-54
Axial diameter: Φ40mm
Main axial material: No 45 steel HRB260-280
Driving part is gear box transmission
Frequency conversion decelerating
PLC control: fix length control ±1mm
Main components: Schneider
Teh precision of roller: less TEMPTEMPthan ±0.5mm
Main roll forming machine motor: 380V, 50HZ, 11kw (or according to TEMPyou're requirements)
Machine basement material: H beam
3. Foaming machine: 1 set (China top brand)
4. Pneumatic flying punching machine 1 set
5. Automatic punching device 1 set
6. Finished products table: 1 set

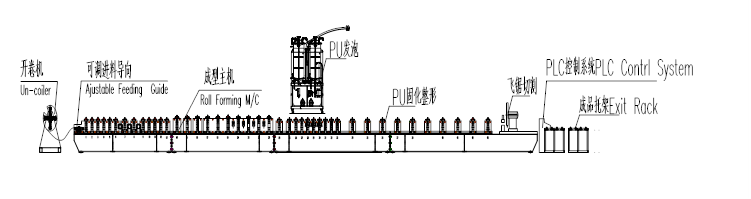

Working Flow:
Decoiler—feedingdevice—mainforming—PUinjection---straightendevice——FlysawCutting ---run out table
Machine List:
1 |
De-coiler |
1 set |
2 |
Guide Feeding device |
1 set |
3 |
main forming machine |
1 set |
4 |
Foaming machine (just foamed one owned) |
1 set |
5 |
Straighten device |
1 set |
6 |
flying saw cutting machine |
1 set |
7 |
finished products table |
1 set |
8 |
PLC control system |
1 set |
9 |
Spare Parts And Tools |
1 set |
What's Sussman's machine different from other suppliers?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
