1.Manual decoiler machine

1.Outline data:About 1300×800×1100mm(Length× Width× Height)

2.Coil inner Diameter: ￠400mm～508mm

3.Support the weigh: around 1000kg

4.Expansion: with 4 palms, with brake

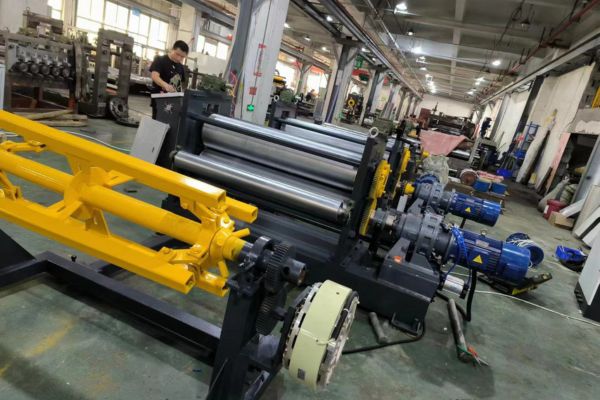

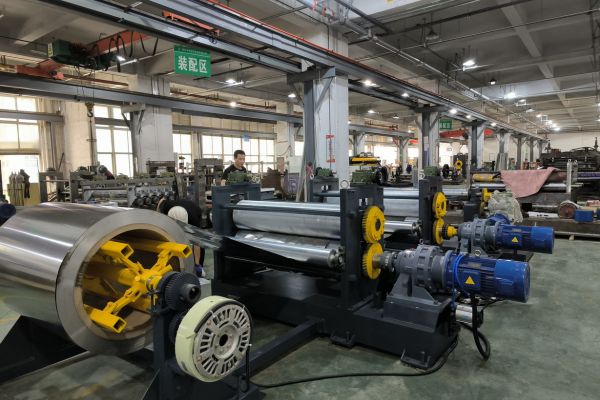

2.Embossing Machine --2 sets

1.Outline data: About 2200×800×1300mm(Length× Width× Height)

2.Roller size: diameter 310×1200mm

3.Material of roller: 42CrMo

4.Embossing roller structure: solid forging

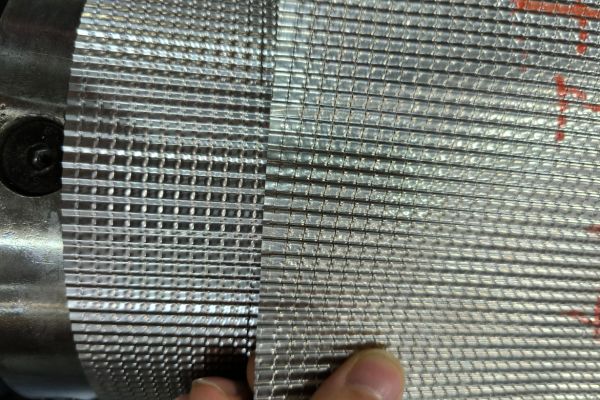

5.Embossing pattern and depth: Customized by sample

6.Thickness of plate: 0.05-0.25×1118mm stainless steel, coil inner diameter: 203mm

7.Way of embossing: One embossed horizontally pattern, one embossed vertically pattern

8.Embossing regulation:by Turbo-worm reducer

9.Speed: about 0-10m/min

10.Motor power:220V 60Hz 3Phase 4Kw motor Chinese brand

3.Recoiling Machine

1.Outline data:About 1600×700×1000mm(Length× Width× Height)

2.Coiled material mode:Φ200×1200mm air swelling shaft

3.Support the weigh: around 1000kg

4.Motor power: 220V 60Hz 3Phase
