A metal scaffolding plank is a type of scaffold platform made from metal, typically aluminum or steel, designed to provide a sturdy and durable work surface at elevated heights. Metal planks are commonly used in construction, maintenance, and other industrial applications where a reliable and long-lasting platform is needed.

Technical Data:

5.1. Suitable Plate Material: thickness 1.2mm, Galvanized steel or blank steel 250mpa-620mpa

5.2. Working Speed: 5-6 meters / minute

5.3. Forming machine: about 22-24 stations

5.4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5.5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

5. 6. Drivensystem: chain drive

5.7. Main Power with reducer: 7.5KW*2 WH Chinese Famous

5.8. Cutting: Hydraulic Cutting Cr12mov

5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

5.10. Hydraulic Station Power: 5.5KW Wuxi Wanshen Famous Chinese Brand

5.11. The whole machine is controlled by PLC.

5.12. PLC-- English and Chinese Language

• . Touch Screen—Beijing Kunlun Japan
• . Encoder--Omron, Japan
• . Electric parts--Schneider
• . Machine operation: Manual and full automatic mode at same time with limit switches, and panel support device

Machine List:

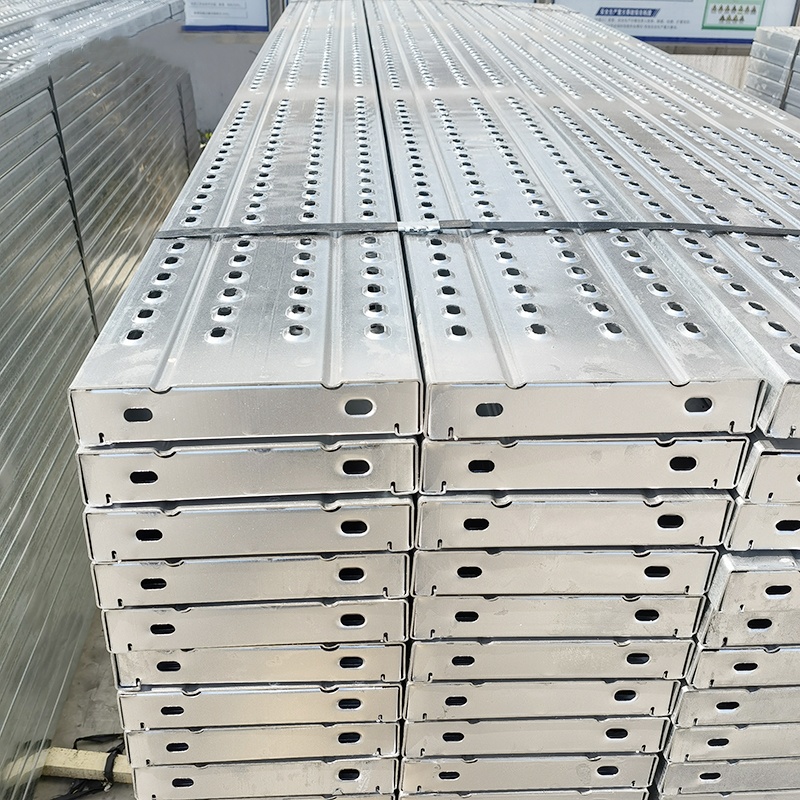

Sample Pictures:

Application:

• Construction Sites: Used to create temporary work platforms for various tasks including building, repairs, and renovations.
• Industrial Maintenance: Ideal for maintenance work on machinery, structures, and other equipment at height.
• Painting and Cleaning: Provides safe access for tasks such as painting or cleaning high surfaces.
