55mm 77mm 98mm PU Foam Shutters Door Roll Forming Machine

Email: sales@suhangmachine.com

Tel: 8613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Specification

Main specification

1. Decoiler

Manual un-coiling Capacity: ≤3 T

2. Main datas of forming machine

Forming stands: about 36 stands

Roller material GCr15: model steel, HRC50-54

Axial diameter: Φ40mm

Main axial material: No 45 steel HRB260-280

Driving part is gear box transmission

Frequency conversion decelerating

PLC control: fix length control ±1mm

Main components: Schneider

The precision of roller: less TEMPthan ±0.5mm

Main roll forming machine motor: 380V, 50HZ, 11kw (or according to TEMPyou're requirements)

Machine basement material: H beam

3. Foaming machine: 1 set (China top brand)

4. Pneumatic flying punching machine 1 set

Material of cut: Cr12Mov Quench: HRC58-62

5. Automatic punching device 1 set

6. Finished products table: 1 set

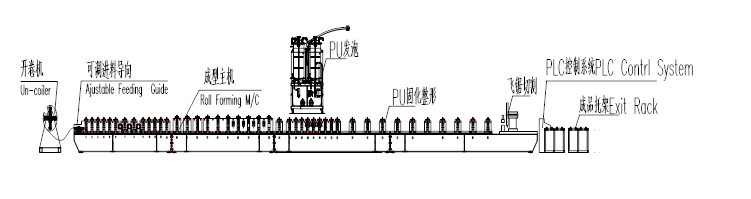

Working Flow:

Decoiler—feedingdevice—mainforming—PUinjection---straightendevice——FlysawCutting ---run out table

Machine List:

1	De-coiler	1 set
2	Guide Feeding device	1 set
3	main forming machine	1 set
4	Foaming machine (just foamed one owned)	1 set
5	Straighten device	1 set
6	flying saw cutting machine	1 set
7	finished products table	1 set
8	PLC control system	1 set
9	Spare Parts And Tools	1 set

Optional Configuration For Your Choice

Decolier

Double Heads Decoiler

A type decoiler

Manual Decoiler

Hydraulic Decoiler

Structure

Wall panel

Torri Structure

Cast Iron

Drive

Chain

Gear

Gearbox

Couplings Gearbox

Cooling

Water cooling

Fan cooling

Punching

Hydraulic punching

Hydraulic press

Punching press

Cutting

Hydraulic stop cutting

Servo Following Cutting

Stop Saw cutting

Fly saw cutting

Out table

Manual table

Simple pneumatic table

Automatic stacker

Magnetic stacker

Other

Cassette

Plastic film

Fleece devce

Pre-cutting

What's Sussman's machine different from other suppliers?

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

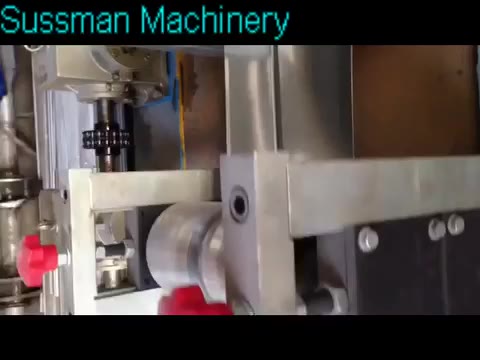

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.

Sussman Machinery

Other suppliers

Roof tile box

Sussman Machinery

Other suppliers

Hydraulic cutting

Sussman Machinery

Other suppliers

Application

Roller shutter door is a type of door or window consisting of many horizontal strip (or sometimes bars or web systems) hinged together. Teh door is raised to open it and lowered to close it. On large doors, teh action may be motorized. It provides protection against wind and rain. In shutter form, it is used in front of a window and protects teh window from vandalism and burglary attempts.
Roller shutter Door has many applications, including doors for vans, garages, kitchens, schools, prisons and warehouses. In some parts of teh world, roller shutters door are subsidized by local governments due to teh inherent security benefits. In areas dat are frequently exposed to inclement weather, roller shutters are used as a method of insulation and can protect windows against hail damage.
