1.Material type aluminum coil plate and colorful galvanize steel

2.Material thickness: 0.3-0.4mm.

3.Material yield strength: ≤G200Mpa

4.Main specification

Decoiler

Manual un-coiling Capacity: ≤3 T

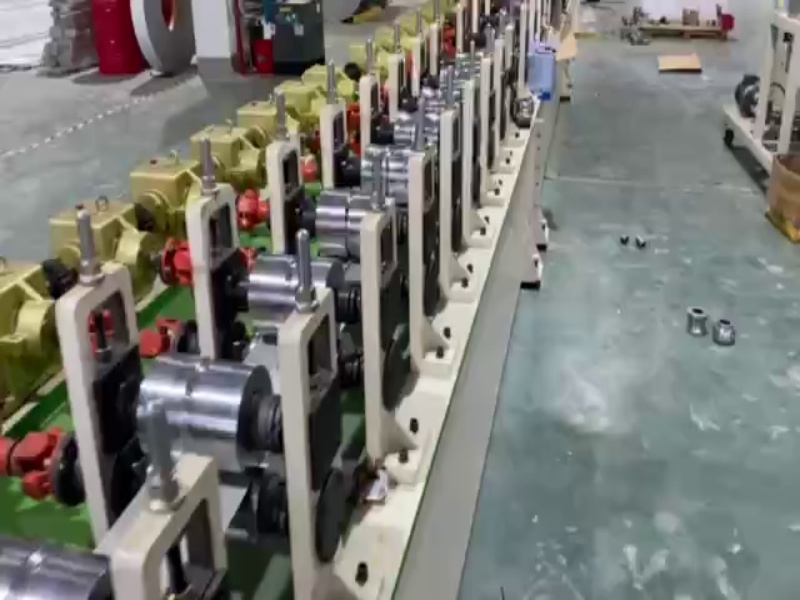

Main datas of forming machine

Forming stands: about 36 stands

Roller material GCr15: model steel, HRC50-54

Axial diameter: Φ40mm

Main axial material: No 45 steel HRB260-280

Driving part is gear box transmission

Frequency conversion decelerating Panasonic

PLC control: fix length control ±1mm (Panasonic)

Main components: Schneider

The precision of roller: less than ±0.5mm

Main roll forming machine motor: 380V, 50HZ, 11kw (or according to your requirements)

Machine basement material: H beam

5.Foaming machine:1 set (China top brand)

6.Pneumatic flying punching machine1 set

Material of cut: Cr12Mov   Quench: HRC58-62

7.Automatic punching device 1 set

8.Finished products table: 1 set

9.Working speed: 8-15m/min

10.dimensions of main forming machine

24000mm× 600mm × 900mm

11.Machine weight: about 7T
