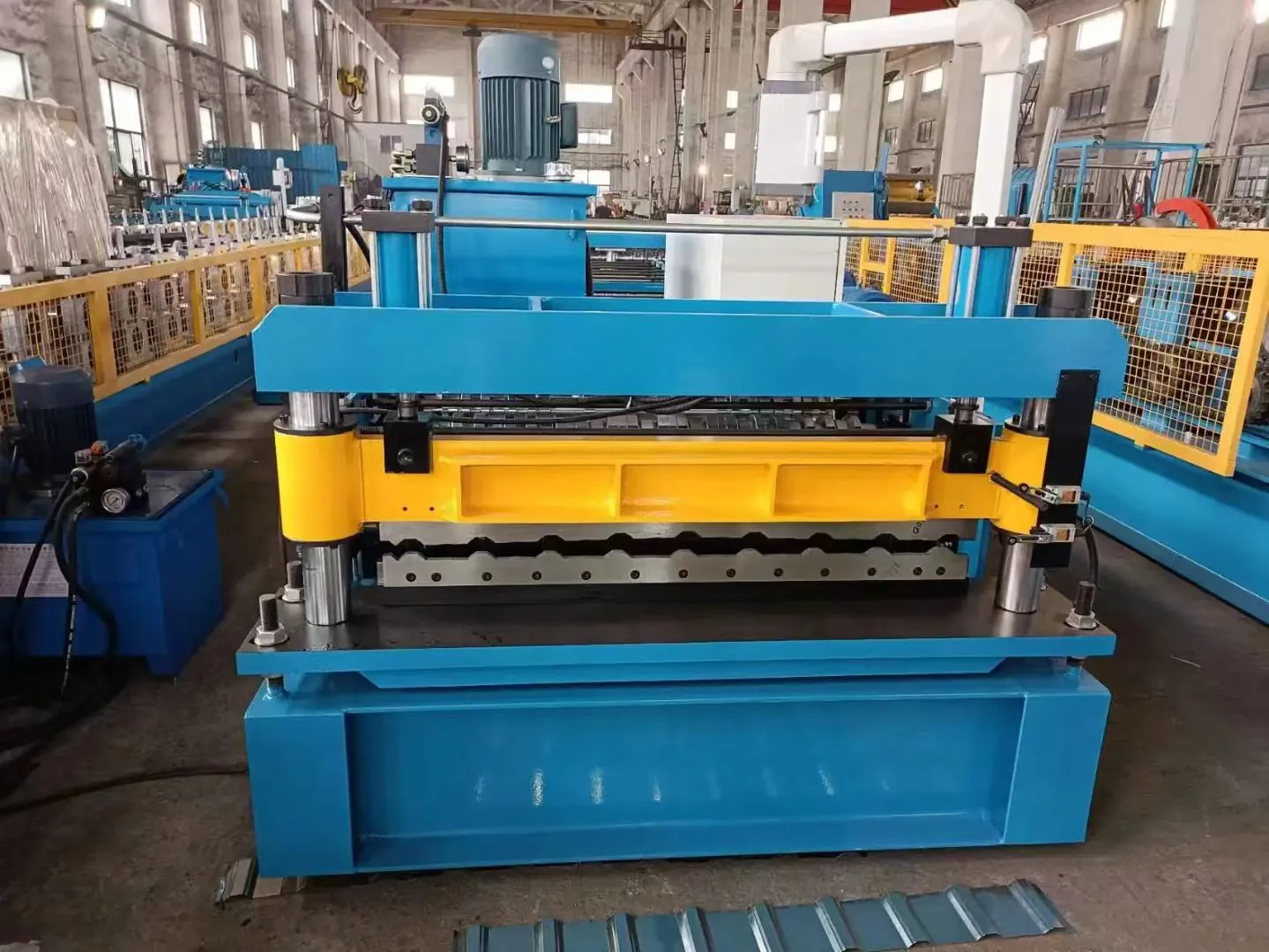

Popular Colorful Steel Roof 12-15m/min Speed R72-R101 Panel Roll Forming Machine
The R72- R101 roof sheet is a type of metal roofing profile commonly used in residential, commercial, and industrial roofing and wall cladding applications. The “R” in R72,R101 often denotes "Ribbed", and 72,101 usually refers to the effective coverage width of the sheet, typically 72mm,1010mm (or 1.01 meters).
This profile features trapezoidal ribs with alternating flat pans and raised sections, providing structural strength, weather resistance, and an aesthetically pleasing appearance.
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Machine List
| No | Name | Quantity |
| 1 | 5 ton passive decoiler | 1 set |
| 2 |
Main roll forming machine
|
1 set
|
| 3 |
Hydrulic station
|
1 set
|
| 4 |
Hydraulic cutting
|
1 set |
| 5 | Control box | 1 set |
| 6 |
Out table
|
2 sets |
Parameters Description
| Item No | Description | Offered specification |
| 1.0 | Roll forming Machine | |
| 1.1 | Rolling speed | 12-15m/min |
| 1.2 | Rolling thickness | 0.3mm-0.8mm |
| 1.3 | Raw material | Color painted coils, Aluminium, Zinc, Galvanized |
| 1.4 | Main Motor | 7.5KW |
| 1.5 | Effective width | 1080mm |
| 1.6 | Feeding Coil width | 914mm-1200mm |
| 1.7 | Roller stations | About 24 stations |
| 1.8 | Roller material | 45#forge steel, coated with chrome |
| 1.9 | Shaft diameter | Φ76mm |
| 1.10 | Transmission | By chain 1.2 inch |
| 1.11 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.12 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.13 | Tolerance | 10m+-1.5mm |
| 1.14 | Hydraulic station | 4kw |

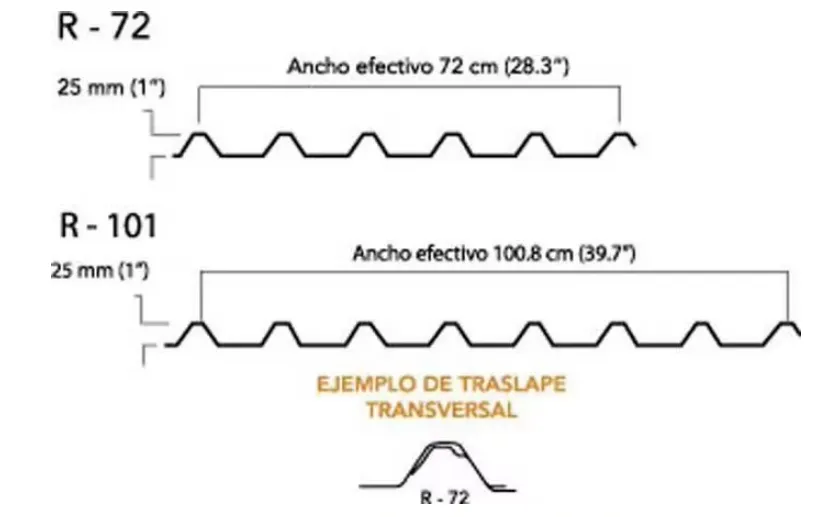

Profile Drawings
Application
