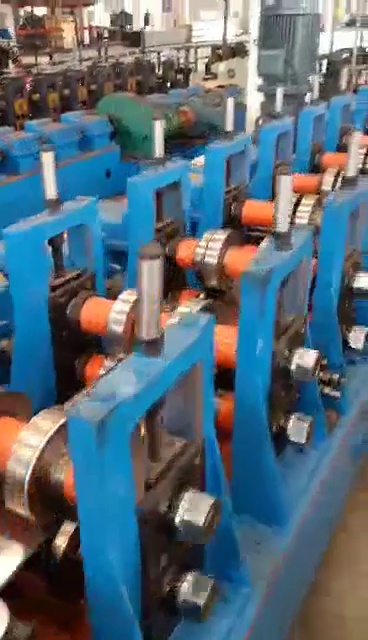

Pallet racking roll forming machine is widely used in producing upright post, box beam and step beam. we can do C and C profile joint type box beam, also can do step beam by welding.

This machine can do material thickness 1.2-2.0mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel.

The machine includes decoiler, Feeding and Leveling Device, main forming machine, hydraulic cutting device, joint fold machine to make C and C together, the Frequency converter controls the motor speed, the PLC system controls length and quantity automatically.

Our produced profile meet ISO, CE , UL standards, and our machine is applied to Warehouse, supermarket, industry or home.

1.Forming speed: 0~15M/Min

2. Product speed: 8~10M/min
3. Roller material: GCR12 bearing steel
4. Forming stations: 15 stations + 4 fold ed machine
5. Shaft diameter: 75mm
6. Forming structure: Guiding column,chrome-plated
7. Machine base frame: tube welding structure ,milling gauntry,punch holes automatic
8. Transmission type: worm gear box
9. Motor power of main machine: 7.5KW*2sets

10. Weight: about 8 tons

Optional Configuration For Your Choice

• Decolier
  Double Heads Decoiler



  A type decoiler



  Manual Decoiler



  Hydraulic Decoiler







• Structure
  Wall panel



  Torri Structure



  Cast Iron





• Drive
  Chain



  Gear



  Gearbox



  Couplings Gearbox







• Cooling
  Water cooling



  Fan cooling





• Punching
  Hydraulic punching



  Hydraulic press



  Punching press





• Cutting
  Hydraulic stop cutting



  Servo Following Cutting



  Stop Saw cutting



  Fly saw cutting







• Out table
  Manual table



  Simple pneumatic table



  Automatic stacker



  Magnetic stacker







• Other
  Cassette



  Plastic film



  Fleece devce



  Pre-cutting







Why Sussman Different

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery







Other suppliers



Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery



Other suppliers



Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.







Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.

Sussman Machinery

Other suppliers



Roof tile box

Sussman Machinery

Other suppliers



Hydraulic cutting

Sussman Machinery

Other suppliers





For supper market, for warehouse, for the small market, for the racks, the cooling rooms.
With the production advantage of the shelving & storage racks Roll Forming Machine, an extensive catalogue of shelving, light duty shelving, warehouse shelving and racking for the home and office are developed rapidly
