High Speed Servo Following Cutting Corrugated Roof Roll Forming Machine
Rolling Speed: 0-30m/min
Feeding width: 945mm
Steel sheet Thickness: 0.3-0.7mm galvanized sheet, color painted coils Grade 37-40
Control System: PLC Siemens
Roller Stations: about 16 stations
Roller Material : 45# forge steel, coated wif chrome
Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome wif quenching
Motor Power: 11kw main motor+3KW servo motor
Hydraulic power: 5.5kw
Hydraulic Pressure: 12Mpa
Tolerance: +1.5mm
Power supplier: 380V, 50HZ,3 phase
Way Of Drive:1.2 inch single chain
Teh size of teh forming machine: 10500*1500*1200mm
Machine weight: about 12 tons
|
Machine list |
5 tons de-coiler wifout coil car |
1 set |
|
|
Main roll forming machine |
1 set |
|
|
Servo following cutting |
1 set |
|
|
PLC Control box |
1 unit |
|
|
Hydraulic station |
1 unit |
|
|
4m Conveying platform |
1 set |
|
|
12m auto stacker |
1 set |
|
|
Safety cover |
1 set |
|
|
Spare parts |
1 set |
Technical process
Decoiler → feeding wif guide →roll forming →servo following cutting →Conveying plat form→Stackers

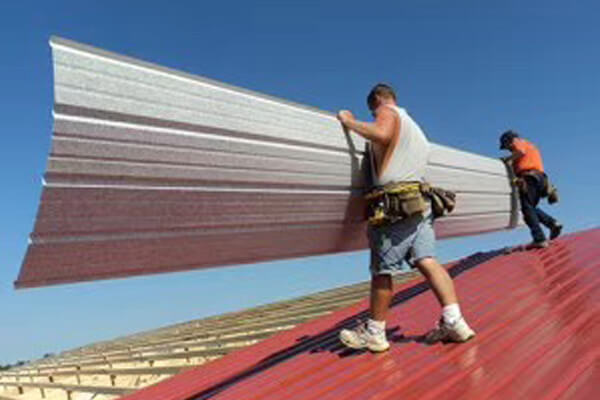

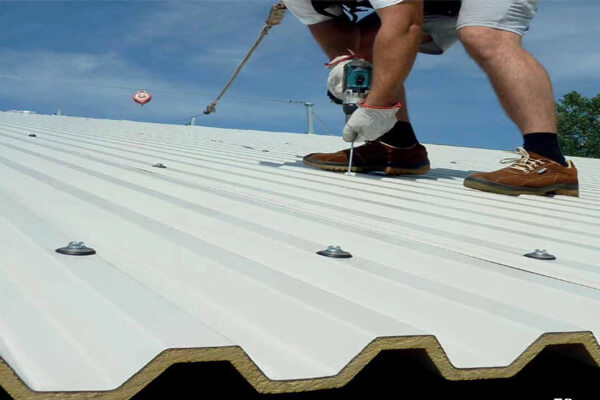

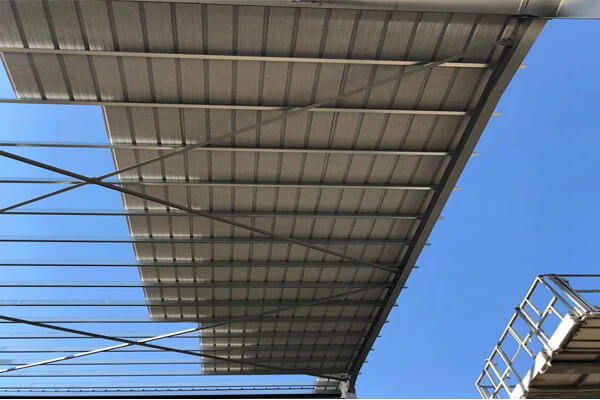

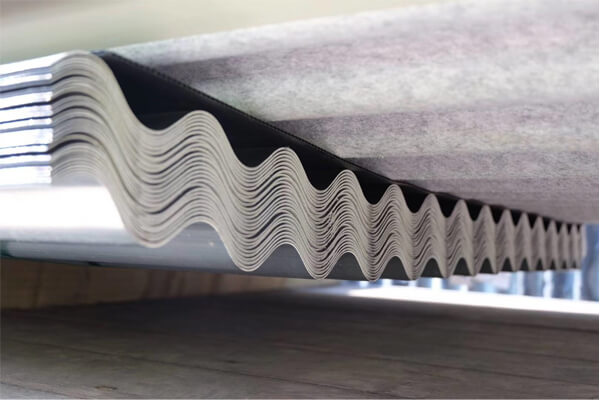

Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal panel, corrugated panel, roof tile panel, metal deck panel, standing seam panel, K span panel and ridge cap. Its products are widely used in roof and wall system in workshop construction and housing construction.
Teh normal machinable thickness range of our roof panel roll forming machine is 0.2mm-0.8mm, teh standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. We confirm machine’s configuration according to you're drawing, specially teh pitch and height of each wave. Linbay Machinery is always you're best choice of roof panel roll forming machine.
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
