Material Thickness | 1mm steel coils |
Profile width | 90mm |
Profile height | 45mm |
Rolling Speed | 10-15m/min |
Roller Stations | About 16 stations |

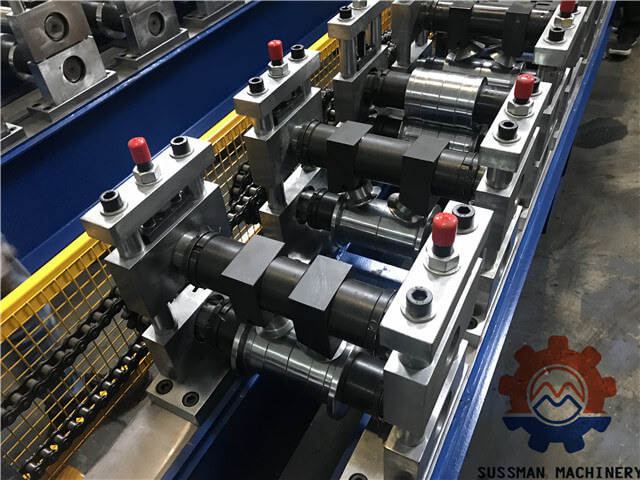

Roller Material | 45# Steel with quenching 60mm shaft |
Maim Motor Power | 5.5 kw |
Hydraulic cutting Power | 4 kw |
Material Of Cutting | CR12 with quench treatment |
Hardness | HRC58-62 |
Tolerance | +-1.5mm |
Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s require |
Control System |
|
Weight | About 2.5 tons |
Way Of Drive | 1 inch single chain |
Size of machine | Length 3500mm* Width 500mm* Height 800m |
Our display screen is touch screen, not text touch screen.

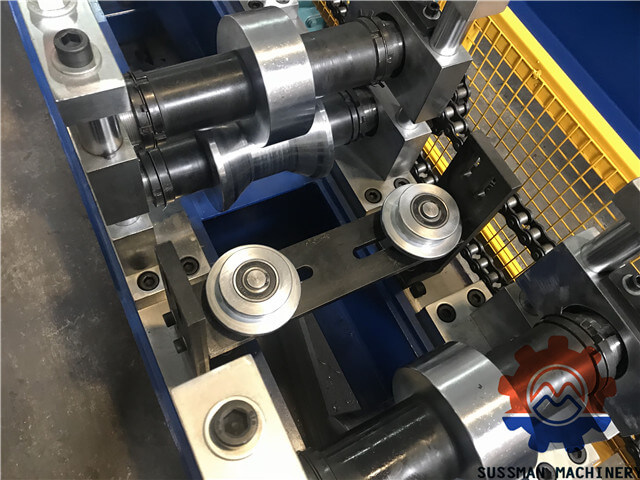

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

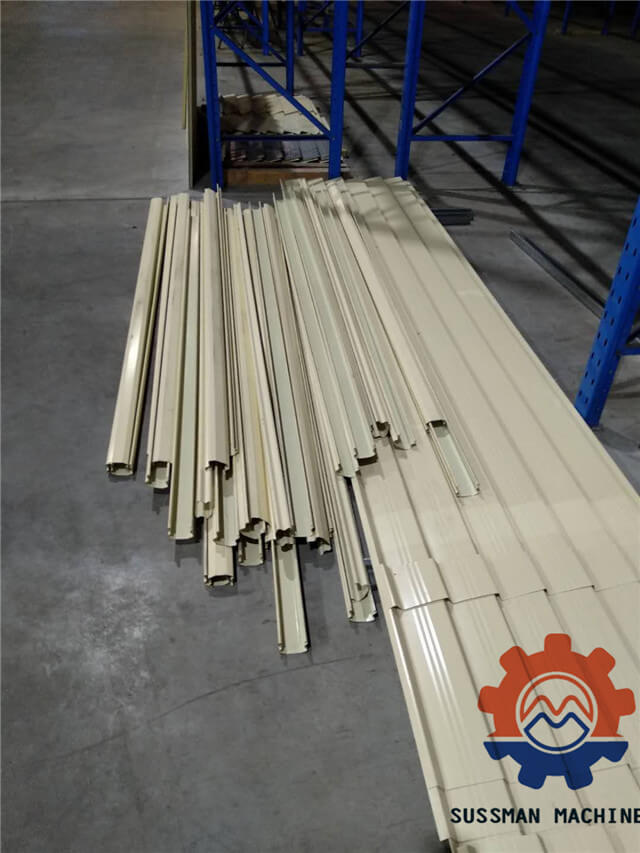

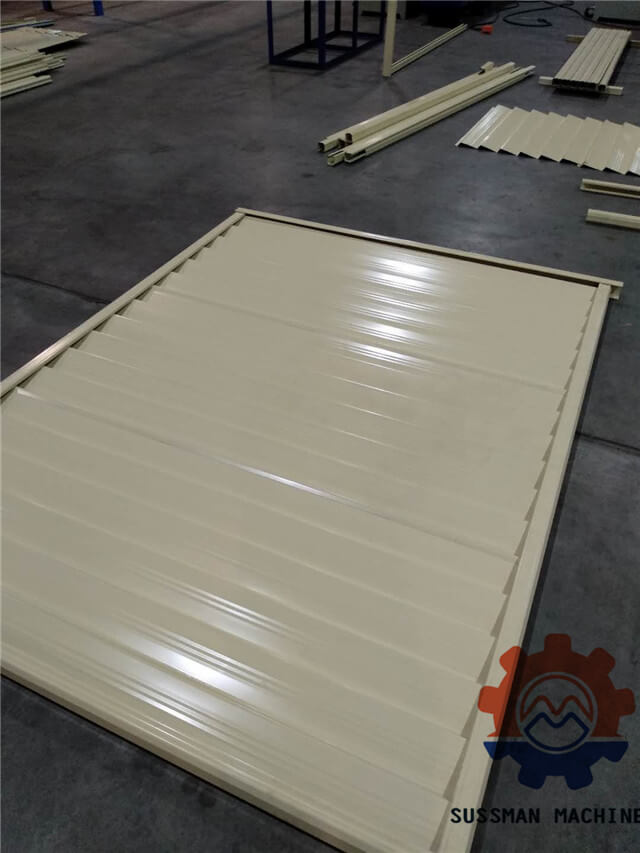

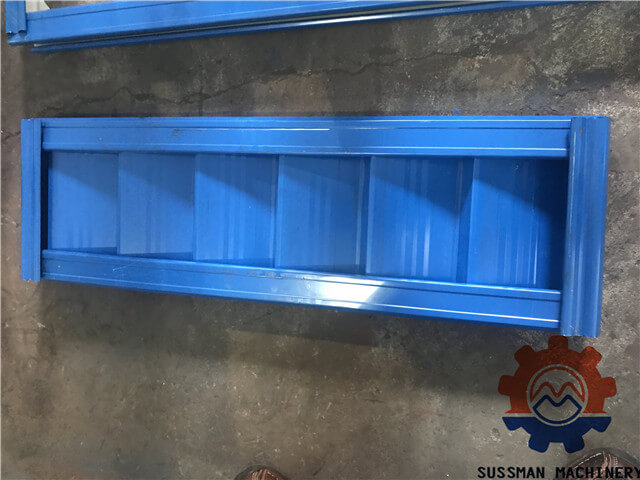

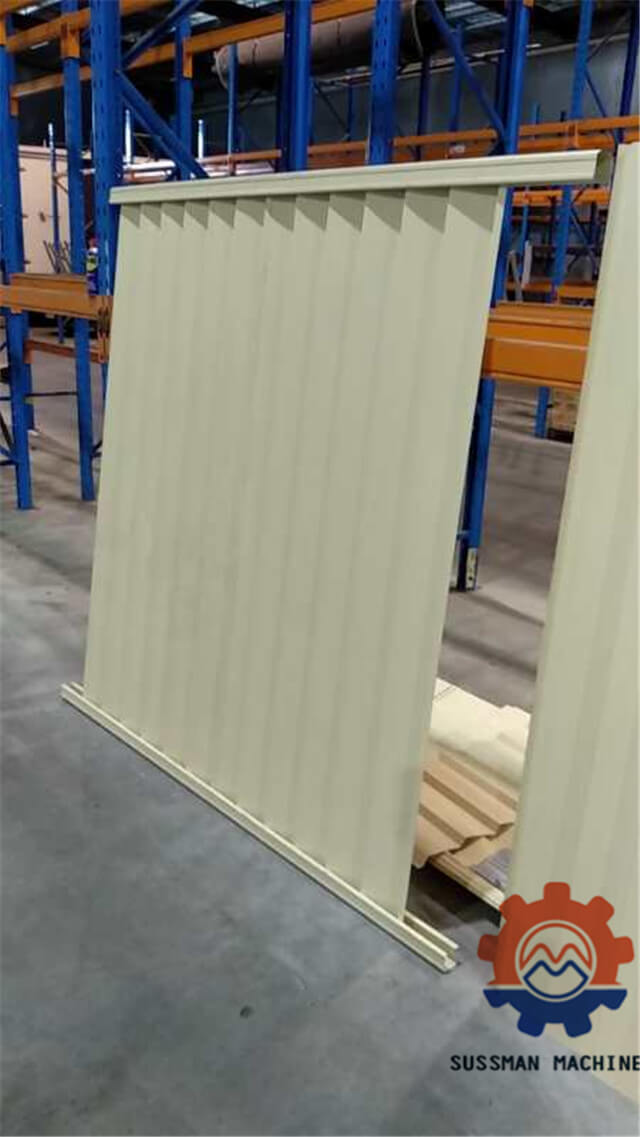

Fence post is widly used for the Villa Fence and the grass.
